User Guide: simpleRTK 4 Pro

Download User Guide in PDF

Product Overview

You can use simpleRTK 4 Pro as a standalone board by connecting it to your PC or tablet. Additionally, it can be used as an add-on board for your projects, such as an Arduino shield.

The main component of simpleRTK 4 Pro is mosaic-G5 P3 Triple Band (L1/L2/L5) RTK GNSS module.

Get started

Important: This is a traditional RTK module, so it is designed to work outdoors only. If you try to use it next to a window it will not work properly. Additionally, the module needs at least 10 seconds to initialize, so be patient.🙂

  1. Screw the GNSS antenna by hand to your receiver module antenna connector, do not use any tools.
  2. Connect the receiver to your PC via the USB port labelled as POWER+GPS.
  3. When you connect this product to a PC for the first time, the PC may not recognize it. You will only see a new Hard Disk in your computer. Open it and install the Septentrio driver.

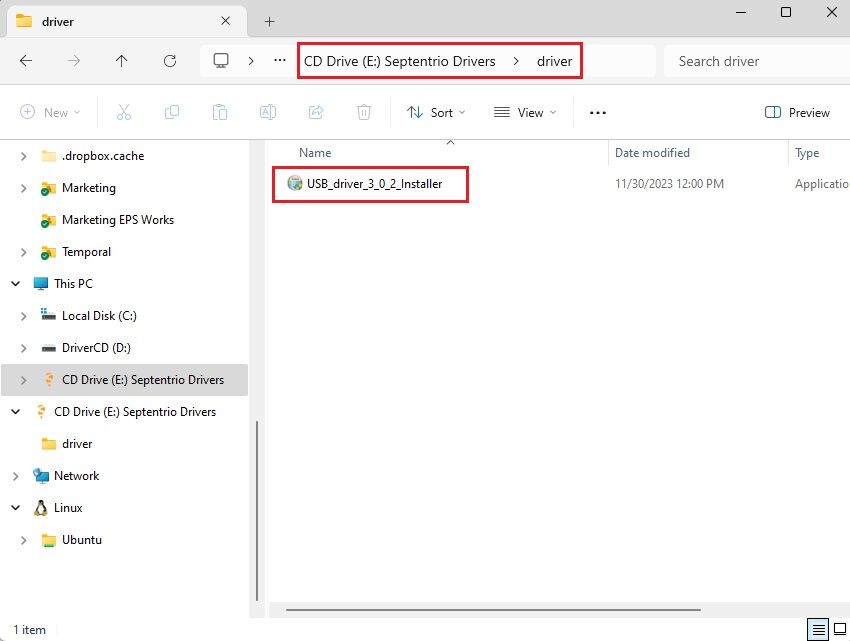

Hookup guide simpleRTK3B Septentrio Mosaic-X5 and Mosaic-H driver installer
  1. After installation is completed, disconnect and reconnect again, your PC will recognize the receiver. This only needs to be done once.
  2. Download the RxTools Software suite and install it for your operating system, we will use Microsoft Windows for this guide. This will install several applications in your computer. For this guide we will use only the RxControl app and its intuitive GUI which allows you to control your Septentrio Receiver, perform data logging and monitor the navigation solution.
Hookup guide simpleRTK4 Septentrio mosaic G5 P3 RxTools apps
  1. Open the RxControl app and create a new Serial Connection. Press Next.
Hookup guide simpleRTK4 Septentrio Mosaic-G5 P3 select connection
  1. Specify the computer Serial Port you want to use to connect to your mosaic-G5 receiver and enter a Connection Name. Press Finish.
Hookup guide simpleRTK4 Septentrio Mosaic-G5 P3 serial settings
  1. The RxControl GUI will open and the Status Bar at the bottom will display information about the connection status, with blinking lights confirming the connection with your receiver and data streaming from it.
Hookup guide simpleRTK4 Septentrio Mosaic-G5 P3 status bar

In order to achieve centimeter/millimeter level accuracy with our GNSS receivers, you need to have RTK corrections. The easiest way to get RTK corrections is to use an RTK correction service available in your country. We have prepared a list of RTK correction services in your country to help you get started.
Before you start:

  • You registered to the RTK correction service and received credentials (server address, port, user and password) to connect to it.
  • Your PC has internet connection in order to connect to NTRIP service.
  1. Go to main menu Communication -> RxControl NTRIP Forwarder…
Hookup guide simpleRTK4 Septentrio Mosaic-G5 P3 ntrip forwarder
  1. It will bring up the Ntrip Forwarder dialog. Press Edit.
Hookup guide simpleRTK4 Septentrio Mosaic-G5 P3 ntrip edit
  1. In the Ntrip Settings dialog fill in caster settings: Host, Port, user name and password of the NTRIP account. This data should be provided by the NTRIP service when you register your account. Press OK.
Hookup guide simpleRTK4 Septentrio Mosaic-G5 P3 ntrip credentials
  1. If the NTRIP account credentrials were entered correctly, the Stream drop-down list will become active and the RTK correction Mount Point can be selected. Press Start.
Hookup guide simpleRTK4 Septentrio Mosaic-G5 P3 ntrip stream start
  1. The Status field of the NTRIP Settings dialog should show a successfull connection and corrections data received.
Hookup guide simpleRTK4 Septentrio Mosaic-G5 P3 ntrip connection
  1. After a few minutes the PVT Mode will become RTK Float or Fixed, and you will have now centimeter/millimeter level accuracy in your receiver.
Hookup guide simpleRTK4 Septentrio Mosaic-G5 P3 pvt mode

Hardware

Pinout

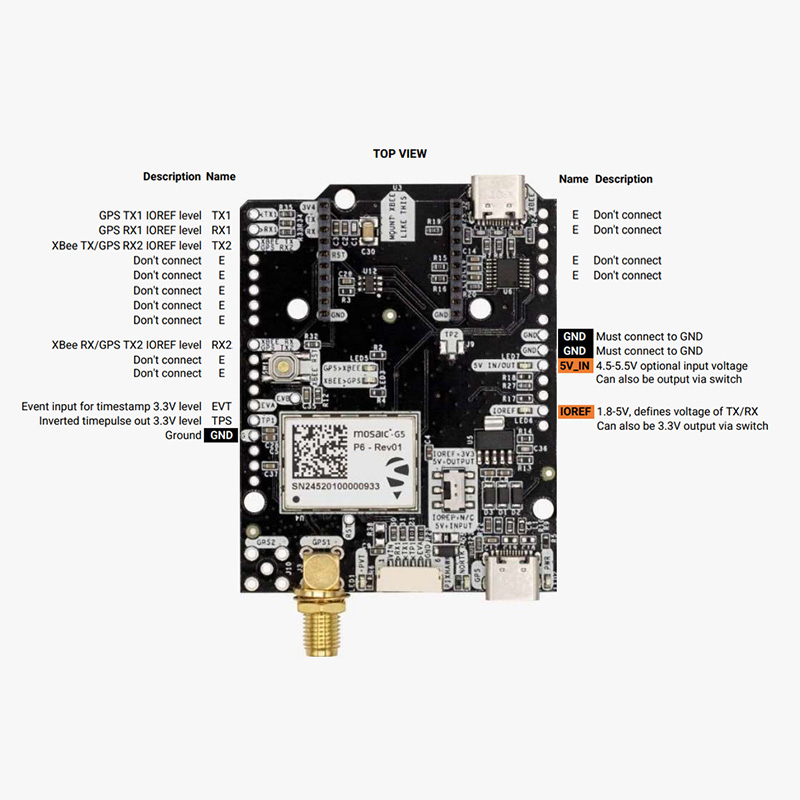

simpleRTK4 Pro R00 pinout

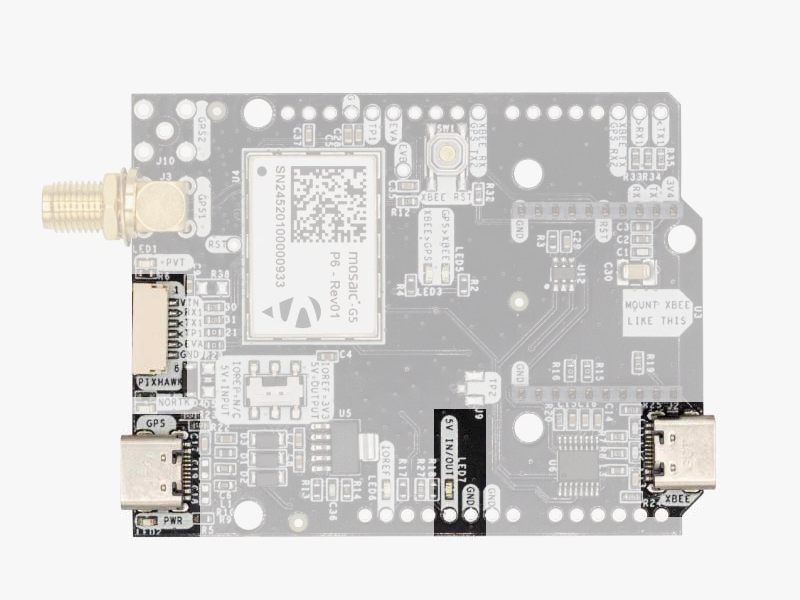

Power

Hookup guide mosaic-G5 P3 simpleRTK 4 Pro power sources

The simpleRTK 4 Pro can be powered from 4 different sources:

  • GPS USB port
  • XBEE USB port
  • Pixhawk connector
  • Arduino rail

Only 1 of them is needed to use the board, but you can also connect the 4 at the same time, there’s no risk.

The simpleRTK 4 Pro has a High Power (HP) XBee socket. You can connect any XBee accessory to it.
If you connect a device that requires high power to the XBee socket, you will have to make sure your power supply can provide this power.

  • Use only high quality USB-C cables, not longer than 1 meter.
  • If you connect simpleRTK 4 Pro through a USB hub to your PC/Tablet or your PC has low power USB ports, you will have to connect the second USB port directly to a wall plug or high power USB port.

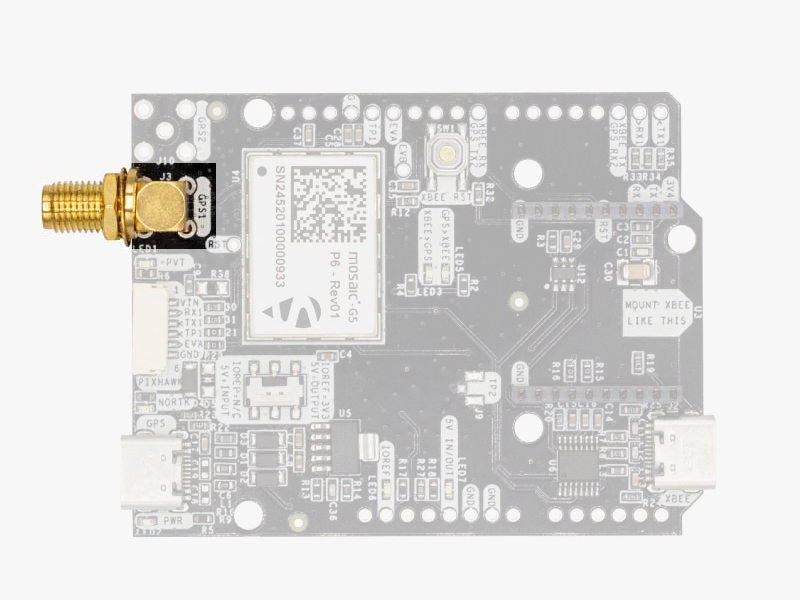

GNSS Antenna

Hookup Guide mosaic-G5 P3 simpleRTK 4 Pro antenna connector

The simpleRTK 4 Pro does not include, but requires a high-quality GPS/GNSS triple band (L1/L2/L5) antenna. In order to get the best performance we recommend using our Triple Band simpleANT3B series antenna.

The board is compatible with both active antennas (maximum output is 150mA @ 3.3V) and passive antennas.

Installation Notes:

  • Always connect the antenna before powering the board. This is very important as some board components could overheat if no antenna is connected.
  • Screw the antenna to the SMA connector by hand, never use any tools. You could break the connectors if too much force is applied.
  • Install the antenna with the clearest possible view of the sky. Use it outdoors and as far as possible from surrounding buildings, mountains, …
  • For best results, install the antenna on top of a metallic flat plate of at least 20cm side lenght (e.g. a car top surface).

For more information on how antenna installation impacts performance, follow our GPS/GNSS antenna installation guide and video.

Interfaces

simpleRTK 4 Pro board has a few interfaces that we will now explain in detail.

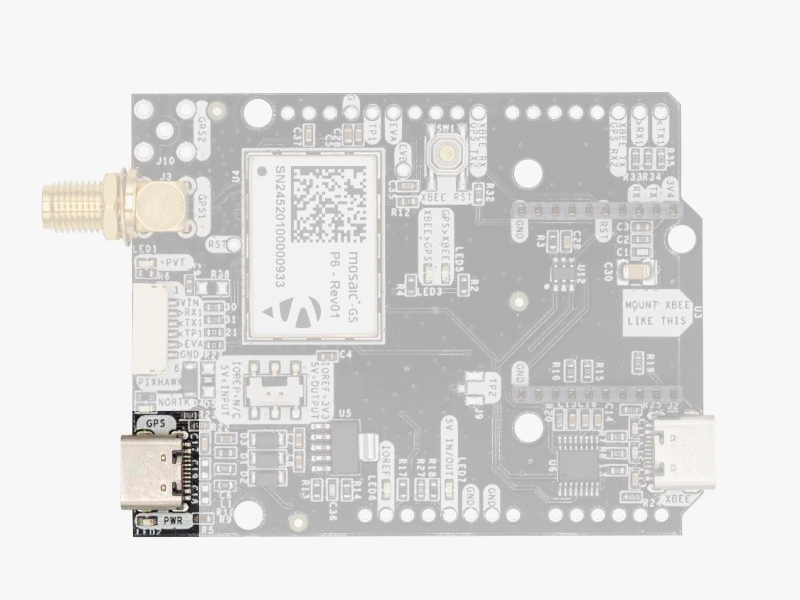

USB GPS
Hookup Guide mosaic-g5 p3 simpleRTK 4 Pro usb gps

This USB-C connector gives you access to the native USB from the Mosaic module. When you connect to the PC for the first time, you will only see a new Hard Disk in your computer. Open it and install the Septentrio drivers.

After installation, when you connect the receiver to the PC you will see 2 new COM ports, that you can use with your favourite terminal tool to read NMEA, or configure and monitor the receiver using RxTools.

windows device manager septentrio virtual usb com port 1 port 2
USB XBee

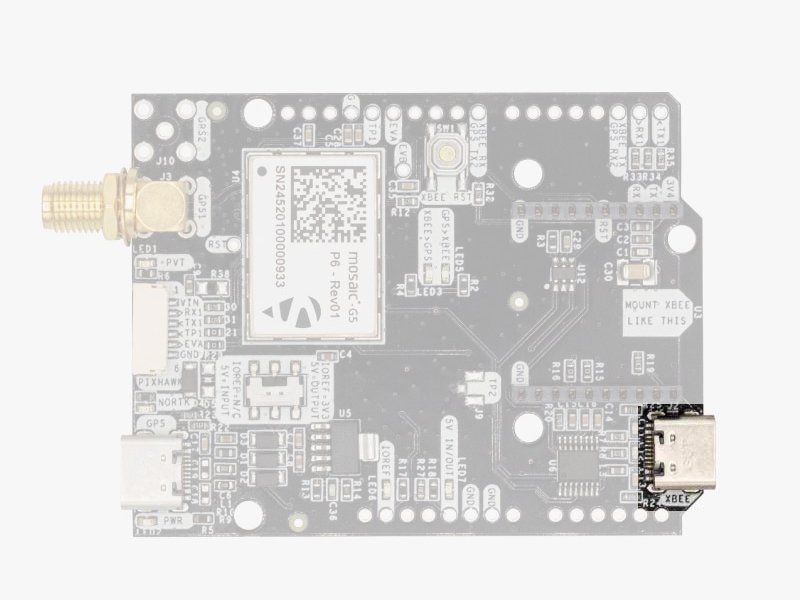

Hookup Guide mosaic-g5 p3 simpleRTK 4 Pro usb xbee

This USB-C connector gives you access to the UART of the XBEE radio (if you mount one), via an FTDI USB-to-UART converter.

We find very practical to use this connector to power the board, so you can then connect and disconnect the GPS USB as your wish, without removing the power to the board.
You can use any USB wall plug adapter you find at home.

To use this connector only as a power source, you don’t need any driver. You can use your PC, or connect to your USB wall adapter.

To use this connector to configure an XBee radio, you will need the VCP driver from FTDI: https://ftdichip.com/drivers/vcp-drivers/

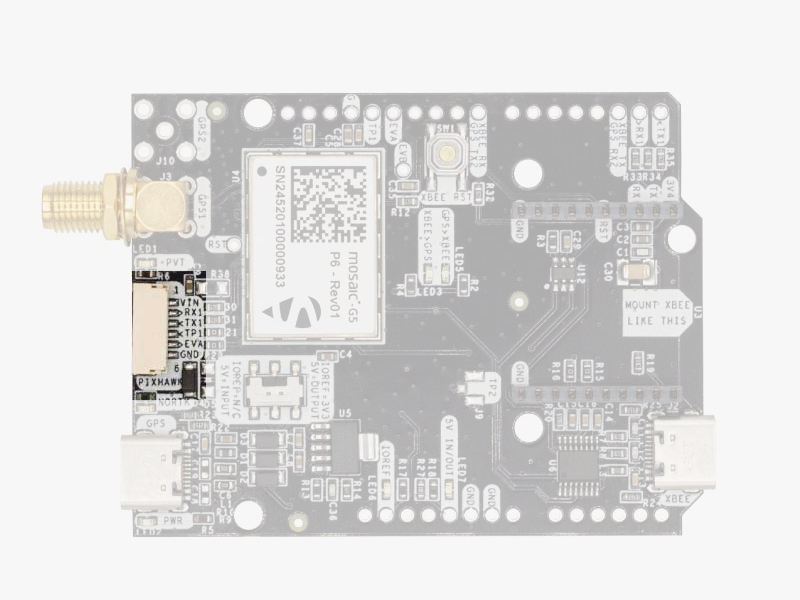

Pixhawk connector
Hookup Guide mosaic-g5 p3 simpleRTK 4 Pro pixhawk connector

This connector is a standard JST-GH that can be used to connect the simpleRTK 4 Pro to a Pixhawk autopilot.
You can also use this connector to power the board.

The Pixhawk JST-GH connector is following the Pixhawk standard:

  • 1: 5V_IN
  • 2: Mosaic COM3 RX (3.3V level)
  • 3: Mosaic COM3 TX (3.3V level)
  • 4: Timepulse output (3.3V level)
  • 5: Event input (3.3V level)
  • 6: GND

Please note that the board only includes GPS and doesn’t include magnetometer.

Arduino rails
Hookup Guide mosaic-g5 p3 simpleRTK 4 Pro arduino rails

simpleRTK 4 Pro has optional rails to connect to other arduino UNO compatible devices.

  • GND: ground is available in the standard arduino pins. You should always connect this line to your other board.
  • 5V IN/OUT:
    • When the LED next to this pin is OFF, can power simpleRTK 4 Pro from this pin.
      For example, just plug it on top of an Arduino UNO board, and simpleRTK3B Pro will turn ON. (check if your arduino can power 300mA @ 5V shields).
    • Alternatively, you can now use simpleRTK 4 Pro to power other shields.
      Just turn ON the switch “5V=OUTPUT” and simpleRTK 4 Pro board will output 5V at this pin.
  • IOREF. This pins affect the functionality of TX1,RX1,TX2,RX2 pins.
    • When plugging simpleRTK3B Pro board on top of Arduino UNO or Raspberry Pi, this pin is used to automatically defined the voltage level of the communication pins (TX1,RX1,TX2,RX2).
    • When wiring your own cables to board,  this is an input that will define the voltage levels of the pins.
      If you input 1.8V, the next pins will be 1.8V level. It supports from 1.2V to 5.5V.
    • If you want to connect wires to the listed pins and 3.3V is OK for you, you just need to enable the switch “IOREF=3.3V”
  • TX1,RX1,TX2,RX2: These pins work with the voltage level defined by IOREF.
    • TX1: Mosaic COM1 TX
    • RX1: Mosaic COM1 RX
    • TX2: XBee UART TX (this pin is also connected to Mosaic COM2 RX).
    • RX2: XBee UART RX (this pin is also connected to Mosaic COM2 TX).

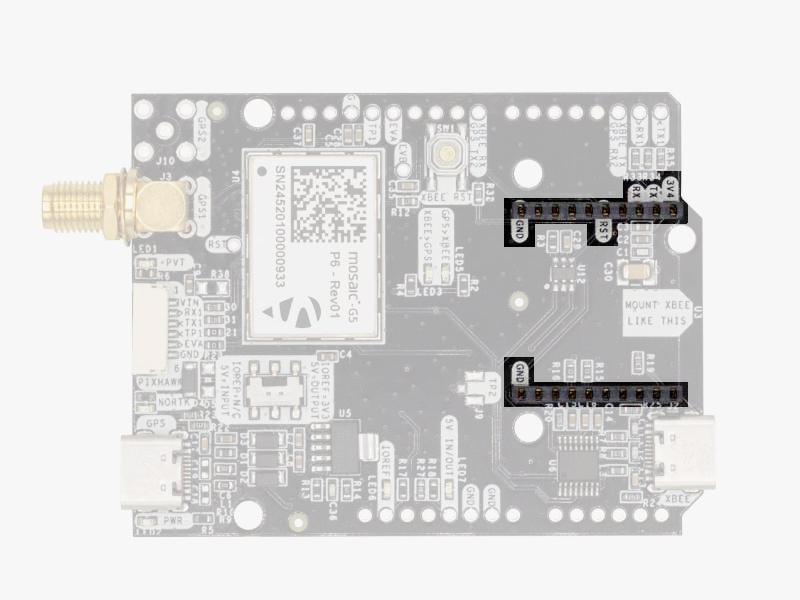

High Power (HP) XBee socket
Hookup Guide mosaic-g5 p3 simpleRTK 4 Pro hp xbee
The simpleRTK 4 Pro has a High Power (HP) XBee socket. You can use this socket to connect an XBee compatible radio. The following pins are available:
  • VCC, which is a 3.3V output with maximum current 1A constant and peak 1.5A.
  • XBee UART RX, at 3.3V level
  • XBee UART TX, at 3.3V level
  • GND
The XBee socket is connected to Mosaic COM2.

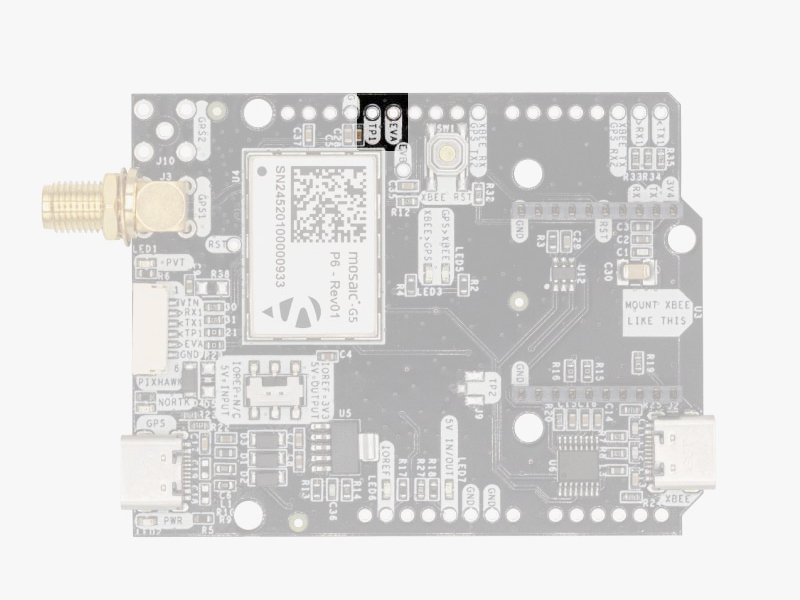

Special function pins
Hookup Guide mosaic-g5 p3 simpleRTK 4 Pro special pins
In addition to above, there’s also a few additional pins available for the most advanced users. If you are going to use simpleRTK 4 Pro connected on top of an Arduino or Raspberry Pi and you don’t use any of these pins, it’s recommended to not connect the pins: you can cut the header in this pins to avoid the connection, and prevent unexpected behaviors.
  • Timepulse (TPS): 3.3V configuration time pulse output. The logic of this pin is inverted with the web interface. If the web interface you select HIGH, the pin will output LOW.
  • External Event (EVT): time synchronization input, maximum voltage 3.6V. This input is filtered to avoid glitches.
Remember that you can add a second XBee socket to your board with the Shield for Second XBee socket.

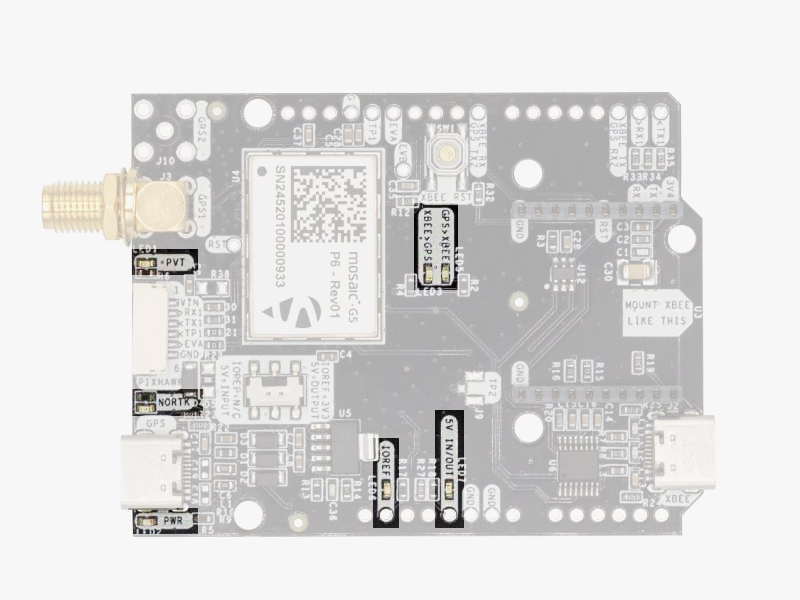

LEDs
Hookup Guide mosaic-g5 p3 simpleRTK 4 Pro leds

The board includes 7 status LEDs, which indicate that:

  • POWER: the simpleRTK 4 Pro board has power.
  • PVT: LED lights when it was possible to calculate a position from the available satellite visibility.
  • NORTK: ON when no RTK, blinking when receiving correction data, OFF when devices is in RTK FIXED mode.
  • XBEE>GPS: The XBEE radio is receiving data over the air and sending it to the Mosaic.
  • GPS>XBEE: The Mosaic is outputting data that the XBEE radio is receiving and sending over the air.
  • 5V IN/OUT: Will indicate you if there is voltage on that pin.
  • IOREF: Will indicate you if the IOREF pin is enabled, which activates the UARTs on arduino rails.

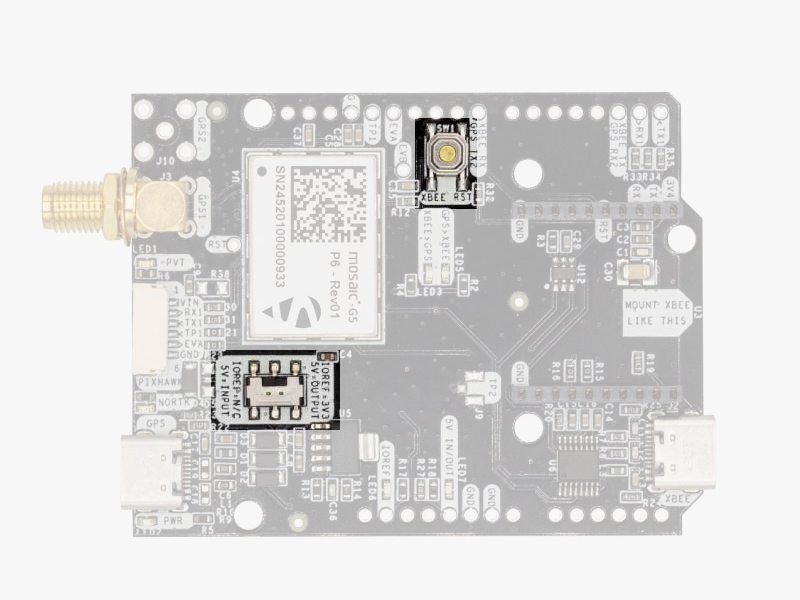

Buttons and switches
Hookup Guide mosaic-g5 p3 simpleRTK 4 Pro buttons
There’s only one button: XBee Reset, and the good news is that you probably will not have to use it. This button is used to program the XBee radio if you want to update firmware, etc. You will find also 1 switch under the XBee socket: it let you enable IOREF with 3.3V and 5V arduino pin as output so the board can power accessories like Shield for Second XBee socket. At the same time this switch will also enable the arduino rail signals at 3.3V. Check the “Arduino Rails” section above to read more details about this.
If you need additional information, such as upgrading firmware, configuring the receiver as a base or rover please refer to the Septentrio Mosaic-G5 Configuration Page.

Accessories

You can add any of these features (and more) with our XBee plugins:

How to add plugin

  1. To connect the communication plugin to the XBee socket, simply insert it into the XBee connector on the board.
hookup guide simpleRTK4-Optimum addplugin
  1. To use the plugin, go to the How to configure Septentrio mosaic-G5 P3 and P3H page and load the configuration file Send 1Hz full NMEA to Plugin onto your receiver following the instructions.
  1. The board supports a second XBee plugin. You can use two communication plugins at the same time by adding a Shield for Second Plugin Socket. To attach it, you will need the Expansion Headers Kit (not soldered) on the receiver, or order Expansion Headers Kit (soldered) if you want us to solder it for you.
Hookup guide mosaic-g5 p3 simplertk 4 pro 2nd xbee plugin
