Calibrated Survey GNSS Multiband antenna (IP67)

SKU: AS-ANT2B-CAL-L1L2-15SMA-00

149,00

Availability: In stock

This product comes with 2 years worldwide warranty

Includes:
– Calibrated Survey Dualband external GNSS antenna
– 1.5m pigtail cable with TNC to SMA connector

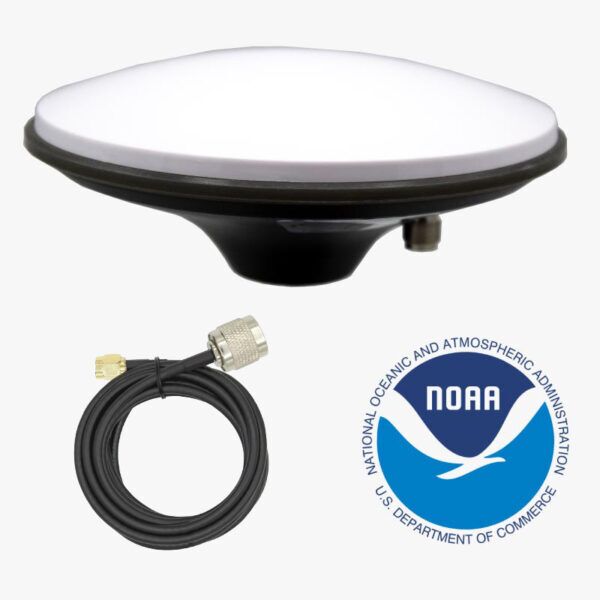

Survey grade dual band (L1, L2/E5b/B2I) active GNSS antenna, calibrated by NGS, with TNC connector and 1.5m rugged cable terminated with SMA male. Ideal for surveying applications including PPK and post-processing. Also compatible with high end receivers from Novatel, Trimble, Leica, Topcon and others.

Good to know:
– Compatible with all simpleRTK2B boards as well as any other multiband GNSS receiver in the market.
– Shockproof gel ring at the perimeter of the antenna to minimize damage in case of fall
– Antenna calibration files can be downloaded from NGS website (Manufacturer: ArduSimple, Model: AS-ANT2B-CAL): https://www.ngs.noaa.gov/ANTCAL/index.xhtml#

AS-ANT2B-CAL-L1L2-15SMA-00

Specifications

2B Survey Calibrated antenna
Antenna element
  • Supported positioning signal bands:
    • GPS: L1, L2
    • GLONASS: G1, G2
    • BeiDou: B1, B2
    • Galileo: E1, E5b
    • QZSS: L1, L2
    • SBAS: WAAS, EGNOS, MSAS and GAGAN
  • Polarization: RHCP
  • Peak gain: 5dBi
  • Axial Ratio @ zenith: <3dB
  • Azimuth Coverage: 360 degrees
  • Impedance: 50 ohm
  • Phase center error: ±1mm
  • Calibration File available
Electrical
  • Supply voltage: 3-12V
  • Typical supply current @ 3V: 45mA
  • Average LNA gain: 40dB
  • Maximum Noise Figure: 1.5dB
  • Maximum VSWR: 2
Mechanical
  • Maximum length: 152mm
  • Weight: 400g
  • Mounting style: Magnetic base (requires accessory) or 5/8” x 11TPI thread
  • Connector: TNC female
  • Cable length: Includes 1.5 meter cable terminated in SMA male
Environmental
  • Operating Temperature: -40 to +85°C
  • Storage Temperature: -40 to +85°C
  • IP Rating: IP67 (excluding air vent in screw hole, which can be sealed when installed)
  • RoHS: Yes
