simpleRTK3B - Basic Starter Kit

SKU: AS-STARTKIT-BASIC3B-L125-NH-00

653,00

Availability: In stock

This product comes with 2 years worldwide warranty

This product has quantity discounts available:
Units Price per unit
<50
653,00
>=50 Contact us for special pricing
>500 Contact us for special pricing

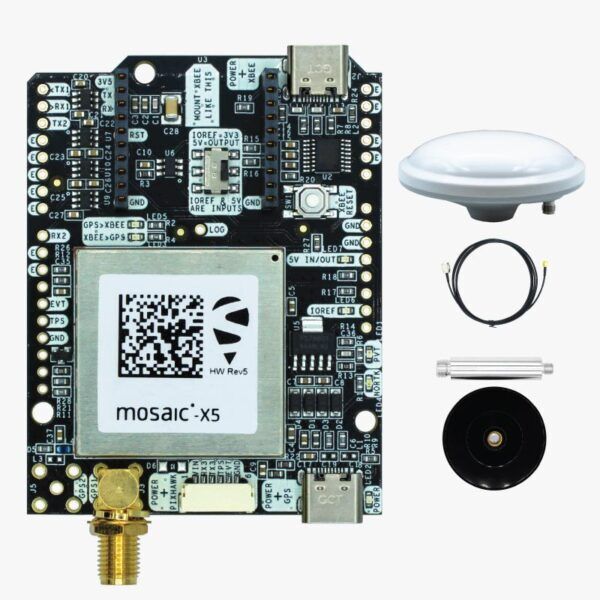

Includes:
– 1 simpleRTK3B Pro board (Mosaic-X5)
– 1 Budget Survey Tripleband GNSS Antenna (IP66) including 2.5m cable
– 1 Magnetic Stand for Survey GNSS Antenna

This standalone set of triple band board based on Septentrio Mosaic-X5 + ArduSimple Budget Survey Antenna + Magnetic Stand is everything that you need to achieve millimeter level accuracy and evaluate triband (L1/L2/L5) RTK GNSS technology at the most affordable cost.

To achieve millimeter level accuracy, you will need to connect it to a base station or to an RTK correction service (NTRIP or PointPerfect). You can use it with your smartphone, tablet, laptop, PC or embedded platform.

The kit can be configured as a base or a rover, supports multi-rover. It is fully compatible with Arduino, STM32 Nucleo, Raspberry Pi, Nvidia Jetson, ROS and Pixhawk / Ardupilot.

More details are available in the Specifications and Documentation tabs.

Good to know:
– This product is compatible but doesn’t include radio, which might be useful connect to another base.
– This product is recommended if you want to evaluate Septentrio Mosaic-X5.

AS-STARTKIT-BASIC3B-L125-NH-00

Specifications

Mosaic-X5 features
  • Millimeter level precision
    1. <1cm with a base station up to 35km
    2. <1cm with NTRIP up to 35km
    3. <1.2m in standalone mode
    4. <0.6m standalone with SBAS coverage
  • Update rate
    1. Default: 1Hz
    2. With maximum performance: up to 100Hz
  • Multi band: L1, L2 and L5 support, 448 hardware channels
  • Multifrequency and Multiconstellation:
    1. GPS: L1C/A L1PY L2C L2P L5
    2. GLONASS: L1CA L2CA L2P L3 CDMA
    3. Galileo: E1 E5a E5b E5 AltBloc E6
    4. BeiDou: B1I B1C B2a B2I B3
    5. QZSS:  L1C/A L2C L5
    6. Navic: L5
    7. SBAS: WAAS, EGNOS, MSAS, GAGAN, SDCM (L1 L5)
  • Start-up times:
    1. Cold start: <45s
    2. Warm start: <20s
    3. Re-acquisition: 1s
  • Protocols:
    1. Septentrio Binary Format (SBF)
    2. NMEA 0183, v2.3, v3.03, v4.0
    3. RINEX v2.x, v3.x
    4. RTCM v2.x, v3.x (MSM included)
    5. CMR v2.0 (out/in), CMR+ (input only)
  • Interfaces (check user guide to verify which are available):
    • USB
    • UART
    • XBee
    • Timepulse
    • Event
  • Base and Rover functionality
  • Operating temperature Range: -40 to +85deg
  • Certification: CE, WEEE, ISO 9001-2015
  • Documentation: RED, RoHS
