Radio module eXtra Long Range (XLR)

SKU RAD005 Category Tags , , ,

USD $177.10

Clear

This product comes with 2 years worldwide warranty

This interactive table will help you choose the right LR/XLR radio options, depending on the frequencies available in your country.

Choose your country/region:

Country/Region Free frequencies LR radio options XLR radio options
- - - - - -

After checking the frequencies in the interactive table don't forget to pick manually the preferred LR/XLR radio options in the above select box!

*We have created this table on a best effort basis but we are not responsible of possible mistakes or changes in spectrum legislation.
You can contact us if you find any error.

Includes:
– 1 x eXtra Long Range radio module
This product comes without antenna, remember to add our dipole antenna or vehicle mount antenna to the cart.

SKU RAD005 Category Tags , , ,

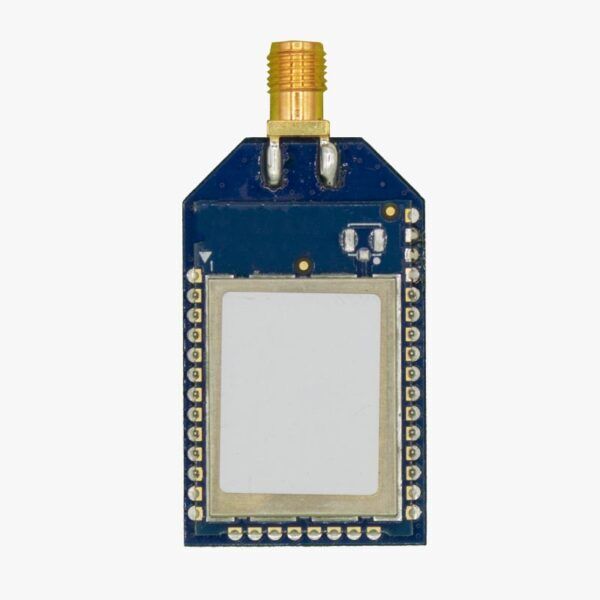

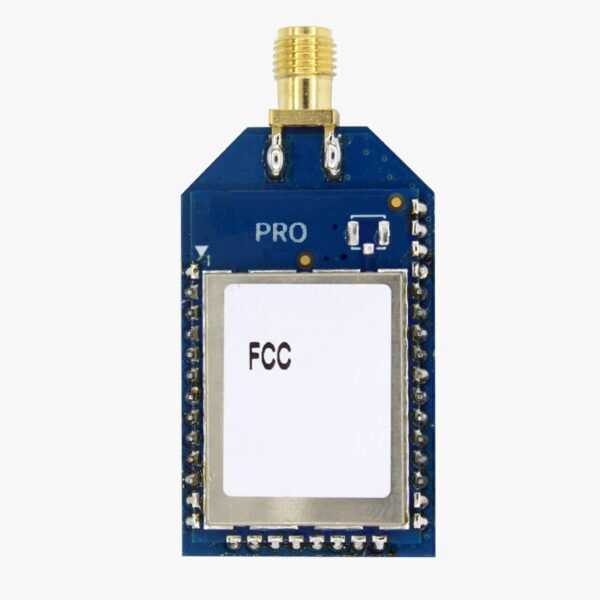

The eXtra Long Range version of our Radio Module. Based on Digi XBee PRO SX series, but on through hole format and with SMA connector. With a configuration optimized for sending RTK corrections over the air.

RTK technology works when base and rover are within 20km from each other. If you want to make use of all this range, this is your radio module.

With this radio module you will be able to send RTK corrections between 50 and 60 km in both point-to-point and point-to-multipoint configurations. This distance will depend on the region of use, subject to local regulations.

Don’t forget to add in the shopping cart our Configuration Service if you want to receive them with a special pre-configuration.

Good to know:
– Compatible with all simpleRTK (V1 supports a maximum 100mW output power, Pro supports a maximum of 1W output power).
– Not compatible with simpleRTK2Blite
– The radio is sent pre-configured at 115’200bps and will connect automatically to other XLR radios from the same variant.
– If you have an LR kit already, just remove the LR radios, plug the XLR radios, and you are good to go!
– The radio is sent pre-configured at 100mW output power. Can be increased by user to 500mW, and up to 1W if mounted on a suitable XBee socket. Contact us if you have questions.
– The radio comes without antenna, remember to add our dipole antenna or vehicle mount antenna to the cart.

Specifications

Documentation

Related tutorials:
  • Visual vs. RF Line-of-Sight - What is the difference?
  • Did you know... with the LR kit you can connect to the base station and see real time the rover's position?
  • Did you know... you can add multiple rovers to our LR kit?
  • You may also need…
