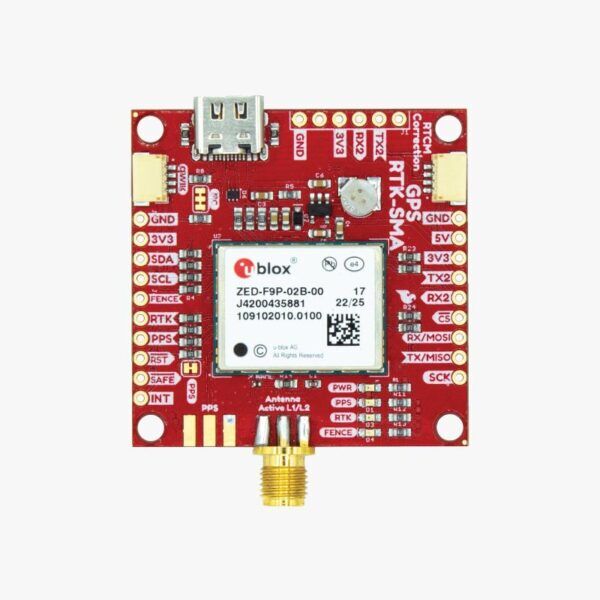

GPS-RTK-SMA top
GPS-RTK-SMA dimensions
GPS-RTK-SMA bottom
GPS-RTK-SMA top
GPS-RTK-SMA dimensions
GPS-RTK-SMA bottom

GPS-RTK-SMA

SKU: AS-OPENHW-GPSRTKSMA-00

Original price was: 209,00€.Current price is: 199,00€.

Availability: In stock

This product comes with 2 years worldwide warranty

This product has quantity discounts available:
Units Price per unit
<50
199,00
>=50 Contact us for special pricing
>500 Contact us for special pricing

Includes:
– 1 SparkFun GPS-RTK-SMA Breakout – ZED-F9P (Qwiic) manufactured by ArduSimple.

ArduSimple manufactures the SparkFun GPS-RTK-SMA Breakout – ZED-F9P (Qwiic) GNSS receiver following the Open Source Hardware (OSHW) guidelines.
ArduSimple has not any relation with SparkFun, in case of any issues, warranty is provided by ArduSimple.

Check out GPS-RTK-SMA page to learn more.

Good to know:
– This product is manufactured and sold by ArduSimple, designed by Sparkfun.
– This product is the same as part number GPS-16481.
– You are allowed to sell your version of this board (as is or with modifications)
– This product is compatible but doesn’t include multiband GNSS antenna, which is necessary to use the product. The module will not give good performance with a standard GNSS antenna, requires a multiband one.

AS-OPENHW-GPSRTKSMA-00 ASB-OPENHW-GPSRTKSMA-00

Specifications

ZED-F9P features
  • Centimeter level precision
    • <1cm with a base station up to 35km
    • <1cm with NTRIP up to 35km
    • <4cm with SSR corrections
    • <1.5m in standalone mode
    • <0.9m standalone with SBAS coverage
  • Update rate
    • Default: 1Hz
    • With maximum performance: up to 10Hz
    • With reduced performance: up to 20Hz
  • Multi band: L1, L2 and E5b support
  • Multifrequency and Multiconstellation:
    • GPS: L1C/A L2C
    • GLONASS: L1OF L2OF
    • Galileo: E1-B/C E5b
    • BeiDou: B1I B2I
    • QZSS:  L1C/A L2C
    • SBAS: WAAS, EGNOS, MSAS, GAGAN and SouthPAN
  • Start-up times:
    • First position fix: 25 seconds (cold), 2 seconds (hot)
    • First RTK fix: 35 seconds (cold)
  • RAW data output in UBX format
  • Base and Rover functionality
  • Operating temperature Range: -40 to +85deg
  • Documentation: RED, RoHS

Documentation

Start here:Certifications:
