Pixhawk cable set

SKU AS-CAB-PIXHAWKSET-00 Category Tags , ,

USD $14.30

Availability: In stock

This product comes with 2 years worldwide warranty

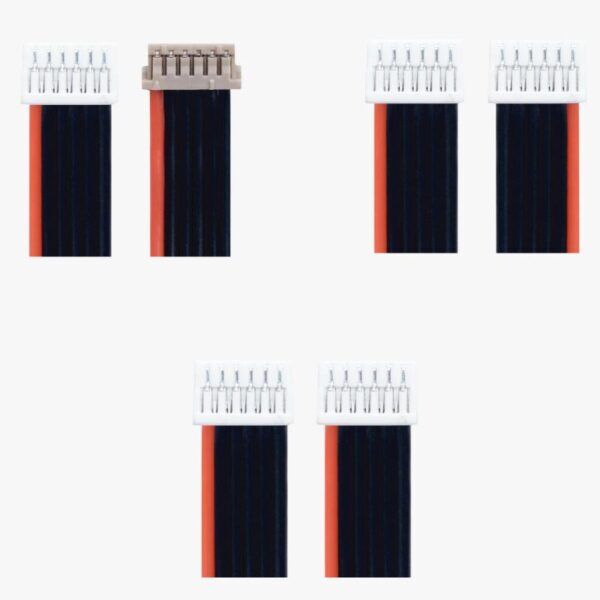

Includes:

– 1 x 15cm cable with 6 pin JST-GH + 6 pin DF13 male connectors compatible with Pixhawk 1 autopilot
– 1 x 15cm cable with 6 pin JST-GH male connectors on both ends compatible with Pixhawk 2.1 (Cube) autopilot
– 1 x 15cm cable with 6 pin JST-GH male connectors on both ends compatible with Pixhawk 4 autopilot

Cable to connect simpleRTK2B and simpleRTK2Blite to the most common Pixhawk autopilots.
The cable length is 15cm and has JST-GH and DF13 6 pin male connectors.

This kit contains 3 different cables and is compatible (at least) with the following Pixhawk models:

Be aware that some clones may have different connectors, we can only guarantee compatibility with the original Pixhawk models.
The red wire may NOT be pin #1 (+Ve) – please carefully check the pin numbers printed on the PCB and do not rely on wire colors.

Documentation

Related tutorials:
  • ArduPilot simpleRTK2B+heading configuration + external corrections
  • Send RTK base station corrections to ArduPilot with Mission Planner, QGroundControl and MAVProxy
  • Send NTRIP corrections to ArduPilot with MissionPlanner, QGroundControl and MAVProxy
  • ArduPilot simpleRTK2B+heading configuration
  • ArduPilot simpleRTK3B Heading configuration
