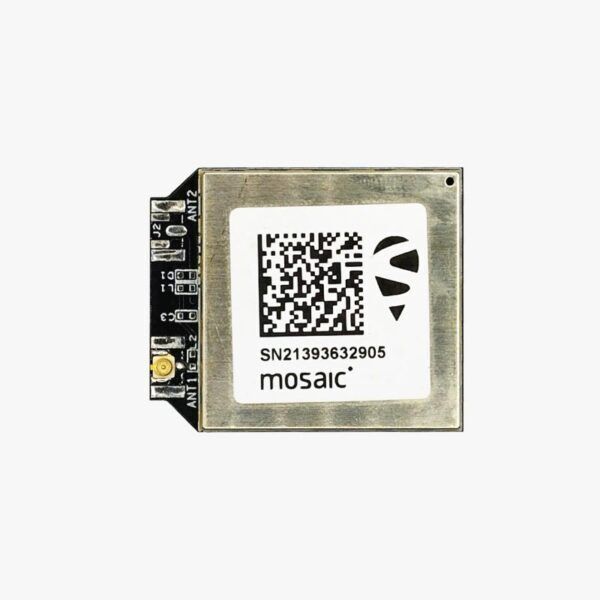

mosaicX5 micro top
simpleRTK3B Micro dimensions
pinout-simpleRTK3B_Micro-R00
mosaicX5 micro persp
mosaicX5 micro bottom
simpleRTK3B Micro Septentrio Mosaic-H-SMA
simpleRTK3B Micro Septentrio MosaicX5-SMA
simpleRTK3B Micro Septentrio Mosaic-H-ufl
mosaicX5 micro top
simpleRTK3B Micro dimensions
pinout-simpleRTK3B_Micro-R00
mosaicX5 micro persp
mosaicX5 micro bottom
simpleRTK3B Micro Septentrio Mosaic-H-SMA
simpleRTK3B Micro Septentrio MosaicX5-SMA
simpleRTK3B Micro Septentrio Mosaic-H-ufl

simpleRTK3B Micro Septentrio

SKU: AS-RTK3B-MICRO

From 575,00

This product comes with 2 years worldwide warranty

This product has quantity discounts available:
Units Price per unit
<50
575,00
>=50 494,50 Click here for bulk orders
>500 Contact us for special pricing

Includes:
– 1 simpleRTK3B Micro board with assembled Septentrio module

simpleRTK3B Micro Septentrio accelerates your RTK project thanks to its easy to integrate footprint, integrated RF connector & high availability. With Septentrio Mosaic-X5 and Mosaic-H modules. We take care of the RF design and complex module integration so you can focus on your PCB design and the application.

  • Smallest Form Factor
  • Many Mosaic pins available
  • Re-usable: if you do a new PCB you can un-mount from your previous version the expensive GPS!
  • Smaller PCB area needed: you can use the space below the module to place other components!
  • Easy to solder by hand or machine
  • No RF knowledge required, because all RF components are already inside: simply uFL for pigtail connection or long SMA for direct panel mount
  • Bulk pricing starting 50 units
AS-RTK3B-MICRO-MH-L1L2SMASTD-00 AS-RTK3B-MICRO-MH-L1L2SMAEXT-00 AS-RTK3B-MICRO-MH-L1L2UFLSTD-00 AS-RTK3B-MICRO-MH-L1L2UFLEXT-00 AS-RTK3B-MICRO-MX-L125SMASTD-00 AS-RTK3B-MICRO-MX-L125SMAEXT-00 AS-RTK3B-MICRO-MX-L125UFLSTD-00 AS-RTK3B-MICRO-MX-L125UFLEXT-00
ASB-RTK3B-MICRO-MH-L1L2SMASTD-00 ASB-RTK3B-MICRO-MH-L1L2SMAEXT-00 ASB-RTK3B-MICRO-MH-L1L2UFLSTD-00 ASB-RTK3B-MICRO-MH-L1L2UFLEXT-00 ASB-RTK3B-MICRO-MX-L125SMASTD-00 ASB-RTK3B-MICRO-MX-L125SMAEXT-00 ASB-RTK3B-MICRO-MX-L125UFLSTD-00 ASB-RTK3B-MICRO-MX-L125UFLEXT-00

Specifications

Mosaic-H features
  • Millimeter level precision
    1. <1cm with a base station up to 35km
    2. <1cm with NTRIP up to 35km
    3. <1.2m in standalone mode
    4. <0.6m standalone with SBAS coverage
  • GNSS attitude accuracy
    1. 1m antenna separation: 0.15deg heading, 0.25deg pitch/roll
    2. 5m antenna separation: 0.03deg heading, 0.05deg pitch/roll
  • Update rate
    1. Default: 1Hz
    2. Measurements only: up to 100Hz
    3. Standalone, SBAS, DGPS + attitude: up to 50Hz
    4. RTK+attitude: up to 20Hz
  • Multi band: L1, L2 and E5b support, 448 hardware channels
  • Multifrequency and Multiconstellation:
    1. GPS: L1 L2
    2. GLONASS: L1 L2
    3. Galileo: E1 E5b
    4. BeiDou: B1 B2
    5. QZSS:  L1 L2
    6. SBAS: WAAS, EGNOS, MSAS, GAGAN, SDCM (L1)
  • Start-up times:
    1. Cold start: <45s
    2. Warm start: <20s
    3. Re-acquisition: 1s
  • Protocols:
    1. Septentrio Binary Format (SBF)
    2. NMEA 0183, v2.3, v3.03, v4.0
    3. RINEX v2.x, v3.x
    4. RTCM v2.x, v3.x (MSM included)
    5. CMR v2.0 (out/in), CMR+ (input only)
  • Interfaces (check user guide to verify which are available):
    • USB
    • UART
    • XBee
    • Timepulse
    • Event
  • Base and Rover functionality
  • Operating temperature Range: -40 to +85deg
  • Certification: CE, WEEE, ISO 9001-2015
  • Documentation: RED, RoHS
Mosaic-X5 features
  • Millimeter level precision
    1. <1cm with a base station up to 35km
    2. <1cm with NTRIP up to 35km
    3. <1.2m in standalone mode
    4. <0.6m standalone with SBAS coverage
  • Update rate
    1. Default: 1Hz
    2. With maximum performance: up to 100Hz
  • Multi band: L1, L2 and L5 support, 448 hardware channels
  • Multifrequency and Multiconstellation:
    1. GPS: L1C/A L1PY L2C L2P L5
    2. GLONASS: L1CA L2CA L2P L3 CDMA
    3. Galileo: E1 E5a E5b E5 AltBloc E6
    4. BeiDou: B1I B1C B2a B2I B3
    5. QZSS:  L1C/A L2C L5
    6. Navic: L5
    7. SBAS: WAAS, EGNOS, MSAS, GAGAN, SDCM (L1 L5)
  • Start-up times:
    1. Cold start: <45s
    2. Warm start: <20s
    3. Re-acquisition: 1s
  • Protocols:
    1. Septentrio Binary Format (SBF)
    2. NMEA 0183, v2.3, v3.03, v4.0
    3. RINEX v2.x, v3.x
    4. RTCM v2.x, v3.x (MSM included)
    5. CMR v2.0 (out/in), CMR+ (input only)
  • Interfaces (check user guide to verify which are available):
    • USB
    • UART
    • XBee
    • Timepulse
    • Event
  • Base and Rover functionality
  • Operating temperature Range: -40 to +85deg
  • Certification: CE, WEEE, ISO 9001-2015
  • Documentation: RED, RoHS

Documentation

Start here:
  • Get started with the User Guide
  • Datasheet
  • Learn how to configure Septentrio Mosaic boards
  • Download Footprint
Certifications:Related tutorials:
