GPS/GNSS Antenna Signal Splitter

SKU: AS-ACC-RFSPLIT-L1256-2SMA-00

68,00

Availability: In stock

This product comes with 2 years worldwide warranty

This product has quantity discounts available:
Units Price per unit
<50
68,00
>=50 Contact us for special pricing
>500 Contact us for special pricing

Includes:
– 1x RF Splitter
– 2x SMA-male to SMA-male 15cm pigtail

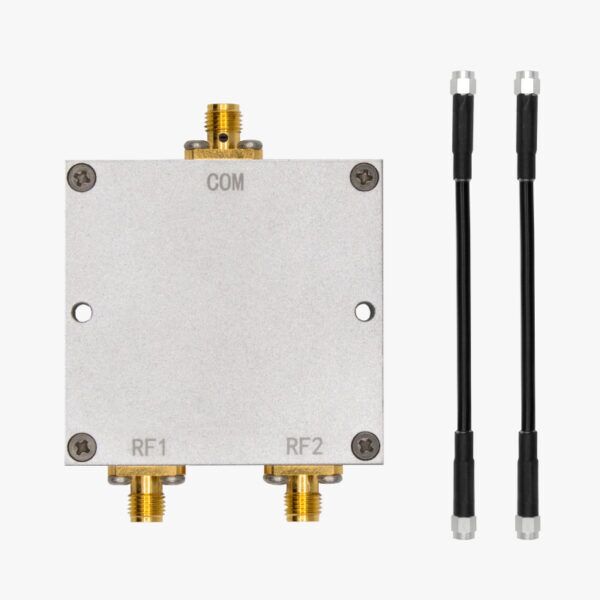

The GPS/GNSS Antenna Signal Splitter is a two way passive GPS/GNSS signal splitter. Ideal for sharing a GPS antenna between two SMA receivers to compare them or to have redundancy. The Splitter has 3 ports:

  • COM: Provides connection for the antenna.
  • RF1: Connection for the receiver 1, that should always be connected. This receiver will receive the signal from the antenna, and will also be providing power to the antenna.
  • RF2: Connection for the receiver 2. This receiver will not provide power to the antenna, but will receive the signal from the antenna.
AS-ACC-RFSPLIT-L1256-2SMA-00

Specifications

  • Frequency: 1.2 - 1.7 GHz
  • Isolation: 20dB
  • Maximum Power loss: 3.5dB
  • Maximum GNSS Signal-to-Noise loss: 0.5dB

Documentation

Start here:Certifications:
