simpleRTK2B Budget

SKU: AS-RTK2B-F9P-L1L2

From 172,00

This product comes with 2 years worldwide warranty

Includes:
– 1 simpleRTK2B Budget board (ZED-F9P)

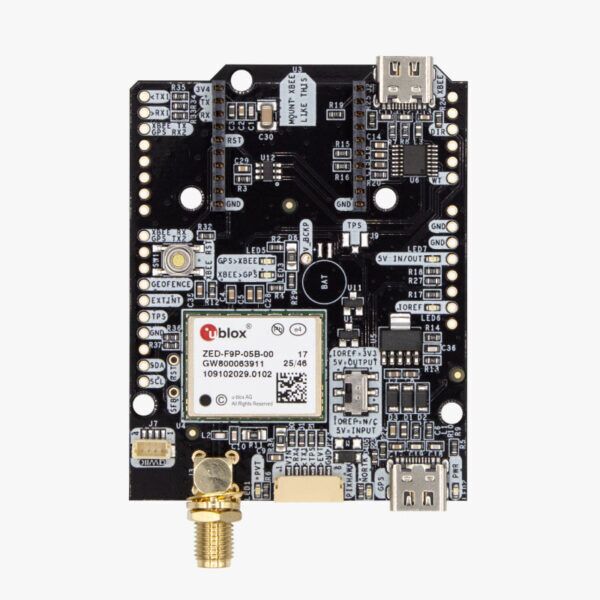

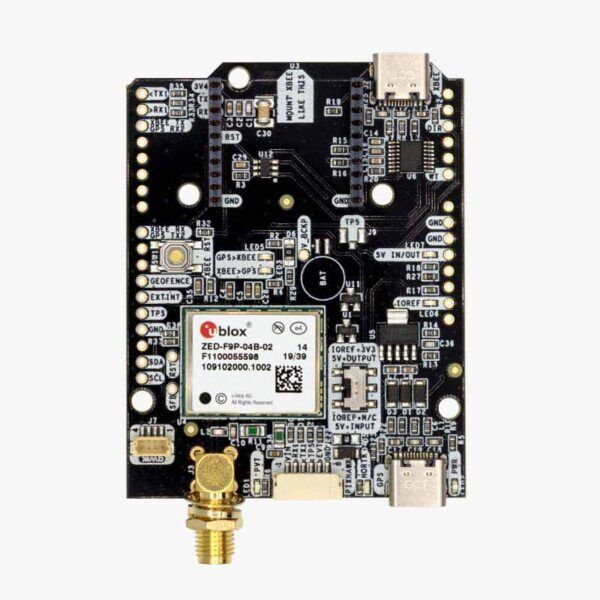

simpleRTK2B Budget is a standalone board that allows to evaluate dual band RTK GNSS technology including centimeter level accurate position.
It’s powered by u-blox ZED-F9P module and can be used standalone, or connected with Arduino, Ardupilot / Pixhawk (JST connector), Raspberry Pi, Nvidia Jetson and STM32 Nucleo platforms, as a shield. It can provide up to 10 RTK positions every second.

This board is ideal to make the first steps in RTK.
More details are available in the Specifications and Documentation tabs.

Good to know:
– This product is compatible but doesn’t include multiband GNSS antenna, which is necessary to use the product.
– The module will not give good performance with a standard GNSS antenna, requires a multiband one.
– This product can be used as Base or Rover
– This board is recommended if you want to test u-blox ZED-F9P performance.
– The onboard XBee socket can be used to expand functionality with Plugin accessories (MR/LR radios, Bluetooth, WiFi, Ethernet, Dataloggers, RS232, Canbus, L-Band). Not compatible with high power XBee accessories (XLR radio and 4G NTRIP Master). To have this full compatibility consider simpleRTK2B Pro.
– You can use the Shield for Second Plugin socket to connect 2 plugins at the same time.
– Compatible with Ardusimple plastic case

AS-RTK2B-F9P-L1L2-NH-02 AS-RTK2B-F9P-L1L2-NH-01 AS-RTK2B-F9P-L1L2-NH-00 AS-RTK2B-F9P-L1L2-HS-02 AS-RTK2B-F9P-L1L2-HS-01 AS-RTK2B-F9P-L1L2-HS-00

Specifications

Interfaces

  • Check documentation for pinout

Documentation

Start here:Certifications:Related tutorials:
