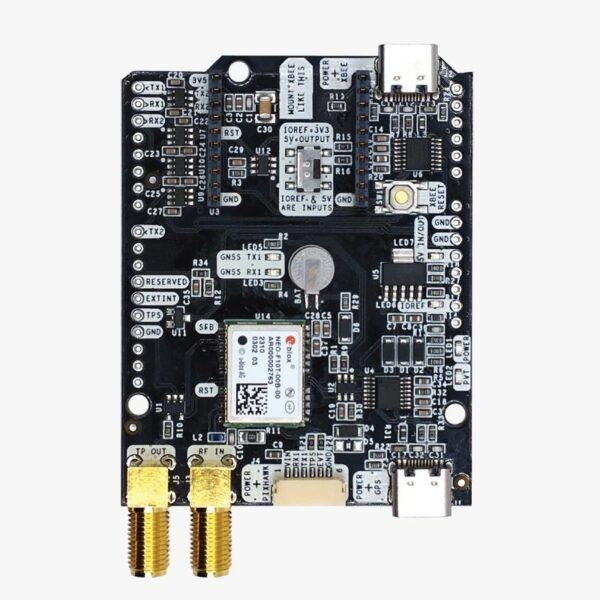

NEO-F10T top
simpleGNSS dimensions
NEO-F10T bottom
pinout-simpleGNSS_Timing-R00
NEO-F10T top
simpleGNSS dimensions
NEO-F10T bottom
pinout-simpleGNSS_Timing-R00

simpleGNSS Timing

SKU: AS-GNSS-F10T-L1L5

From 149,00

This product comes with 2 years worldwide warranty

This product has quantity discounts available:
Units Price per unit
<50
149,00
>=50 Contact us for special pricing
>500 Contact us for special pricing

Includes:
– 1 simpleGNSS Timing board (NEO-F10T)

simpleGNSS Timing allows you to evaluate sub-meter dual band (L1/L5) GNSS positioning technology including nanosecond timing and RAW data. It’s based on u-blox NEO-F10T module and can be used standalone. Or connected with Arduino, Ardupilot / Pixhawk (JST connector), Raspberry Pi, Nvidia, STM32 and ESP32 platforms, as a shield. It can provide up to 10 positions every second.
Thanks to its impedance controlled Timepulse output with nanosecond accuracy, this board is ideal for accurately timestamping sensor data, or synchronizing different base stations in the same timescale.

Good to know:

– This product doesn’t do RTK, but can be used for postprocessing PPK-RTK thanks to its RAW data output.
– This product is compatible but doesn’t include multiband GNSS antenna, which is necessary to use the product.
– The module will not give good performance with any GNSS antenna, for optimum performance we recommend our Budget Survey Tripleband or ANN-MB1 antenna.
– This board is recommended if you want to test u-blox NEO-F10T performance.
– The board has a SMA connector for GNSS antenna input, and a second SMA connector for a high output drive (24mA) timepulse.
– This product is a lower cost alternative to NEO-M8T, ZED-F9T or RCB-F9T board.

AS-GNSS-F10T-L1L5-NH-00 AS-GNSS-F10T-L1L5-HS-00

Specification

NEO-F10T features
  • Sub meter level precision
    • <1.5m in standalone mode
    • <0.9m standalone with SBAS coverage
  • Update rate
    • Default: 1Hz
    • With maximum performance: up to 8Hz
    • With reduced performance: up to 10Hz
  • Multi band: L1, L5 support
  • Multifrequency and Multiconstellation:
    • GPS: L1C/A L5
    • Galileo: E1-B/C E5a
    • BeiDou: B1C B2I
    • NavIC: SPS-L5
    • QZSS:  L1Sb
    • SBAS: WAAS, EGNOS, MSAS, GAGAN and SouthPan
  • Start-up times:
    • First position fix: 27 seconds (cold), 2 seconds (hot)
  • RAW data output in UBX format
  • Timepulse:
    • Accuracy: 10ns
    • Accuracy (jitter removed): 5ns
    • Jitter: +-8ns
    • Frequency: from 0.25Hz to 10MHz (default 1Hz)
  • Operating temperature Range: -40 to +85deg
  • Documentation: RED, RoHS, UKCA
