ANN-MB-00

u-blox GNSS Multiband antenna ANN-MB-00 (IP67)

SKU AS-ANT2B-ANN-L1L2-50SMA-00 Category Tags , ,

53,00

Availability: In stock

This product comes with 2 years worldwide warranty

This product has quantity discounts available:
Units Price per unit
<50
53,00
>=50 39,00 click here for bulk orders

Includes:
– RTK multiband external GNSS antenna with 5m cable with SMA connector

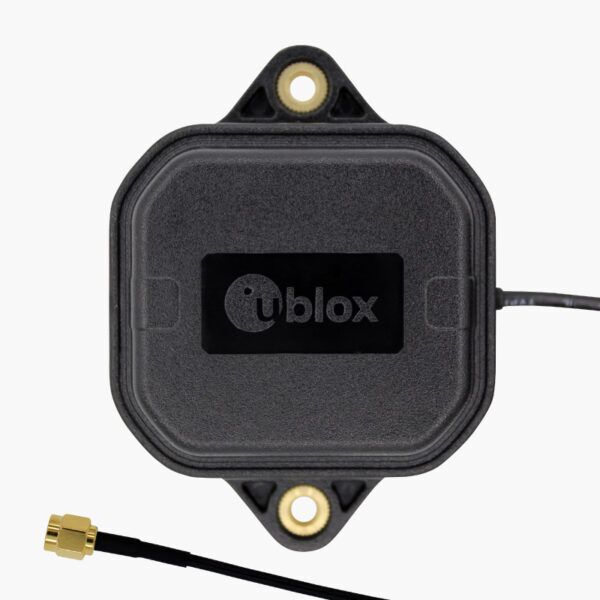

External multiband GNSS antenna (u-blox ANN-MB-00) with cover and IP67 protection.

Good to know:
– Compatible with all simpleRTK2B boards as well as any other multiband GNSS receiver in the market.

Specifications

ANN-MB

Antenna element

  • Supported positioning signal bands:
    • GPS: L1, L2
    • GLONASS: G1, G2
    • BeiDou: B1, B2
    • Galileo: E1, E5b
    • QZSS: L1, L2
    • SBAS: WAAS, EGNOS, MSAS and GAGAN
  • Frequency range:
    • 1559-1606 MHz
    • 1197-1249 MHz
  • Polarization: RHCP
  • Peak gain: 2.0dBi (without ground plane)
  • Axial Ratio @ zenith: <3dB
  • Azimuth Coverage: 360 degrees
  • Impedance: 50 ohm

Electrical

  • Supply voltage: 3-5V
  • Typical supply current @ 3V: 15mA
  • Average LNA gain: 28dB
  • Maximum Noise Figure: 3.2dB
  • Maximum VSWR: 2

Mechanical

  • Maximum length: 82mm
  • Weight: 173g
  • Mounting style: magnetic base or 2×4.5mm holes
  • Cable length: 5 meters
  • Connector: SMA male

Environmental

  • Operating Temperature: -40 to +85°C
  • Storage Temperature: -40 to +85°C
  • IP Rating: IP67
  • RoHS: Yes

Documentation

Related tutorials:
  • RTK GNSS performance with extreme antenna positions
  • Want to learn more about GPS/RTK?
