simpleRTK2B – Starter Kit LR

SKU AS-STARTKIT-LR-L1L2 Category Tags , , , ,

From 662,00 From 612,00

This product comes with 2 years worldwide warranty

This interactive table will help you choose the right LR/XLR radio options, depending on the frequencies available in your country.

Choose your country/region:

Country/Region Free frequencies LR radio options XLR radio options
- - - - - -

After checking the frequencies in the interactive table don't forget to pick manually the preferred LR/XLR radio options in the above select box!

*We have created this table on a best effort basis but we are not responsible of possible mistakes or changes in spectrum legislation.
You can contact us if you find any error.

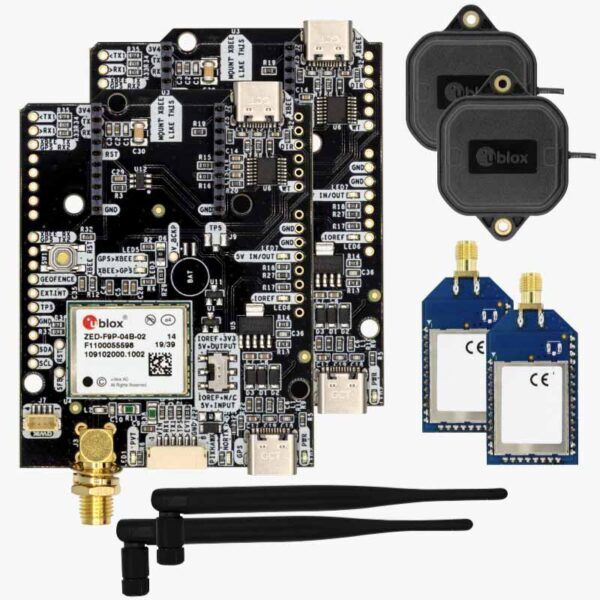

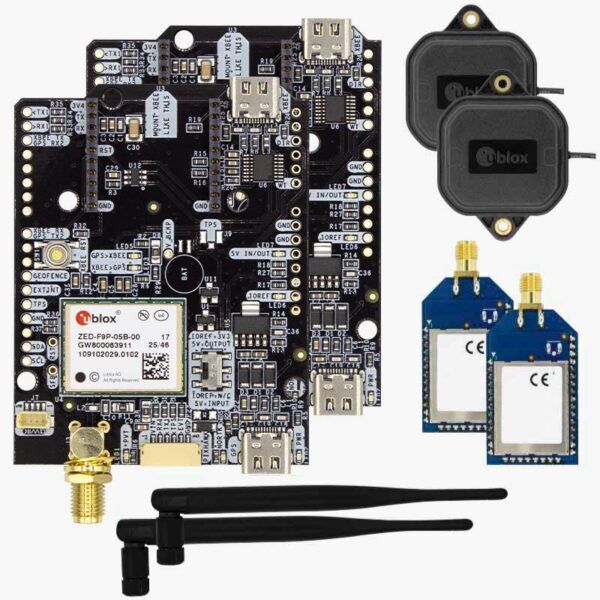

Includes:
– 2 simpleRTK2B Budget boards (ZED-F9P)
– 2 Radio Modules LR (Long Range) + 2 x radio antennas
– 2 u-blox GNSS Multiband antenna ANN-MB-00 (IP67) with cable
– Base and Rover preconfiguration

The simpleRTK2B – Starter Kit LR (Long Range) allows simple and fast evaluation of Dual Band GNSS (GPS/Galileo/Glonass/Beidou) RTK technology, based on u-blox ZED-F9P module.

RTK technology introduces the concept of a “Rover” and a “Base Station”. By using a data stream from the base station, the rover can output its relative position with cm‑level accuracy in clear sky environments.

One of the known problems of Single Band RTK is its convergence time of more than 60 seconds. Dual Band technology reduces this time below 10 seconds, increasing substantially the availability of cm-level accuracy.

RTK technology works when base and rover are within 35km from each other. If you want to challenge this limit, this is your recommended Starter Kit. The kit includes 2 boards with base and a rover functionality, and radio modules that will let you send RTK corrections up to 10km. If that’s too much and you are looking for a more affordable solution, check out our Starter Kit MR.

The kit comes pre-configured, but if you need a custom configuration with special needs, make sure to add in the shopping cart our Configuration Service.

Good to know:
– You can have multiple rovers by using additional simpleRTK2B boards together with your kit.
– This product is recommended if you want to evaluate u-blox ZED-F9P.
– The included radio modules will let you send RTK corrections up to 10km. This distance will depend on the region of use, subject to local regulations.
