simpleGNSS Pro

SKU N/A Category

From 96,00

This product comes with 2 years worldwide warranty

Includes:
– 1 simpleGNSS Pro board

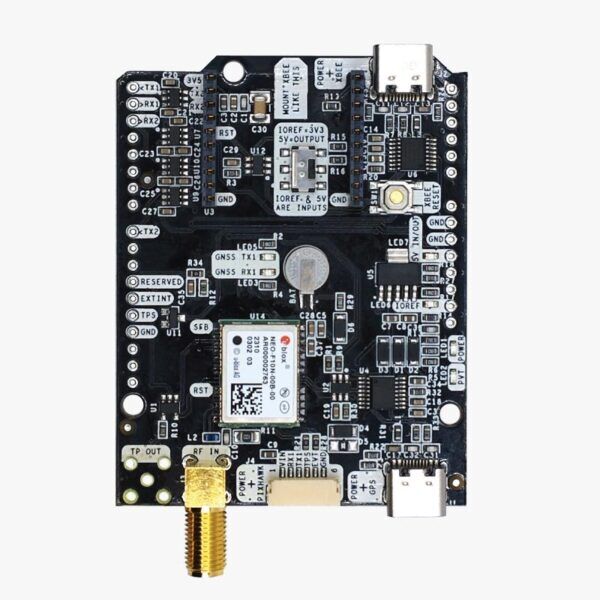

simpleGNSS is a standalone board that allows to evaluate sub-meter dual band (L1/L5) GNSS positioning technology. It’s based on u-blox NEO-F10N module and is fully compatible with Arduino and STM32 Nucleo platforms, as a shield.

Good to know:
– This product doesn’t do RTK.
– This product is compatible but doesn’t include multiband GNSS antenna, which is necessary to use the product.
– The module will not give best performance with any GNSS antenna, for optimum performance we recommend our Budget Survey Tripleband or ANN-MB1 antenna.
– This board is recommended if you want to test u-blox NEO-F10N performance.

Specification

NEO-F10N features

  • Sub meter level precision
    • <1.5m in standalone mode
    • <0.9m standalone with SBAS coverage
  • Update rate
    • Default: 1Hz
    • With maximum performance: up to 8Hz
    • With reduced performance: up to 10Hz
  • Multi band: L1, L5 support
  • Multifrequency and Multiconstellation:
    • GPS: L1C/A L5
    • GLONASS: L1OF
    • Galileo: E1-B/C E5a
    • BeiDou: B1C B2I
    • NavIC: SPS-L5
    • QZSS:  L1Sb
    • SBAS: WAAS, EGNOS, MSAS, GAGAN and SouthPan
  • Start-up times:
    • First position fix: 27 seconds (cold), 2 seconds (hot)
  • Operating temperature Range: -40 to +85deg
  • Documentation: RED, RoHS, UKCA
