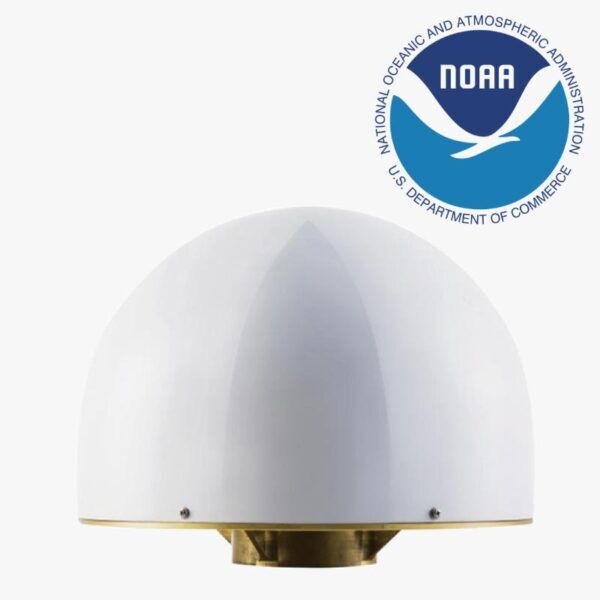

Triple band choke ring antenna with cover
Triple band choke ring antenna with cover
Triple band choke ring antenna

3D Choke Ring GNSS Tripleband + L-band antenna (IP67)

SKU AS-ANT3B-CHO-L1256-SMATNC-00 Category Tags , ,

USD $3,256.00

Availability: In stock (can be backordered)

This product comes with 2 years worldwide warranty

Includes:

– 3D Choke Ring GNSS Tripleband + L-band antenna (IP67)
– 1.5m pigtail cable with TNC to SMA connector
– 2.5m pigtail cable with TNC to TNC connector

Calibrated by NGS Survey Quadband (L1/L2/L5/L6) 3D Choke Ring GNSS antenna.
Ideal for base station installations, but also for fixed installations supporting L-band.

Good to know:
– Compatible with all simpleRTK3B boards as well as any other multiband GNSS receiver in the market.

Documentation

Related tutorials:
  • How to load antenna calibration files to simpleRTK3B receivers
  • Specifications

    3D Choke Ring antenna

    Antenna element

    • Supported positioning signal bands:
      • GPS: L1, L2, L5
      • GLONASS: G1, G2, G3
      • BeiDou: B1, B2, B3
      • Galileo: E1, E5, E6
      • QZSS: L1, L2, L5, L6
      • Navic: L5
      • L-band: L6
      • SBAS: WAAS, EGNOS, MSAS and GAGAN
    • Polarization: RHCP
    • Peak gain: 7dBi
    • Axial Ratio @ zenith: <3dB
    • Azimuth Coverage: 360 degrees
    • Impedance: 50 ohm
    • Phase center error: ±1mm
    • Calibration file available

    Electrical

    • Supply voltage: 3-12V
    • Typical supply current @ 3V: 60mA
    • Average LNA gain: 40dB
    • Maximum Noise Figure: 1.5dB
    • Maximum VSWR: 1.5

    Mechanical

    • Maximum length: 380mm
    • Weight: 10kg
    • Mounting style: 5/8” x 11TPI thread
    • Connector: TNC female
    • Cable length:
      • Includes 1.5 meter cable terminated in SMA male
      • Includes 2.5 meter cable terminated in TNC male

    Environmental

    • Operating Temperature: -40 to +85°C
    • Storage Temperature: -40 to +85°C
    • IP Rating: IP67 (excluding air vent in screw hole, which can be sealed when installed)
    • RoHS: Yes
