simpleRTK 4 Optimum – Basic Starter Kit

simpleRTK 4 Optimum – Basic Starter Kit is a u-blox ZED-X20P + ANN-MB2 evaluation kit.

This standalone set of all-band board based on u-blox ZED-X20P + u-blox ANN-MB2 antenna is everything that you need to achieve centimeter level accuracy and evaluate all-band RTK GNSS technology at the most affordable cost.

To achieve centimeter level accuracy, you will need to connect it to a base station or to an RTK correction service (NTRIP or PointPerfect). You can use it with your smartphone, tablet, laptop or PC.

The kit can be configured as a base or a rover, supports multi-rover. It is fully compatible with Arduino, STM32 Nucleo, Raspberry Pi, Nvidia Jetson, ROS and Pixhawk / Ardupilot.

More details are available in the Specifications and Documentation tabs.

Good to know:
– This product is compatible but doesn’t include radio, which might be useful connect to another base.
– This product is recommended if you want to evaluate u-blox ZED-X20P.
– This product is an alternative to u-blox X20P high precision GNSS evaluation kit.
– If you don’t know if you need the headers option, have a look at our article Do I need Arduino Headers option?

Includes:

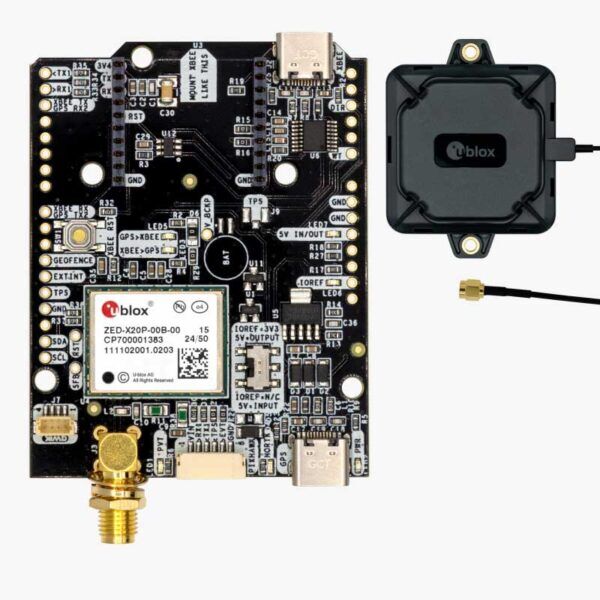

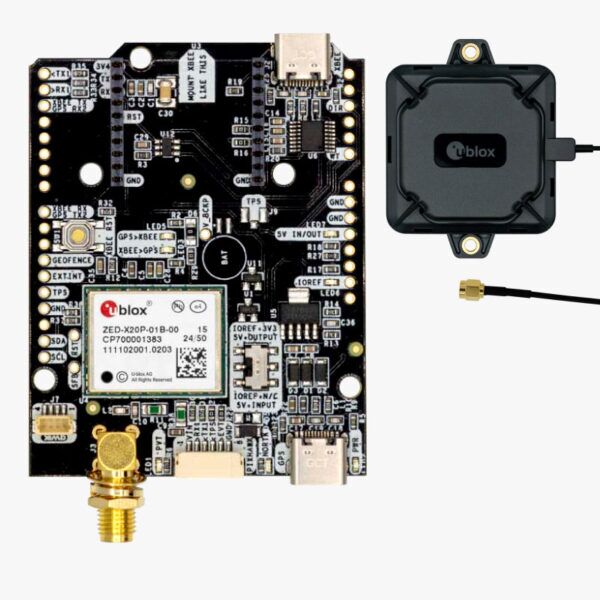

– 1 simpleRTK 4 Optimum board (ZED-X20P)
– 1 u-blox GNSS Multiband antenna ANN-MB2 (IP67) with 5m cable
