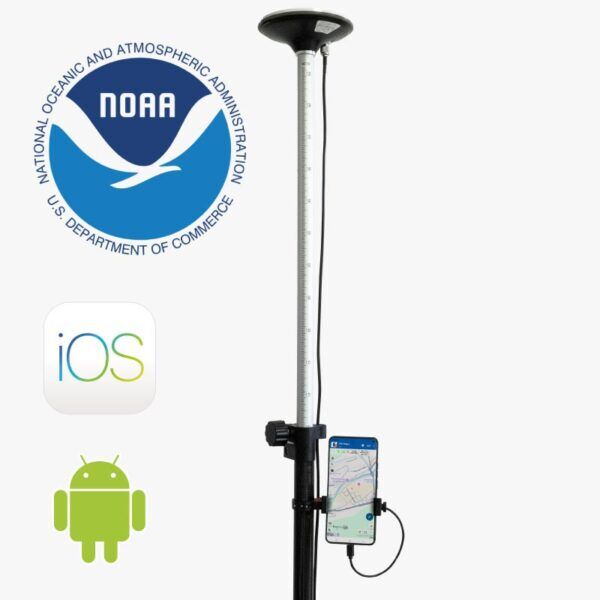

RTK Calibrated Surveyor Kit
From 444,00€/USD 511$
Original price was: 452,00€.444,00€Current price is: 444,00€.
Availability: In stock
In stock
This product comes with 2 years worldwide warranty
“RTK Calibrated Surveyor Kit items” includes:
– ZED-F9P RTK receiver with USB and Bluetooth/BLE inside a plastic case
– Calibrated Survey GNSS Multiband antenna (IP67) with 1.5m TNC-SMA cable
– USB-C cable
– USB OTG microUSB-B (14cm)
– USB OTG type C (22cm)
– Universal smartphone holder with Rubber Pads, fits any smartphone from 5.3cm to 9.3cm
– Clamp to hold the smartphone holder to the pole
– Velcro strap (20cm) to fix the receiver to the back of the smartphone holder
– Pre-configuration to send NMEA over Bluetooth/BLE and USB at 1Hz
– Plastic case has a LED to indicate Bluetooth/BLE status
“Pole for survey GNSS antenna” includes:
– Surveying pole
With the ArduSimple RTK Calibrated Surveyor Kit you will have everything you need to start your surveyor tasks with RTK and centimeter level accuracy.
For Android users, use your preferred app and connect to the receiver via USB or Bluetooth.
For iOS users, currently only connection over BLE is possible, and only SW Maps app is supported.
You will only need to configure your NTRIP credentials and you are ready to go!
Good to know:
– You can power and connect to the GNSS receiver with only one USB OTG cable
– You can use Bluetooth or BLE (compatible with Android and iOS devices)
– Fits any smartphone from 5.3cm to 9.3cm with or without case
– You can also use a tablet with this kit (tablet holder not included)
– Smarpthone is not included
Specifications
Interfaces- USB
- Bluetooth
- Centimeter level precision
- <1cm with a base station up to 35km
- <1cm with NTRIP up to 35km
- <4cm with SSR corrections
- <1.5m in standalone mode
- <0.9m standalone with SBAS coverage
- Update rate
- Default: 1Hz
- With maximum performance: up to 10Hz
- With reduced performance: up to 20Hz
- Multi band: L1, L2 and E5b support
- Multifrequency and Multiconstellation:
- GPS: L1C/A L2C
- GLONASS: L1OF L2OF
- Galileo: E1-B/C E5b
- BeiDou: B1I B2I
- QZSS: L1C/A L2C
- SBAS: WAAS, EGNOS, MSAS, GAGAN and SouthPAN
- Start-up times:
- First position fix: 25 seconds (cold), 2 seconds (hot)
- First RTK fix: 35 seconds (cold)
- RAW data output in UBX format
- Base and Rover functionality
- Operating temperature Range: -40 to +85degC
- Documentation: RED, RoHS
Documentation
Start here:- Get started with the User Guide
Datasheet- Configuration files
- We didn't find time to create this 3D CAD model, contact us to request it
- How to connect low cost RTK kit to Carlson SurvPC for archaeological surveying
- How to use centimeter GPS with any Android app (Mock location)
- Mock location with USB OTG
- How to configure your simpleRTK2B receiver on your Android smartphone via GNSS master?
- How to export your survey work from your Android device to QGIS and AutoCAD
- How to use custom geoid for orthometric height measurements in Android with Mapit GIS or Mapit Spatial
- Ellipsoidal, orthometric and geoid height 101
- How to use Ardusimple products with SW Maps on Android smartphones/tablets
- How to connect external GNSS/RTK receiver to QField on iOS device (iPhone or iPad)
- How to connect RTK receiver to iOS device (iPhone or iPad) via BT+BLE Bridge?
- How to use Ardusimple products with iOS smartphones/tablets via WiFi
