The vision of ArduSimple is to make GNSS RTK technology simple, affordable and accessible to everyone with a series of starter kits, tutorials, engineering services and OEM products.
RTK-SSR Receiver with PointPerfect (Internet or L-Band)
SKU: AS-PROKIT-POINTPERFECT-L1L2
956,00€
This product comes with 2 years worldwide warranty

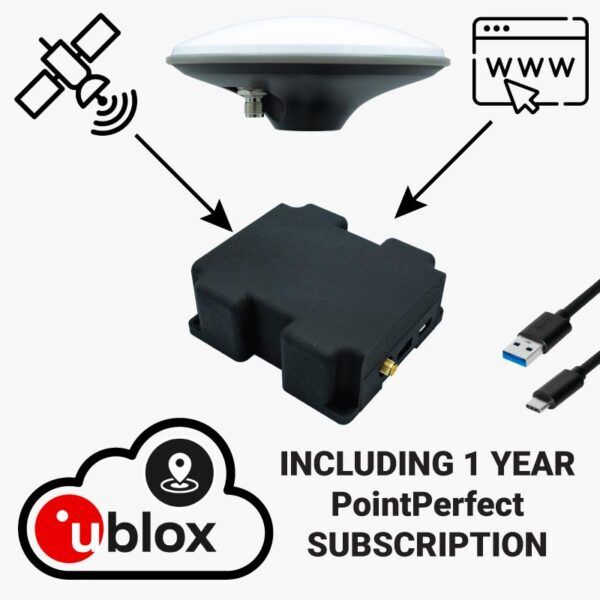

Includes:
– simpleRTK2B Pro with ZED-F9P RTK receiver
– 1 year subscription to L-Band or Internet PointPerfect correction service
– 1 L-Band Point Perfect correction receiver or 4G NTRIP Master + 1 SIM Card with 1 year unlimited service
– 1 Calibrated Survey GNSS Tripleband + L-band antenna (IP67) or Survey GNSS Multiband antenna (IP66)
– 1 Magnetic stand for survey GNSS Multiband antenna
– 1 USB – type C cable
– 1 Plastic Case
– Pre-configuration to send NMEA over JST-GH connector and USB at the same time
With RTK-SSR Receiver with PointPerfect (Internet or L-Band), you will be able to enjoy plug-and-play centimeter accuracy in Europe and continental North America from any area with cellphone coverage or satellite view.
Thanks to u-blox F9 RTK engine, Thingstream PointPerfect augmentation service and ArduSimple integration and pre-configuration, just power up, wait 1-2 minutes, and enjoy centimeter precision. If you use L-band option, please send us an email at info@ardusimple.com when you receive the package and we will activate the service.
Good to know:
– The price includes the hardware, 1 year unlimited PointPerfect augmentation service.
– Internet version will activate automatically during the first power up or 15 days after delivery, whichever happens first. If you use L-band option, please send us an email at info@ardusimple.com when you receive the package and we will activate the service for you.
– For the L-Band version, you will need to update the key every 28 to 56 days, you can find instructions here, the Internet version updates automatically the keys.
– You can use the device without limit for a full calendar year: 365 days @ 24h/day.
– When the date of the license period is close to expire, you will have the possibility to renew it at 365€/year.
– u-blox PointPerfect augmentation service coverage in all territory marked in orange and up to 20km from the coastline:
Specifications
Interfaces- USB
- LTE FDD Cat.4 with dual antenna for Rx Diversity and MIMO
- Compatible with 2G, 3G and 4G networks
- Integrated SIM holder: MicroSIM
- Antenna type: external passive
- Antenna connector (modem side): uFL / IPEX
- Frequency (Europe variant):
- For Europe, but also Middle East & Asia, compatible with:
- 4G Bands (MHz): B1(2100), B3(1800), B7(2600), B8(900), B20(800)
- 3G Bands (MHz): B2(2100), B8(900)
- 2G Bands (MHz): B3(1800), B8(900)
- Frequency (North America variant):
- For USA* & Canada, compatible with 4G and 3G networks.
- 4G Bands (MHz): B2(1900), B4(1700), B5(850), B12/B13 (700)
- 3G Bands (MHz): B2(1900), B5(850)
- * Only compatible with AT&T, T-Mobile and virtual operators working on these networks. Not compatible by default with Verizon SIM cards, contact us in this case.
- Operating temperature Range: -40 to +85deg
- Documentation: RED, RoHS, FCC, IC, PTCRB
- Centimeter level precision
- <1cm with a base station up to 35km
- <1cm with NTRIP up to 35km
- <4cm with SSR corrections
- <1.5m in standalone mode
- <0.9m standalone with SBAS coverage
- Update rate
- Default: 1Hz
- With maximum performance: up to 10Hz
- With reduced performance: up to 20Hz
- Multi band: L1, L2 and E5b support
- Multifrequency and Multiconstellation:
- GPS: L1C/A L2C
- GLONASS: L1OF L2OF
- Galileo: E1-B/C E5b
- BeiDou: B1I B2I
- QZSS: L1C/A L2C
- SBAS: WAAS, EGNOS, MSAS, GAGAN and SouthPAN
- Start-up times:
- First position fix: 25 seconds (cold), 2 seconds (hot)
- First RTK fix: 35 seconds (cold)
- RAW data output in UBX format
- Base and Rover functionality
- Operating temperature Range: -40 to +85deg
- Documentation: RED, RoHS
Documentation
Start here:- Get started with the User Guide
Datasheet- We didn't find time to create this 3D CAD model, contact us to request it
- PointPerfect L-Band key update
- Evaluating PointPerfect IP correction service
- How to use PointPerfect with u-blox receivers
- How to use PointPerfect with Septentrio and non u-blox receivers
- How to connect RTK receiver to iOS device (iPhone or iPad) via BT+BLE Bridge?
- Mock location with USB OTG
- How to configure your simpleRTK2B receiver on your Android smartphone via GNSS master?
- How to export your survey work from your Android device to QGIS and AutoCAD
- How to use custom geoid for orthometric height measurements in Android with Mapit GIS or Mapit Spatial
- Ellipsoidal, orthometric and geoid height 101
- How to use Ardusimple products with iOS smartphones/tablets via WiFi
- How to use Ardusimple products with SW Maps on Android smartphones/tablets
