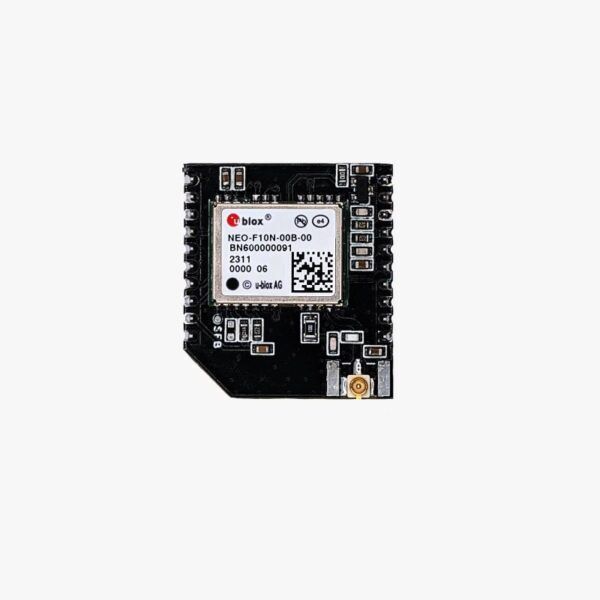

Simplegnss Micro F10N
Ardusimple SimpleGNSS Micro Scale
Scale_Simplegnss_Micro_F10N_SMA
Simplegnss Micro F10N ULCL
Simplegnss Micro F10N SMA
simpleGNSS-Micro-footprint-R00
Simplegnss Micro F10N
Ardusimple SimpleGNSS Micro Scale
Scale_Simplegnss_Micro_F10N_SMA
Simplegnss Micro F10N ULCL
Simplegnss Micro F10N SMA
simpleGNSS-Micro-footprint-R00

simpleGNSS Micro

SKU: AS-GNSS-MICRO-F10N

From 76,00

This product comes with 2 years worldwide warranty

This product has quantity discounts available:
Units Price per unit
<50
76,00
>=50 Contact us for special pricing
>500 Contact us for special pricing

Includes:
– 1 simpleGNSS Micro board (NEO-F10N)

Let simpleGNSS Micro accelerate your GNSS project thanks to its easy to integrate footprint, integrated RF connector & high availability. With u-blox NEO-F10 module inside. We take care of the RF design and complex module integration so you can focus on your PCB design and the application.

  • Smallest Form Factor
  • Many NEO-F10 pins available
  • Re-usable: if you do a new PCB you can un-mount from your previous version the expensive GPS!
  • Smaller PCB area needed: you can use the space below the module to place other components!
  • Easy to solder by hand or machine
  • No RF knowledge required, because all RF components are already inside: simply uFL for pigtail connection or long SMA for direct panel mount
  • Bulk pricing starting 50 units

Specification

NEO-F10N features
  • Sub meter level precision
    • <1.5m in standalone mode
    • <0.9m standalone with SBAS coverage
  • Update rate
    • Default: 1Hz
    • With maximum performance: up to 8Hz
    • With reduced performance: up to 10Hz
  • Multi band: L1, L5 support
  • Multifrequency and Multiconstellation:
    • GPS: L1C/A L5
    • Galileo: E1-B/C E5a
    • BeiDou: B1C B2I
    • NavIC: SPS-L5
    • QZSS:  L1Sb
    • SBAS: WAAS, EGNOS, MSAS, GAGAN and SouthPan
  • Start-up times:
    • First position fix: 27 seconds (cold), 2 seconds (hot)
  • Operating temperature Range: -40 to +85deg
  • Documentation: RED, RoHS, UKCA
