4G NTRIP Master

SKU: AS-XBEE-4G

175,00

This product comes with 2 years worldwide warranty

This interactive table will help you choose the right 4G network region, depending on the frequencies available in your country.

Choose your country/region:

Country/Region Recommended 4G Network Option
- - - -

After checking the frequencies in the interactive table don't forget to pick manually the preferred 4G network region in the above select box!

*We have created this table on a best effort basis but we are not responsible of possible mistakes or changes in spectrum legislation.
You can contact us if you find any error.

This product has quantity discounts available:
Units Price per unit
<50
175,00
>=50 112,00 Click here for bulk orders
>500 Contact us for special pricing

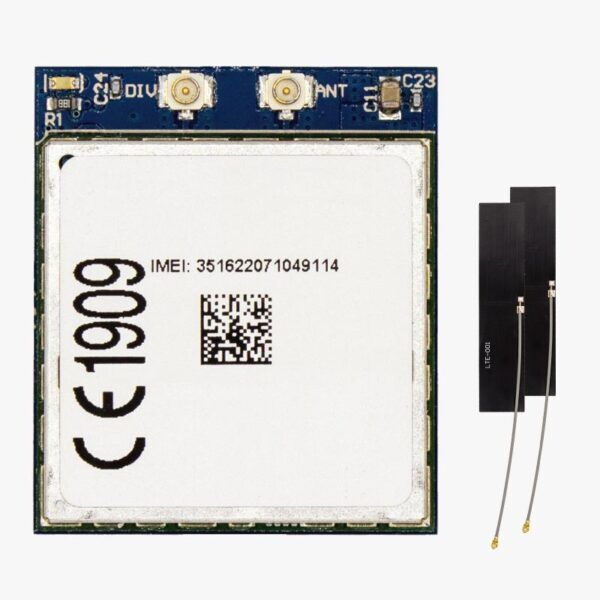

Includes:
– 4G+3G+2G radio module including NTRIP software (XBee socket compatible)
– 2 4G+3G+2G antennas with integrated cable
Free PointPerfect RTK-SSR corrections until 2024

The ArduSimple 4G NTRIP Master enables your RTK receiver to connect autonomously to internet, from any area with cellphone coverage, and by using a SIM card. No programming is required to use this product.

You can use this product as:

  • NTRIP Client (to get corrections from your preferred correction service)
  • NTRIP Server (to send your base corrections to a NTRIP caster like RTK2go.com)
  • TCP socket client (to send position or any other message to your server)
  • PointPerfect Client (This product has free RTK-SSR corrections until 31/12/2024. Later if you want you can get a subscription starting at only $5.90/device/month)

Just introduce your SIM card, configure the device following our User Guide, and let the 4G NTRIP Master do the rest. If you find the hookup guide too complex just add to the shopping cart our Configuration Service if you want to receive it already pre-configured.

Good to know:
– Default configuration is at 115’200bps
– Compatible with simpleRTK2B Pro, simpleRTK3B and simpleRTK2B SBC.
– Compatible with u-blox Thingstream PointPerfect augmentation service.
– If you want to use it with simpleRTK2B Budget, you will need a Shield for Second XBee socket (High Power).
– This product is not compatible with simpleRTK2B Lite
– You will need a SIM card with internet access capabilities to use this product. MicroSIM form factor.

AS-XBEE-4G-EU-UFL-00 AS-XBEE-4G-NA-UFL-00 ASB-XBEE-4G-EU-UFL-00 ASB-XBEE-4G-NA-UFL-00

Specifications

Interfaces4G NTRIP Master features
  • LTE FDD Cat.4 with dual antenna for Rx Diversity and MIMO
  • Compatible with 2G, 3G and 4G networks
  • Integrated SIM holder: MicroSIM
  • Antenna type: external passive
  • Antenna connector (modem side): uFL / IPEX
  • Frequency (Europe variant):
    1. For Europe, but also Middle East & Asia, compatible with:
    2. 4G Bands (MHz): B1(2100), B3(1800), B7(2600), B8(900), B20(800)
    3. 3G Bands (MHz): B2(2100), B8(900)
    4. 2G Bands (MHz): B3(1800), B8(900)
  • Frequency (North America variant):
    1. For USA* & Canada, compatible with 4G and 3G networks.
    2. 4G Bands (MHz): B2(1900), B4(1700), B5(850), B12/B13 (700)
    3. 3G Bands (MHz): B2(1900), B5(850)
    4. * Only compatible with AT&T, T-Mobile and virtual operators working on these networks. Not compatible by default with Verizon SIM cards, contact us in this case.
  • Operating temperature Range: -40 to +85deg
  • Documentation: RED, RoHS, FCC, IC, PTCRB

Documentation

Start here:
  • Get started with the User Guide
  • Datasheet
  • Check our PCB Integration Guide
  • Download Footprint
Certifications:Related tutorials:
