Budget Survey GNSS Multiband antenna (IP66)

SKU: AS-ANT2B-SUR-L1L2-25SMA-00

89,00

Availability: In stock

This product comes with 2 years worldwide warranty

This product has quantity discounts available:
Units Price per unit
<50
89,00
>=50 82,00 Click here for bulk orders
>500 Contact us for special pricing

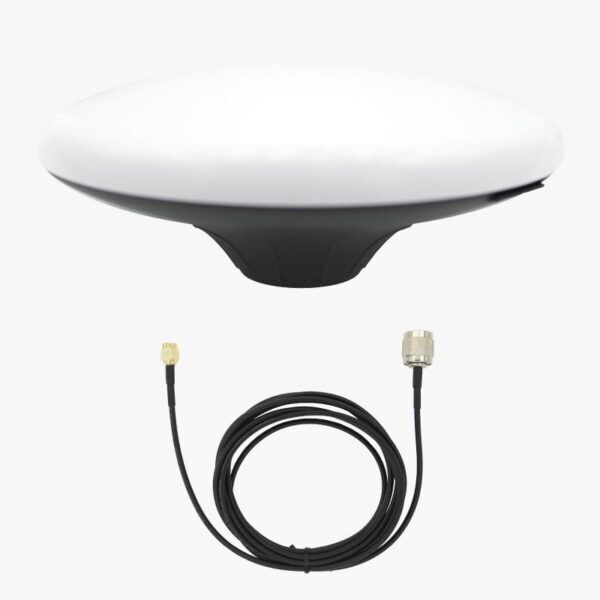

Includes:
– Survey dualband external GNSS antenna
– 2.5m pigtail cable with TNC to SMA connector

Survey grade and low cost Dual band (L1, L2/E5b/B2I) active GNSS antenna with TNC connector and 2.5m cable terminated with SMA male. Supports GPS, GLONASS, Galileo, and BeiDou. Perfect match for u-blox ZED-F9P and Septentrio Mosaic-H boards.

Good to know:
– Compatible with all simpleRTK2B boards as well as any other multiband GNSS receiver in the market.
– Bulk pricing starting 50 units

AS-ANT2B-SUR-L1L2-25SMA-00 ASB-ANT2B-SUR-L1L2-25SMA-00

Specifications

2B Survey Budget antenna
Antenna element
  • Supported positioning signal bands:
    • GPS: L1, L2
    • GLONASS: G1, G2
    • BeiDou: B1, B2
    • Galileo: E1, E5b
    • QZSS: L1, L2
    • SBAS: WAAS, EGNOS, MSAS and GAGAN
  • Polarization: RHCP
  • Peak gain: 5dBi
  • Axial Ratio @ zenith: <3dB
  • Azimuth Coverage: 360 degrees
  • Impedance: 50 ohm
  • Phase center error: ±3mm
Electrical
  • Supply voltage: 3-5.5V
  • Typical supply current @ 3V: 50mA
  • Average LNA gain: 40dB
  • Maximum Noise Figure: 1.5dB
  • Maximum VSWR: 2
Mechanical
  • Maximum length: 147mm
  • Weight: 390g
  • Mounting style: Magnetic base (requires accessory) or 5/8” x 11TPI thread
  • Connector: TNC female
  • Cable length: Includes 2.5 meter cable terminated in SMA male
Environmental
  • Operating Temperature: -40 to +85°C
  • Storage Temperature: -40 to +85°C
  • IP Rating: IP66 (excluding air vent in screw hole, which can be sealed when installed)
  • RoHS: Yes

Documentation

Start here:Certifications:Related tutorials:
