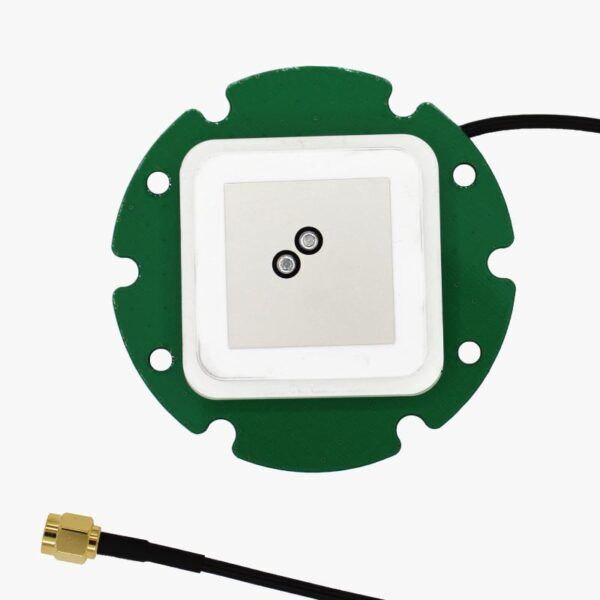

Antenna for GNSS Multiband with cable (OEM)

SKU: AS-ANT2B-OEM-L1L2-02SMA-00

57,00

Availability: In stock

This product comes with 2 years worldwide warranty

This product has quantity discounts available:
Units Price per unit
<50
57,00
>=50 48,00 Click here for bulk orders
>500 Contact us for special pricing

Includes:
– RTK dualband GNSS antenna with 25cm cable with SMA connector

External dual band L1/L2/E5b/B2I GNSS active antenna (OEM version), with a weight of only 78grams. Ideal for integrating into your own plastic enclosure.

Check our antenna performance comparison: Ardusimple’s OEM antenna vs u-blox ANN-MB & Tallysman TW3865

Good to know:
– Compatible with all simpleRTK2B boards as well as any other multiband GNSS receiver in the market.
– Bulk pricing starting 50 units

AS-ANT2B-OEM-L1L2-02SMA-00 ASB-ANT2B-OEM-L1L2-02SMA-00

Specifications

OEM antenna
Antenna element
  • Supported positioning signal bands:
    • GPS: L1, L2
    • GLONASS: G1, G2
    • BeiDou: B1, B2
    • Galileo: E1, E5b
    • QZSS: L1, L2
    • SBAS: WAAS, EGNOS, MSAS and GAGAN
  • Polarization: RHCP
  • Peak gain: 2.5dBi
  • Axial Ratio @ zenith: <3dB
  • Azimuth Coverage: 360 degrees
  • Impedance: 50 ohm
Electrical
  • Supply voltage: 2.5-5.5V
  • Typical supply current @ 3V: 20mA
  • Average LNA gain: 25dB
  • Maximum Noise Figure: 2.6dB
  • Maximum VSWR: 2
Mechanical
  • Maximum length: 76mm
  • Weight: 78g
  • Mounting style: 4x4.2mm holes
  • Cable length: 20cm
  • Connector: SMA male
Environmental
  • Operating Temperature: -30 to +85°C
  • Storage Temperature: -40 to +85°C
  • IP Rating: N/A
  • RoHS: Yes

Documentation

Start here:Certifications:
