simpleRTK2B M.2

SKU: AS-RTK2B-M2-L1L2

From 182,00

This product comes with 2 years worldwide warranty

This product has quantity discounts available:
Units Price per unit
<50
182,00
>=50 152,00 Click here for bulk orders
>500 Contact us for special pricing

Includes:

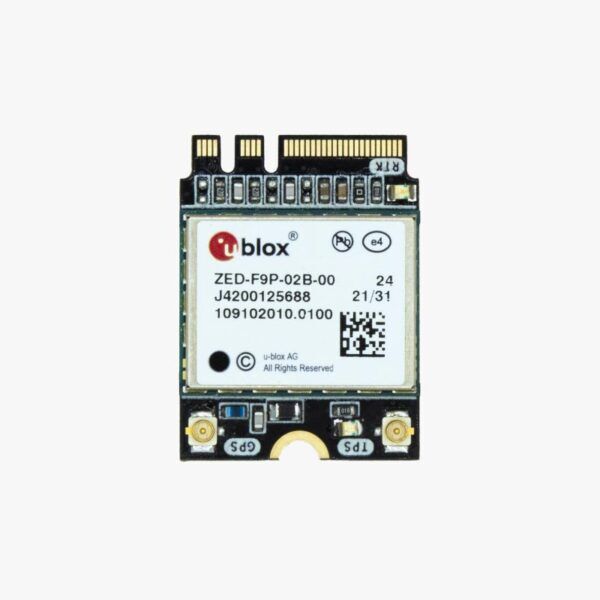

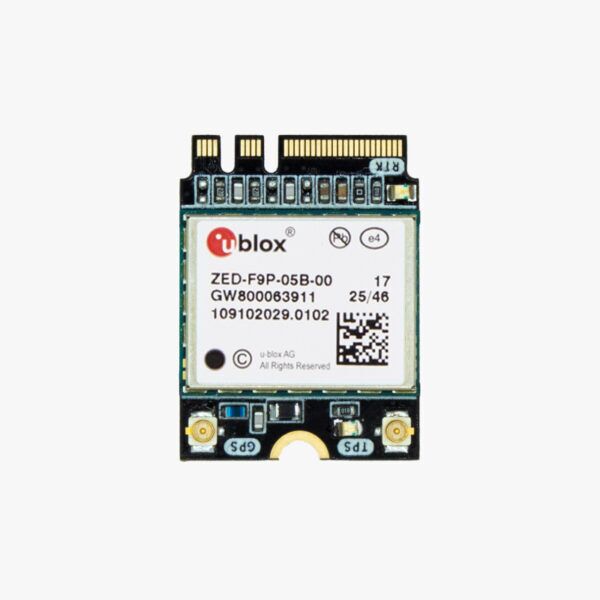

– 1 simpleRTK2B M.2 board

Bring low cost high precision RTK GNSS positioning to your M.2 socket platforms thanks to ZED-F9 and this board fully compatible with M.2 2230 Key A and Key E sockets (Part of NGFF, Next Generation Form Factor). For example, you can easily add RTK to your Asus Tinkerboard or the NVIDIA Jetson Xavier NX.

Good to know:
– You will need a uFL to SMA pigtail to connect it to our Multiband GPS/GNSS antennas.
– Both GPS antenna input and Timepulse output have a uFL connector.
– Bulk pricing starting 50 units

AS-RTK2B-M2-L1L2-F9P-00 AS-RTK2B-M2-L1L2-F9R-00 ASB-RTK2B-M2-L1L2-F9P-00 ASB-RTK2B-M2-L1L2-F9R-00

Specifications

ZED-F9P features
  • Centimeter level precision
    • <1cm with a base station up to 35km
    • <1cm with NTRIP up to 35km
    • <4cm with SSR corrections
    • <1.5m in standalone mode
    • <0.9m standalone with SBAS coverage
  • Update rate
    • Default: 1Hz
    • With maximum performance: up to 10Hz
    • With reduced performance: up to 20Hz
  • Multi band: L1, L2 and E5b support
  • Multifrequency and Multiconstellation:
    • GPS: L1C/A L2C
    • GLONASS: L1OF L2OF
    • Galileo: E1-B/C E5b
    • BeiDou: B1I B2I
    • QZSS:  L1C/A L2C
    • SBAS: WAAS, EGNOS, MSAS, GAGAN and SouthPAN
  • Start-up times:
    • First position fix: 25 seconds (cold), 2 seconds (hot)
    • First RTK fix: 35 seconds (cold)
  • RAW data output in UBX format
  • Base and Rover functionality
  • Operating temperature Range: -40 to +85deg
  • Documentation: RED, RoHS

ZED-F9R features

  • Centimeter level precision
    • <1cm with a base station up to 35km
    • <1cm with NTRIP up to 35km
    • <4cm with SSR corrections
    • <1.5m in standalone mode
    • <0.9m standalone with SBAS coverage
  • Update rate
    • Default: 1Hz
    • Maximum GNSS update rate: 4Hz
    • Maximum fusion update rate: 30Hz
  • Multi band: L1, L2 and E5b support
  • Multifrequency and Multiconstellation:
    • GPS: L1C/A L2C
    • GLONASS: L1OF L2OF
    • Galileo: E1-B/C E5b
    • BeiDou: B1I B2I
    • QZSS: L1C/A L2C
    • SBAS: WAAS, EGNOS, MSAS, GAGAN and SouthPAN
  • Start-up times:
    • First position fix: 25 seconds (cold), 2 seconds (hot)
    • First RTK fix: 35 seconds (cold)
  • Dynamic models: ground vehicle, slow-moving service robots and electric scooters (drones, boats and pedestrians not supported)
  • RAW data output in UBX format
  • No Base Station function, only RTK Rover
  • Operating temperature Range: -40 to +85deg
  • Documentation: RED, RoHS

Documentation

Start here:Certifications:
