simpleRTK3B Heading

From USD $1,287.00

Due to a sudden delay on deliveries from the main subcomponent in this product, we had to introduce a temporary price increase. The product will go back to its regular price before the end of October. Only in this way we can continue delivering orders in 2-4 days to users who need this item for time critical applications. Users that can wait, can continue getting the best price, just contact us if you want to pre-order for November delivery at lower price. We thank you for your understanding.


This product comes with 2 years worldwide warranty

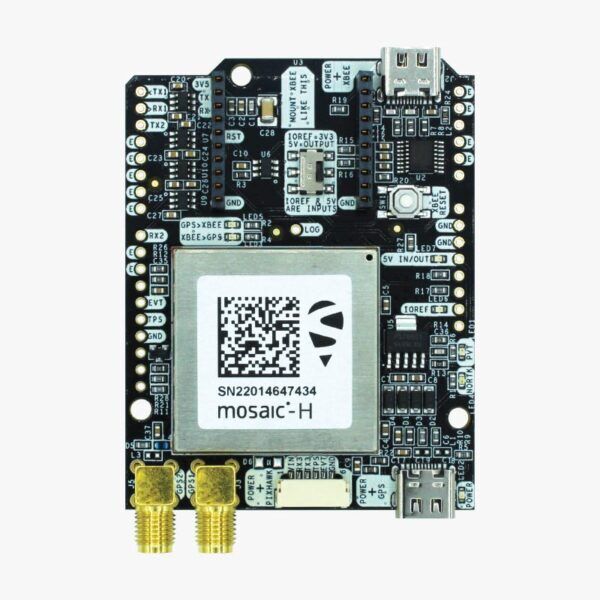

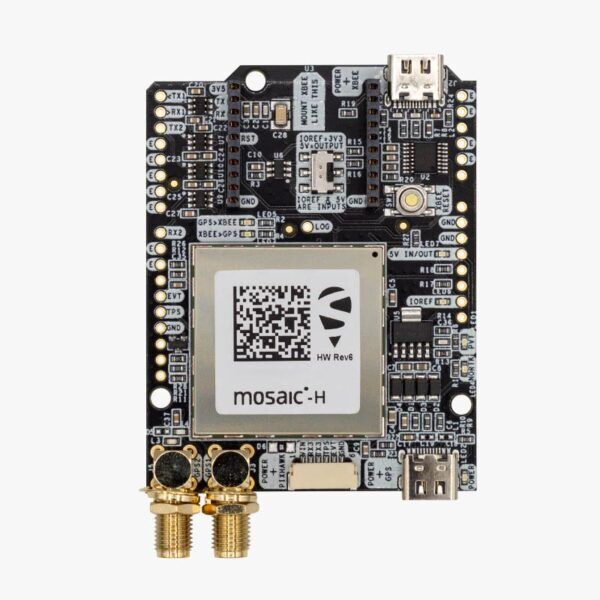

– 1 simpleRTK3B Heading board

simpleRTK3B is a standalone board that allows to evaluate dual band RTK GNSS technology including heading functionality. It’s based on Septentrio mosaic-H module and can be used standalone, or connected with Arduino, Raspberry Pi, Nvidia Jetson Nano and STM32 Nucleo platforms, as a shield.

Check out simpleRTK3B page to learn more.

Good to know:
– This product is compatible but doesn’t include a multiband GNSS antenna, which is necessary to use the product.
– The module will not give good performance with a standard GNSS antenna, requires a L1/L2/E5b antenna.
– This product is compatible but doesn’t include radio, which is necessary to connect to another base.
– This board is recommended if you want to test Septentrio mosaic-H performance.
– This product only works as Rover, can’t be used as Base Station.
– Compatible with all Ardusimple XBee socket accessories (4G modem, MR/LR/XLR radios, Bluetooth, WiFi, Ethernet, Dataloggers, RS232)
– Compatible with Ardusimple plastic case
– 2 x USB type C connector
– Ardupilot compatible via JST-GH standard connector


  • Get started with the Hookup Guide
  • If you plan to connect with ArduPilot check ArduPilot simpleRTK3B Heading configuration
  • Related tutorials:
  • Send RTK base station corrections to ArduPilot with Mission Planner, QGroundControl and MAVProxy
  • Send NTRIP corrections to ArduPilot with MissionPlanner, QGroundControl and MAVProxy
  • ArduPilot simpleRTK3B Heading configuration
  • Connect your simpleRTK2B/3B to a Raspberry Pi
  • How to configure simpleRTK3B as static base station
  • Connecting simpleRTK3B to PinPoint GIS via Bluetooth
  • How to load antenna calibration files to simpleRTK3B receivers
  • How to generate RINEX files with simpleRTK3B
  • Share your base station with RTK2go
