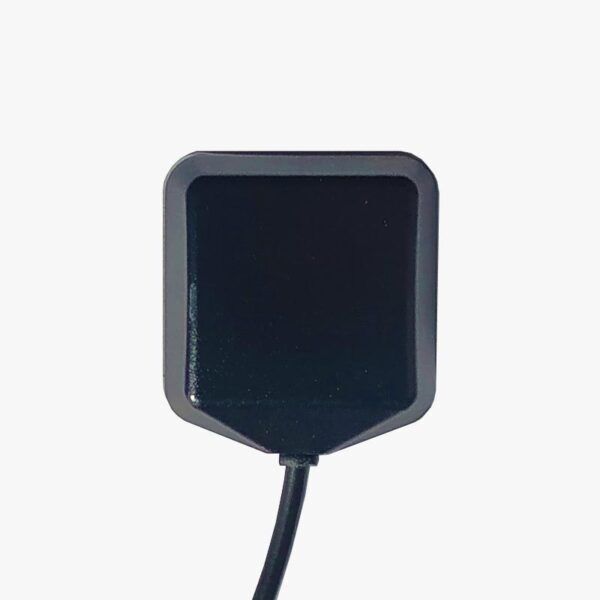

L-band Magnetic Patch Antenna (IP65)

SKU: AS-ANT-MAGLB-L6-30SMA-00
48,00€

Availability: In stock

In stock!
payment methods
2 years worldwide warranty
We ship from Spain. Expected delivery to : October 17 - October 21
This product has quantity discounts available:
<50 units 48,00€
>=50 units Contact us for special pricing
>500 units Contact us for special pricing
Got any questions? Contact us! - a real human (not AI) will answer in <24 hours!
Description

External L-band antenna with cover and IP65 protection.

Good to know:
– Compatible with u-blox NEO-D9S and u-blox NEO-D9C. Also compatible with other L-band receivers in the market.
– For optimum performance place on top of a metallic surface with minimum 150 mm diameter.

AS-ANT-MAGLB-L6-30SMA-00

Includes:
– L-band external antenna with 3m cable and SMA Male connector

Specifications
Magnetic L-band
Antenna element
  • Supported correction signal bands:
    • L-band (PointPerfect, for others contact us)
  • Frequency range:
    • 1525-1559 MHz
  • Polarization: RHCP
  • Peak gain: 2.0dBi (without ground plane)
  • Axial Ratio @ zenith: <3dB
  • Azimuth Coverage: 360 degrees
  • Impedance: 50 ohm
Electrical
  • Supply voltage: 3-5V
  • Typical supply current @ 3V: 15mA
  • Average LNA gain: 27dB
  • Maximum Noise Figure: 2.0dB
  • Maximum VSWR: 2
Mechanical
  • Maximum length: 37.5mm
  • Weight: 67g
  • Mounting style: magnetic base
  • Cable length: 3 meters
  • Connector: SMA male
Environmental
  • Operating Temperature: -40 to +85°C
  • Storage Temperature: -40 to +85°C
  • IP Rating: IP65
  • RoHS: Yes
Documentation
Start here:
User Guide Datasheet Request CAD model
