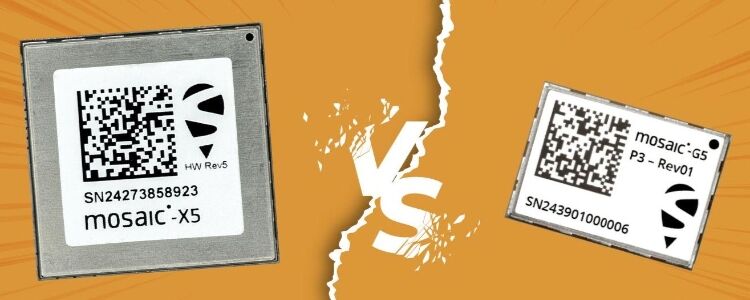

Comparison of mosaic-X5/H and mosaic-G5 P3/P3H
The new Septentrio mosaic-G5 series is not a replacement for mosaic-X5 and mosaic-H receivers, but rather a complement for mass market applications that require lower cost and lower power. Septentrio mosaic-X5 remains your choice for high performance and high reliability applications like surveying or heavy machinery. But let’s have a look at the differences in more detail:
mosaic-G5 P3: highly reliable position at 20Hz
The mosaic-G5 P3 is an all band (L1, L2, L5, L6) GPS and GNSS receiver with RTK. It offers highly reliable and accurate positioning every 50 milliseconds. Ideal for autonomous navigation, especially for commercial UAV and robotics. It also provides RAW satellite data for postprocessing and external advanced sensor fusion.
mosaic-G5 P3H: highly reliable position and orientation (heading + roll/pitch) at 20Hz
The mosaic-G5 P3H is also an all band (L1, L2, L5, L6) GPS and GNSS receiver with RTK. But in addition, it has a secondary antenna input to calculate calculate heading and pitch/roll. It offers highly reliable and accurate positioning and heading (vehicle orientation) every 50 milliseconds. Ideal for autonomous navigation, especially for commercial UAV and robotics. This variant doesn’t provide RAW satellite data, but is quite useful for external IMU calibration. Unlike other dual antenna receivers in the market, which only work well when both antennas are connected, and interesting feature of mosaic-G5 P3H is the possibility to disable the secondary antenna input for a high performance single antenna solution.
After all this marketing information, let’s have a look at the most important specifications side by side:
Septentrio mosaic-X5 vs. mosaic-G5 P3
|
|
mosaic-X5
|
mosaic-G5 P3
|
|---|---|---|
|
Bands supported
|
L1,L2,L5,L6
|
L1,L2,L5,L6
|
|
Galileo HAS
|
not supported
|
Firmware upgrade in 2026
|
|
Accuracy
|
0.6cm
|
0.6cm
|
|
Maximum update rate
|
100Hz
|
20Hz
|
|
Number of channels
|
448
|
789
|
|
Acquisition sensitivity (lower is better)
|
33dBm
|
30dBm
|
|
Anti-jamming and anti-spoofing
|
●●●
|
●●
|
|
Base/Rover
|
Base and Rover
|
Rover only
|
|
Protocols
|
NMEA, SBF, RINEX, RTCM, CMR
|
NMEA, SBF, RTCM input
|
|
Web interface and Ethernet
|
Yes
|
No
|
|
RAW data
|
Yes in RINEX format
|
Yes in SBF format
|
Septentrio mosaic-H vs. mosaic-G5 P3H
|
|
mosaic-H
|
mosaic-G5 P3H
|
|---|---|---|
|
Bands supported
|
L1,L2,E5b (subset of L5)
|
L1, L2, L5, L6
|
|
Galileo HAS
|
not supported
|
Firmware upgrade in 2026
|
|
Accuracy
|
0.6cm
|
0.6cm
|
|
Heading accuracy with 1 meter distance between antennas
|
0.15deg
|
0.15deg
|
|
Maximum update rate
|
100Hz
|
20Hz
|
|
Number of channels
|
448
|
789
|
|
Acquisition sensitivity (lower is better)
|
33dBm
|
30dBm
|
|
Anti-jamming and anti-spoofing
|
●●●
|
●●
|
|
Base/Rover
|
Base and Rover
|
Rover only
|
|
Protocols
|
NMEA, SBF, RINEX, RTCM, CMR
|
NMEA, SBF, RTCM input
|
|
Web interface and Ethernet
|
Yes
|
No
|
|
RAW data
|
Yes
|
No
|
Want to try mosaic-G5 P3 or mosaic-G5 P3H?
Explore affordable and low power all-band GPS/GNSS RTK evaluation boards that allow you to reach millimeter-level accuracy based on Septentrio mosaic-G5. Learn How to configure Septentrio mosaic-G5.
-
