Radio Links
Build your own base station
RTK GPS/GNSS technology needs a base station that generates correction data, for the rovers to achieve centimeter lever accuracy. If you don’t have access to an online RTK correction service (NTRIP), you can build you own base station with one of our boards, as all our boards can be configured as rover or as a base. But how will you connect the base and the rovers? Choose one of our radio links to make your life easier.
Medium Range radio
- Up to 1'000m LoS (Line of Sight)
- Point-to-point communication
- 2.4GHz global solution
Long Range radio
- Up to 10km LoS
- Multirover functionality
- Variants for Europe, North America and APAC

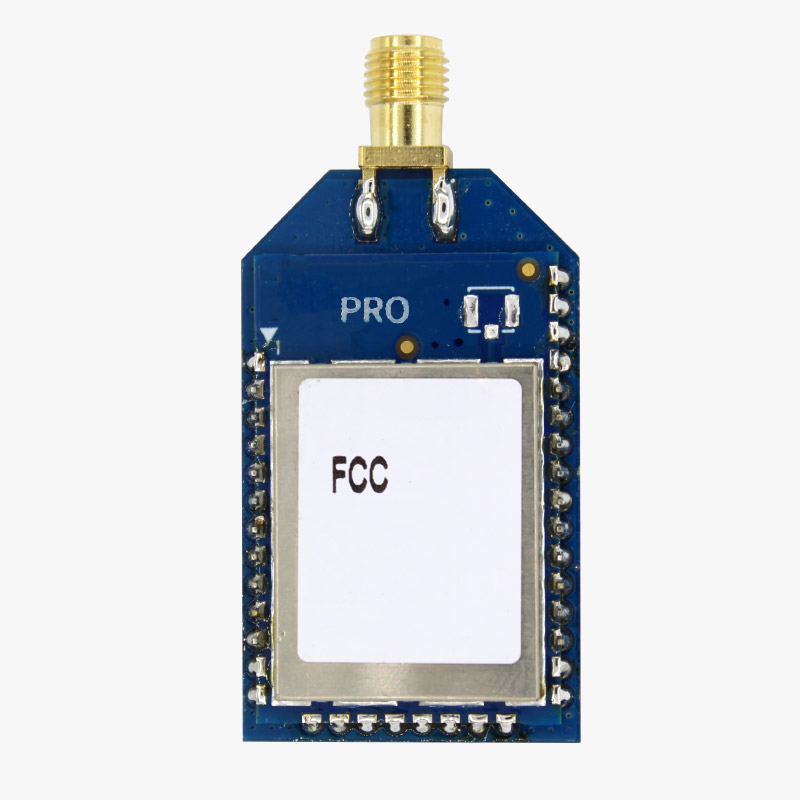

eXtra Long Range radio
- Up to 50km LoS
- Multirover functionality
- Variants for North America and Australia
or connect to your neighbouring NTRIP service
If you have already access to an RTK correction service (NTRIP caster), you don’t need your own base station. Just connect your rover with a PC, or connect one of our add-ons to the Plugin socket to make your life simpler.
Bluetooth 2.0
- Bluetooth 2.0 serial port (SPS)
- Use your favorite app in your phone, tablet or PC wirelessly

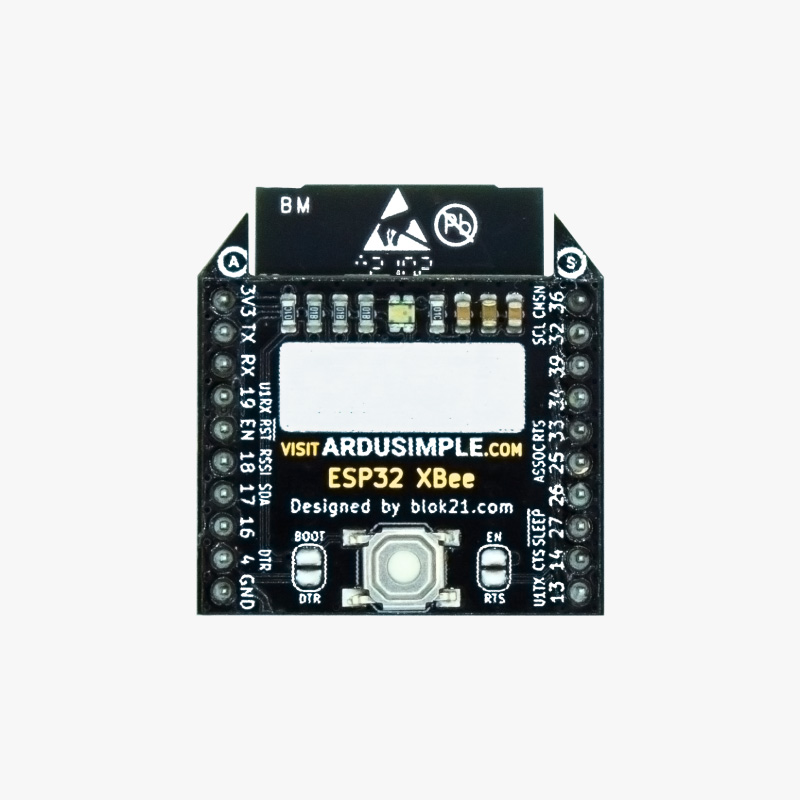

WiFi NTRIP Master
- Serial bridge to WiFi
- NTRIP client/server/caster
- TCP/UDP client/server
- 2.4Ghz WiFi
Ethernet NTRIP Master
- Serial bridge to Ethernet
- NTRIP client/server
- TCP/UDP client/server
- 10/100 Base-T up to 100 meters
- PointPerfect client
4G NTRIP Master
- Serial bridge to 4G/3G/2G
- NTRIP client/server
- TCP/UDP client
- 4G/3G/2G connectivity
- PointPerfect client
too complex? Just get our literally plug & play RTK kits
If your use case makes it too complex to have access to a base station, or you simply don’t want the hassle of the base station installation, try our simpleSSR receivers with integrated RTK-SSR correction service.
simpleSSR Starter Kit incl. 1 year unlimited RTK corrections
Available now
- Centimeter Precision out of the box
- Coastal waters coverage up to 20km from the coastline
- Variants for North America and Europe
Do you need more details?
Do you know more or less what you want but you are missing this extra detail to decide which accessory or starter kit you need? Check out our RTK Explained page where you will find all the possible combinations.
And if you don’t find what you are looking for, contact us, we always answer.
