4G/LTE NTRIP – RTK Starter Kit

SKU: AS-STARTKIT-4G-L1L2

Centimeter precision GPS tracker with RTK and integrated 4G/LTE communications.

4G network region

420,00€

Availability: In stock

This interactive table will help you choose the right 4G network region, depending on the frequencies available in your country.

Choose your country/region:

Country/Region	Recommended 4G Network Option
- - -	-

After checking the frequencies in the interactive table don't forget to pick manually the preferred 4G network region in the above select box!

*We have created this table on a best effort basis but we are not responsible of possible mistakes or changes in spectrum legislation.
You can contact us if you find any error.

	2 years worldwide warranty
	We ship from Spain. Expected delivery to :

	This product has quantity discounts available:
	<50 units	420,00€
	>=50 units	Contact us for special pricing
	>500 units	Contact us for special pricing
	Got any questions? Contact us! - a real human (not AI) will answer in <24 hours!

Description

If you are looking for a board with ZED-F9P that autonomously connects to a server to download correction data, or automatically pushes its centimeter accurate location to a server, this is your product.

Using the same technology that your mobile phone is using, simply introduce a cellular SIM card into the device, configure it using a configuration tool (no programming involved!), and let the kit do the job for you.

The Ardusimple simpleRTK2B – 4G NTRIP Starter Kit, in any area with cellphone coverage, is able to do autonomously:

NTRIP Client (to get corrections from your preferred correction service)
NTRIP Server (to send your base corrections to a NTRIP caster like RTK2go.com)
TCP socket client (to send position or any other message to your server)
PointPerfect Client

Good to know:
– You will need a SIM card with internet access capabilities to use this product (MicroSIM form factor)
– Compatible with u-blox Thingstream PointPerfect augmentation service

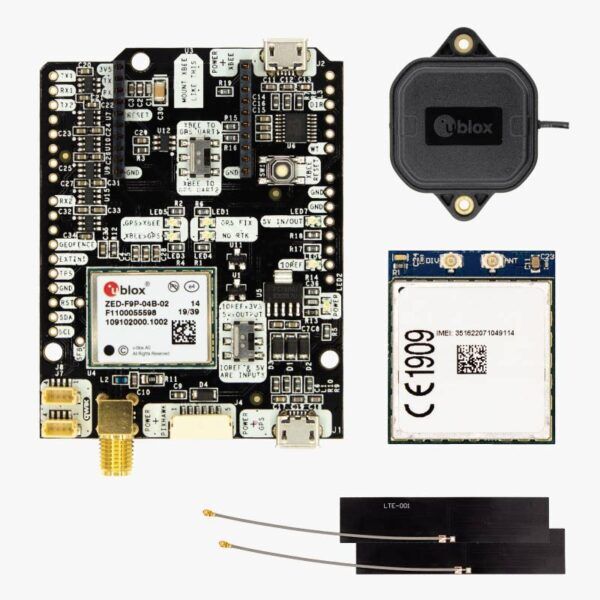

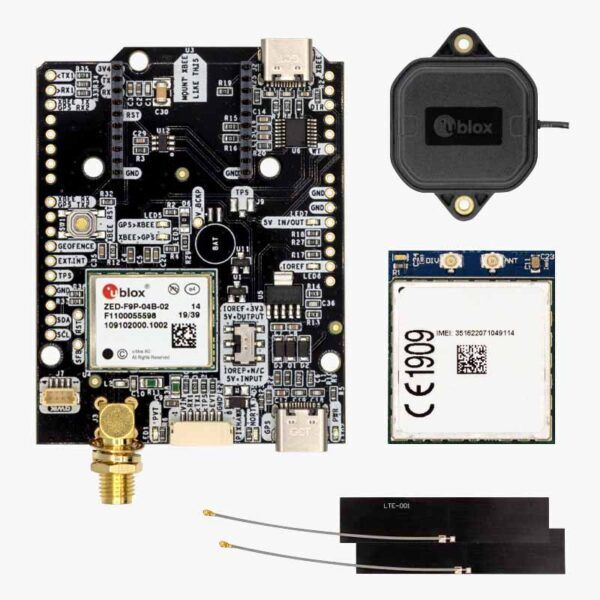

Includes:
– 1 simpleRTK2B Pro board
– 1 u-blox GNSS Multiband antenna ANN-MB-00 (IP67)
– 1 4G NTRIP Master (4G radio module with NTRIP client) including 2 units 4G antennas with integrated cable

Specifications

ANN-MB
Antenna element

Supported positioning signal bands:
- GPS: L1, L2
- GLONASS: G1, G2
- BeiDou: B1, B2
- Galileo: E1, E5b
- QZSS: L1, L2
- SBAS: WAAS, EGNOS, MSAS and GAGAN
Frequency range:
- 1559-1606 MHz
- 1197-1249 MHz
Polarization: RHCP
Peak gain: 2.0dBi (without ground plane)
Axial Ratio @ zenith: <3dB
Azimuth Coverage: 360 degrees
Impedance: 50 ohm

Electrical

Supply voltage: 3-5V
Typical supply current @ 3V: 15mA
Average LNA gain: 28dB
Maximum Noise Figure: 3.2dB
Maximum VSWR: 2

Mechanical

Maximum length: 82mm
Weight: 173g
Mounting style: magnetic base or 2x4.5mm holes
Cable length: 5 meters
Connector: SMA male

Environmental

Operating Temperature: -40 to +85°C
Storage Temperature: -40 to +85°C
IP Rating: IP67
RoHS: Yes

4G NTRIP Master features

LTE FDD Cat.4 with dual antenna for Rx Diversity and MIMO
Compatible with 2G, 3G and 4G networks
Integrated SIM holder: MicroSIM
Antenna type: external passive
Antenna connector (modem side): uFL / IPEX
Frequency (Europe variant):
1. For Europe, but also Middle East & Asia, compatible with:
2. 4G Bands (MHz): B1(2100), B3(1800), B7(2600), B8(900), B20(800)
3. 3G Bands (MHz): B2(2100), B8(900)
4. 2G Bands (MHz): B3(1800), B8(900)
Frequency (North America variant):
1. For USA* & Canada, compatible with 4G and 3G networks.
2. 4G Bands (MHz): B2(1900), B4(1700), B5(850), B12/B13 (700)
3. 3G Bands (MHz): B2(1900), B5(850)
4. * Only compatible with AT&T, T-Mobile and virtual operators working on these networks. Not compatible by default with Verizon SIM cards, contact us in this case.
Operating temperature Range: -40 to +85degC
Documentation: RED, RoHS, FCC, IC, PTCRB

ZED-F9P features

Centimeter level precision
- <1cm with a base station up to 35km
- <1cm with NTRIP up to 35km
- <4cm with SSR corrections
- <1.5m in standalone mode
- <0.9m standalone with SBAS coverage
Update rate
- Default: 1Hz
- With maximum performance: up to 10Hz
- With reduced performance: up to 20Hz
Multi band: L1, L2 and E5b support
Multifrequency and Multiconstellation:
- GPS: L1C/A L2C
- GLONASS: L1OF L2OF
- Galileo: E1-B/C E5b
- BeiDou: B1I B2I
- QZSS: L1C/A L2C
- SBAS: WAAS, EGNOS, MSAS, GAGAN and SouthPAN
Start-up times:
- First position fix: 25 seconds (cold), 2 seconds (hot)
- First RTK fix: 35 seconds (cold)
RAW data output in UBX format
Base and Rover functionality
Operating temperature Range: -40 to +85degC
Documentation: RED, RoHS

Documentation

Start here:

User Guide

Datasheet

Check the Antenna Installation Guide
Configuration files

Certifications:

Related tutorials:

Accessories:
