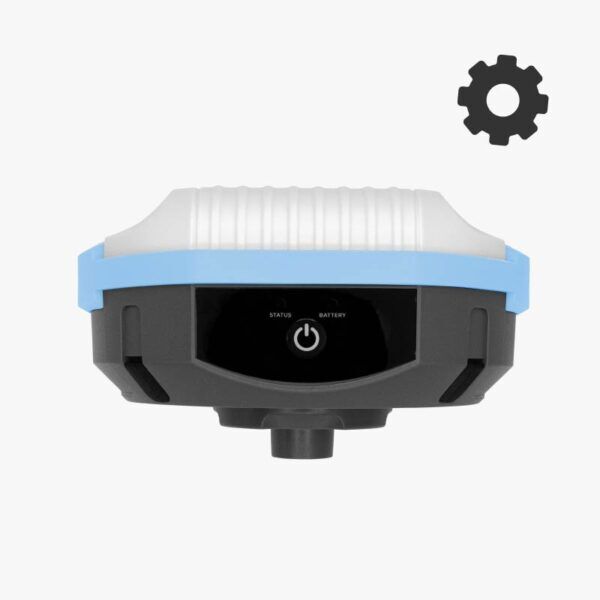

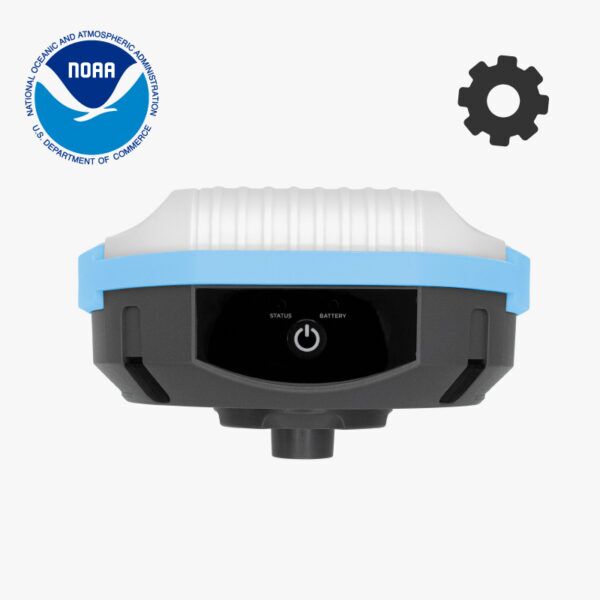

RTK Smart Antenna Configurable
From 728€
Availability: In stock
Availability: In stock
In stock
 | 2 years worldwide warranty | |
 | We ship from Spain. Expected delivery to : | |
 | This product has quantity discounts available: | |
| <50 units | 699,00€ | |
| >=50 units | Contact us for special pricing | |
| >500 units | Contact us for special pricing | |
 | Got any questions? Contact us! - a real human (not AI) will answer in <24 hours! | |
Build your own RTK Smart Antenna with the exact components you need.
Tailor the popular RTK Smart Antenna product to your exact needs by choosing your preferred GNSS receiver and accessories.
For Android users, use your preferred app and connect to the receiver via USB or Bluetooth.
For iOS users, currently only connection over BLE is possible, and only SW Maps app is supported.
If you use any Windows or Linux device, you can also connect the smart antenna either via USB or Bluetooth.
Good to know:
– Use it as a NTRIP RTK Rover, base station or PPK (post-processing), fits all surveyor poles with 5/8” x 11TPI thread
– Survey grade antenna that guarantees best performance
– You can use Bluetooth or BLE (compatible with Android, iOS, Windows and Linux devices), they are included in the product
– Surveying pole is not included (you can purchase it here)
– You can also use a tablet with this kit (find our tablet holder here)
– Smartphone is not included
Build your own RTK Smart Antenna with the exact components you need.
- Millimeter level precision:
- <1cm with a base station up to 35km
- <1cm with NTRIP up to 35km
- <1.2m in standalone mode
- <0.6m standalone with SBAS coverage
- Update rate
- Default: 1Hz
- With maximum performance: up to 50Hz
- Multi band: L1, L2 and L5 support, 1408 hardware channels
- Multifrequency and Multiconstellation:
- GPS: L1C/A L1PY L2C L2PY L5
- GLONASS: L1CA L2CA L2P L3 CDMA
- Galileo: E1 E5a E5b E5 E6 HAS
- BeiDou: B1I B1C B2a B2b B2I B3I
- QZSS: L1C/A L2C L5
- Navic: L5
- SBAS: WAAS, EGNOS, MSAS, GAGAN, SDCM (L1)
- Start-up times:
- Cold start: <35s
- Warm start: <10s
- Re-acquisition: 1s
- Protocols
- Unicore Format
- NMEA 0183
- RTCM v3
- Base and Rover functionality
- Operating temperature Range: -40 to +85 deg C
- Certification: CE
- Documentation: RED, RoHS
- Centimeter level precision
- <1cm with a base station up to 35km
- <1cm with NTRIP up to 35km
- <4cm with SSR corrections
- <1.5m in standalone mode
- <0.9m standalone with SBAS coverage
- Update rate
- Default: 1Hz
- With maximum performance: up to 10Hz
- With reduced performance: up to 20Hz
- Multi band: L1, L2 and E5b support
- Multifrequency and Multiconstellation:
- GPS: L1C/A L2C
- GLONASS: L1OF L2OF
- Galileo: E1-B/C E5b
- BeiDou: B1I B2I
- QZSS: L1C/A L2C
- SBAS: WAAS, EGNOS, MSAS, GAGAN and SouthPAN
- Start-up times:
- First position fix: 25 seconds (cold), 2 seconds (hot)
- First RTK fix: 35 seconds (cold)
- RAW data output in UBX format
- Base and Rover functionality
- Operating temperature Range: -40 to +85degC
- Documentation: RED, RoHS
- Centimeter level precision:
- <1cm with a base station up to 35km
- <1cm with NTRIP up to 35km
- <4cm with SSR corrections
- <1.5m in standalone mode
- <0.9m standalone with SBAS coverage
- Update rate
- Default: 1Hz
- With maximum performance: up to 25Hz
- Multi band: L1, L2, L5 and L6 support
- Multifrequency and Multiconstellation:
- GPS: L1C/A L2C L5
- Galileo: E1-B/C E5a E6
- BeiDou: B1I B1C B2a B3I
- QZSS: L1C/A L2C/B L2C L5 L6
- Navic: SPS-L5
- SBAS: WAAS, EGNOS, MSAS, GAGAN and SouthPAN
- Start-up times:
- First position fix: 25 seconds (cold), 2 seconds (hot)
- Warm start: <10s
- First RTK fix: 35 seconds (cold)
- RAW data output in UBX format
- Base and Rover functionality
- Operating temperature Range: -40 to +85degC
- Certification: CE
- Documentation: RED, RoHS
