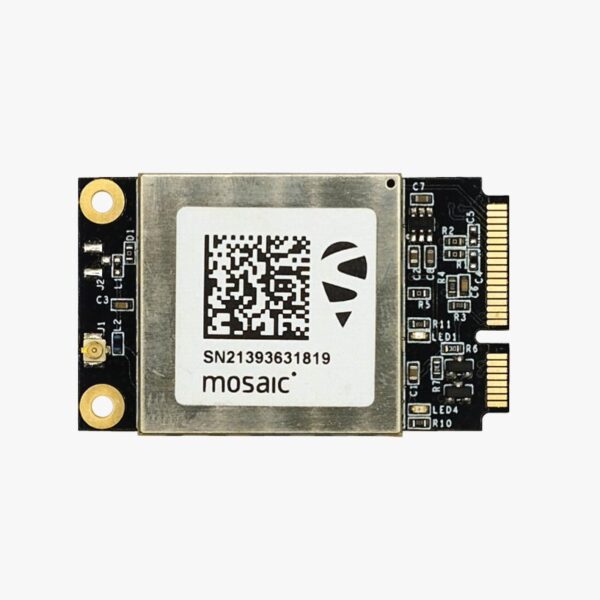

mosaicX5 mpcie top
simpleRTK3B mPCIe dimensions
mosaicX5 mpcie bottom
mosaicX5 mpcie perspective
pinout-simpleRTK3B_mPCIe-R00

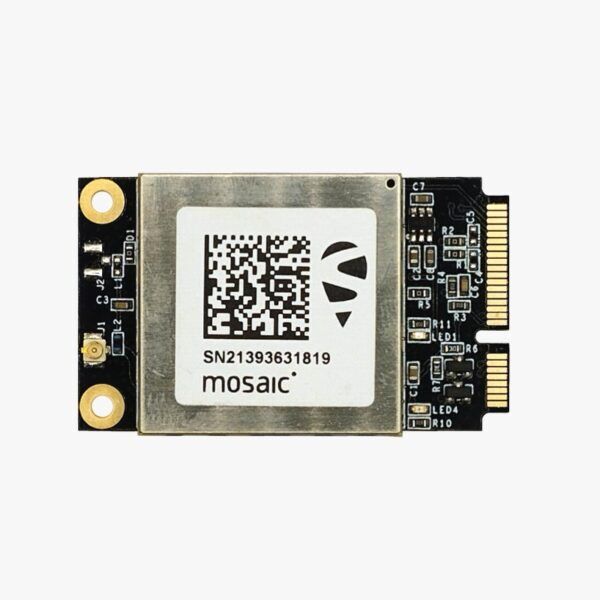

mosaicX5 mpcie top
simpleRTK3B mPCIe dimensions
mosaicX5 mpcie bottom
mosaicX5 mpcie perspective
pinout-simpleRTK3B_mPCIe-R00

simpleRTK3B mPCIe

SKU: AS-RTK3B-MPCIE

Mini PCI Express card with Septentrio Mosaic-X5. Geodetic RTK position for your embedded computer with mPCIe socket.

Mosaic variant
From 575,00€
Availability: In stock
In stock!
payment methods
2 years worldwide warranty
We ship from Spain. Expected delivery to
:
This product has quantity discounts available:
<50 units 575,00€
>=50 units Contact us for special pricing
>500 units Contact us for special pricing
Got any questions? Contact us! - a real human (not AI) will answer in <24 hours!
SMA uFL 0.1m pigtail
uFL to SMA antenna cable
Use this cable to connect your SMA antenna
13,00€
Description

Bring low cost high precision RTK GNSS positioning to your Mini PCI Express platforms thanks to Septentrio Mosaic and this board fully compatible with MiniPCIe full-size sockets.

Good to know:
– You will need a uFL to SMA pigtail to connect it to our Multiband GPS/GNSS antennas.
– Bulk pricing starting 50 units

Includes:
– 1 simpleRTK3B mPCIe board

AS-RTK3B-MPCIE-L1L2-MH-00 AS-RTK3B-MPCIE-L125-MX5-00
Specifications
Mosaic-H features
  • Millimeter level precision
    1. <1cm with a base station up to 35km
    2. <1cm with NTRIP up to 35km
    3. <1.2m in standalone mode
    4. <0.6m standalone with SBAS coverage
  • GNSS attitude accuracy
    1. 1m antenna separation: 0.15deg heading, 0.25deg pitch/roll
    2. 5m antenna separation: 0.03deg heading, 0.05deg pitch/roll
  • Update rate
    1. Default: 1Hz
    2. Standalone, SBAS, GPS + attitude: up to 50Hz
    3. RTK+attitude: up to 20Hz
  • Multi band: L1, L2 and E5b support, 448 hardware channels
  • Multifrequency and Multiconstellation:
    1. GPS: L1 L2
    2. GLONASS: L1 L2
    3. Galileo: E1 E5b
    4. BeiDou: B1 B2
    5. QZSS:  L1 L2
    6. SBAS: WAAS, EGNOS, MSAS, GAGAN, SDCM (L1)
  • Start-up times:
    1. Cold start: <45s
    2. Warm start: <20s
    3. Re-acquisition: 1s
  • Protocols:
    1. Septentrio Binary Format (SBF)
    2. NMEA 0183, v2.3, v3.03, v4.0
    3. RINEX v2.x, v3.x
    4. RTCM v2.x, v3.x (MSM included)
    5. CMR v2.0 (out/in), CMR+ (input only)
  • Interfaces (check user guide to verify which are available):
    • USB
    • UART
    • XBee
    • Timepulse
    • Event
  • Base and Rover functionality
  • Operating temperature Range: -40 to +85degC
  • Certification: CE, WEEE, ISO 9001-2015
  • Documentation: RED, RoHS
Mosaic-X5 features
  • Millimeter level precision
    1. <1cm with a base station up to 35km
    2. <1cm with NTRIP up to 35km
    3. <1.2m in standalone mode
    4. <0.6m standalone with SBAS coverage
  • Update rate
    1. Default: 1Hz
    2. With maximum performance: up to 100Hz
  • Multi band: L1, L2 and L5 support, 448 hardware channels
  • Multifrequency and Multiconstellation:
    1. GPS: L1C/A L1PY L2C L2P L5
    2. GLONASS: L1CA L2CA L2P L3 CDMA
    3. Galileo: E1 E5a E5b E5 AltBloc E6
    4. BeiDou: B1I B1C B2a B2I B3
    5. QZSS:  L1C/A L2C L5
    6. Navic: L5
    7. SBAS: WAAS, EGNOS, MSAS, GAGAN, SDCM (L1 L5)
  • Start-up times:
    1. Cold start: <45s
    2. Warm start: <20s
    3. Re-acquisition: 1s
  • Protocols:
    1. Septentrio Binary Format (SBF)
    2. NMEA 0183, v2.3, v3.03, v4.0
    3. RINEX v2.x, v3.x
    4. RTCM v2.x, v3.x (MSM included)
    5. CMR v2.0 (out/in), CMR+ (input only)
  • Interfaces (check user guide to verify which are available):
    • USB
    • UART
    • XBee
    • Timepulse
    • Event
  • Base and Rover functionality
  • Operating temperature Range: -40 to +85degC
  • Certification: CE, WEEE, ISO 9001-2015
  • Documentation: RED, RoHS
Documentation
Start here:
User Guide Datasheet Request CAD model
