CANBus GNSS Master

SKU: AS-XBEE-CAN-DB9-00
Original price was: 175,00€.Current price is: 156,00€.

Availability: In stock

payment methods
2 years worldwide warranty
Expected delivery to : September 19 - September 23
This product has quantity discounts available:
<50 units 156,00
>=50 units Contact us for special pricing
>500 units Contact us for special pricing
Got any questions? Contact us! - a real human (not AI) will answer in <24 hours!
Description

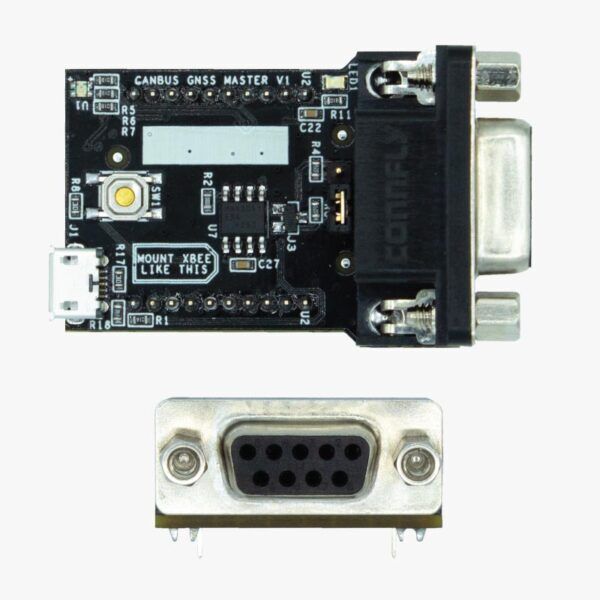

With ArduSimple CANBus GNSS Master, you will be able to add CANBus functionality to any device with XBee socket or serial port: RTK receiver, sensor, Arduino, or any other embedded platform.

Without any programming involved, and simply using a configuration tool, CANBus GNSS Master can be used as:

  • Push GNSS data into the CANBus
  • Read data from the CANBus

For example, it could be used as a NMEA0183 to NMEA2000 converter. Contact us with your specific use case and we will be happy to guide you.

Good to know:
– Compatible with NMEA2000 and SAE J1939
– Default configuration is at 115’200bps
– Compatible with all ArduSimple products with XBee socket

AS-XBEE-CAN-DB9-00 ASB-XBEE-CAN-DB9-00

Includes:
– CANBus GNSS Master
– USB-C Carrier Board for XBee Plugins
– USB to USB-C cable
– USB to MicroUSB cable

Specifications
Interfaces:Hardware features
  • CAN 2.0A and B
  • Bitrate up to 1 Mbit/s
  • Support for standard 11-bit and extended 29-bit frame identifiers
  • Voltage supply (VCC): 3.0 - 3.6V
  • Power consumption: 150mA typ
  • UART voltage: same as VCC
Documentation
Start here:
Datasheet Download CAD model
