simpleRTK 4 Dual – RTK Heading Starter Kit
First dual antenna GPS heading evaluation kit with all-band u-blox ZED-X20D and ANN-MB2, for centimeter precision and out-of-the-box moving baseline (heading, orientation, north indicator, compass, roll, pitch, yaw).
 | 2 years worldwide warranty | |
| We ship from Spain. Expected delivery to : | |
| This product has quantity discounts available: | |
| <50 units | 399€ | |
| >=50 units | Contact us for special pricing | |
| >500 units | Contact us for special pricing | |
| Got any questions? Contact us! - a real human (not AI) will answer in <24 hours! | |
ArduSimple simpleRTK 4 Dual – RTK Heading Starter Kit is a ready to use evaluation kit including a dual antenna GPS/RTK receiver and two high performance GPS/RTK antennas.
With antennas placed at 1 meter distance, the kit is able to calculate out of the box the true north / heading, with an accuracy of 0.1 degrees. Shorter distance between antennas is possible but performance will be reduced. The kit doesn’t require calibration, and doesn’t have drift, unlike IMU- and magnetometer- based systems.
The kit is ideal to complement autopilots to get YAW information, in addition to position information.
The kit also provides position using all-band GNSS technology, down to 1 meter of error when used standalone, and down to 1 centimeter of error when connected to a RTK base station.
This tripleband GPS kit can be used standalone connected to a PC or powerbank. And is also fully compatible with Arduino, STM32 Nucleo, Raspberry Pi, Nvidia Jetson, ROS and Pixhawk / Ardupilot.
Known limitations:
– Not possible to connect to VRS mountpoints over XBee socket (Bluetooth, WiFi, 4G).
Includes:

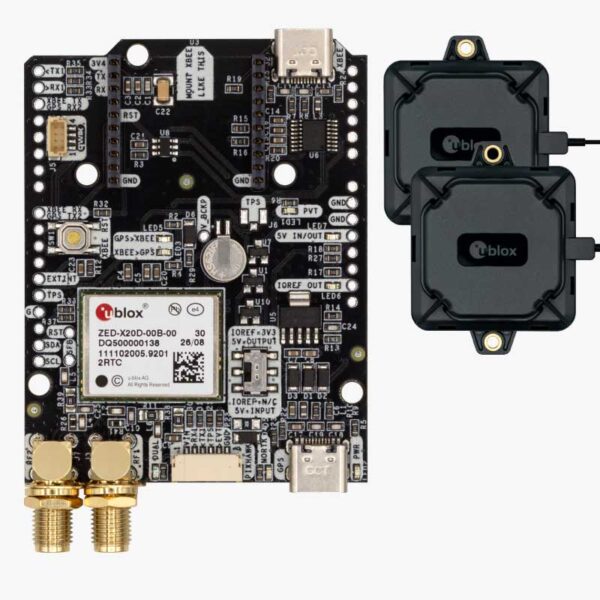

– 1 simpleRTK 4 Dual board (ZED-X20D)
– 2 u-blox ANN-MB2-00 Tripleband GNSS antenna
- USB
- UART
- XBee
- Timepulse
- Event
- Centimeter level precision:
- <1cm with a base station up to 35km
- <1cm with NTRIP up to 35km
- <4cm with SSR corrections
- <1.5m in standalone mode
- <0.9m standalone with SBAS coverage
- Update rate
- Default: 1Hz
- With maximum performance: up to 10Hz
- GNSS attitude accuracy:
- 1m antenna separation: 0.14deg heading, 0.23deg pitch/roll
- 5m antenna separation: 0.03deg heading, 0.05deg pitch/roll
- Multi band: L1, L2, L5 and L6 support
- Multifrequency and Multiconstellation:
- GPS: L1C/A L2C L5
- GLONASS*: L1OF, L2OF (*disables in areas under sanction)
- Galileo: E1-B/C E5a E6 HAS
- Glonass: L1OF L2OF
- BeiDou: B1I B1C B2a B3I
- QZSS: L1C/A L2C/B L2C L5
- Navic: L1-SPS L5-SPS
- SBAS: WAAS, EGNOS, MSAS, GAGAN and SouthPAN
- Start-up times:
- First position fix: 25 seconds (cold), 2 seconds (hot)
- Warm start: <10s
- First RTK fix: 35 seconds (cold)
- RAW data output in UBX format
- Base and Rover functionality
- Operating temperature Range: -40 to +85degC
- Certification: CE
- Documentation: RED, RoHS
Antenna element
- Supported positioning signal bands:
- GPS: L1, L2, L5
- GLONASS: G1, G2, G3
- BeiDou: B1, B2, B3
- Galileo: E1, E5, E6
- QZSS: L1, L2
- Navic: L5
- L-Band: L6
- SBAS: WAAS, EGNOS, MSAS and GAGAN
- Frequency range:
- 1535-1602 MHz
- 1166-1285 MHz
- Polarization: RHCP
- Peak gain: 4.5dBi (without ground plane)
- Axial Ratio @ zenith: <3dB
- Azimuth Coverage: 360 degrees
- Impedance: 50 ohm
- Supply voltage: 3-5V
- Typical supply current @ 3V: 15mA
- Average LNA gain: 31dB
- Maximum Noise Figure: 3dB
- Maximum VSWR: 2
- Maximum length: 109mm
- Weight: 260g
- Mounting style: magnetic base or 2x5.5mm holes
- Cable length: 5 meters
- Connector: SMA male
- Operating Temperature: -40 to +85°C
- Storage Temperature: -40 to +85°C
- IP Rating: IP67
- RoHS: Yes
Certifications:Accessories:
