simpleGNSS – Basic Starter Kit

SKU: AS-STARTKIT-BASICGNSS-L1L5-NH-00
Original price was: 99,00€.Current price is: 90,00€.

Availability: Subcomponents in stock, assembly time 10 days

payment methods
2 years worldwide warranty
Expected delivery to : September 18 - September 22
This product has quantity discounts available:
<50 units 90,00
>=50 units Contact us for special pricing
>500 units Contact us for special pricing
Got any questions? Contact us! - a real human (not AI) will answer in <24 hours!
Description

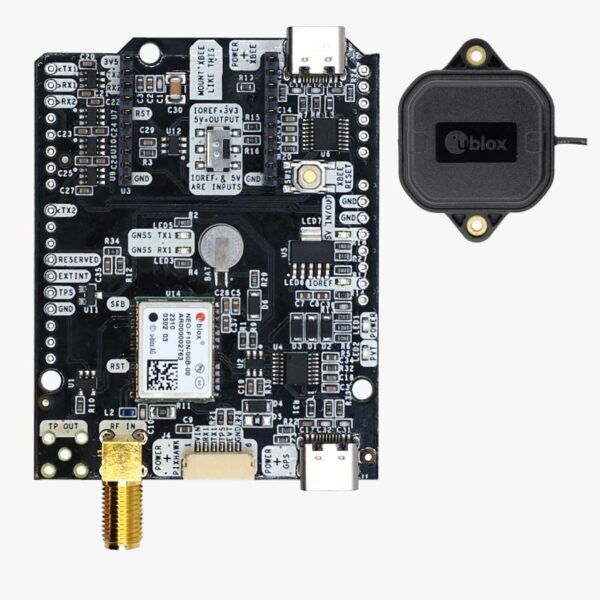

This standalone set of dual band (L1/L5) GNSS board based on u-blox NEO-F10N + u-blox ANN-MB1-00 antenna is everything that you need to achieve submeter level accuracy and evaluate dual band (L1/L5) GNSS technology at the most affordable cost.

simpleGNSS Pro (NEO-F10N) allows you to evaluate solid sub-meter dual band (L1/L5) GNSS positioning technology, both in rural and urban environments. It’s based on u-blox NEO-F10N and can be used standalone. Or connected with Arduino, Ardupilot / Pixhawk (JST connector), Raspberry Pi, Nvidia, STM32 and ESP32 platforms, as a shield. It can provide up to 10 positions every second.

It is fully compatible with Arduino, STM32 Nucleo, Raspberry Pi, Nvidia Jetson, ROS and Pixhawk / Ardupilot.

More details are available in the Specifications and Documentation tabs.

Good to know:
– This product is recommended if you want to evaluate u-blox NEO-F10N

AS-STARTKIT-BASICGNSS-L1L5-NH-00
Specifications

NEO-F10N features

  • Sub meter level precision
    • <1.5m in standalone mode
    • <0.9m standalone with SBAS coverage
  • Update rate
    • Default: 1Hz
    • With maximum performance: up to 8Hz
    • With reduced performance: up to 10Hz
  • Multi band: L1, L5 support
  • Multifrequency and Multiconstellation:
    • GPS: L1C/A L5
    • GLONASS: L1OF
    • Galileo: E1-B/C E5a
    • BeiDou: B1C B2I
    • NavIC: SPS-L5
    • QZSS:  L1Sb
    • SBAS: WAAS, EGNOS, MSAS, GAGAN and SouthPan
  • Start-up times:
    • First position fix: 27 seconds (cold), 2 seconds (hot)
  • Operating temperature Range: -40 to +85 deg С
  • Documentation: RED, RoHS, UKCA
Documentation
Start here:
User Guide Datasheet Request CAD model

Certifications:
Accessories:
