OEM Survey Tripleband GNSS Antenna

SKU: AS-ANT3B-OEMSUR-L1L2L5-02SMA-00

99,00€

Availability: In stock

	2 years worldwide warranty
	Expected delivery to : September 19 - September 23
	This product has quantity discounts available:
	<50 units	99,00€
	>=50 units	Contact us for special pricing
	>500 units	Contact us for special pricing
	Got any questions? Contact us! - a real human (not AI) will answer in <24 hours!

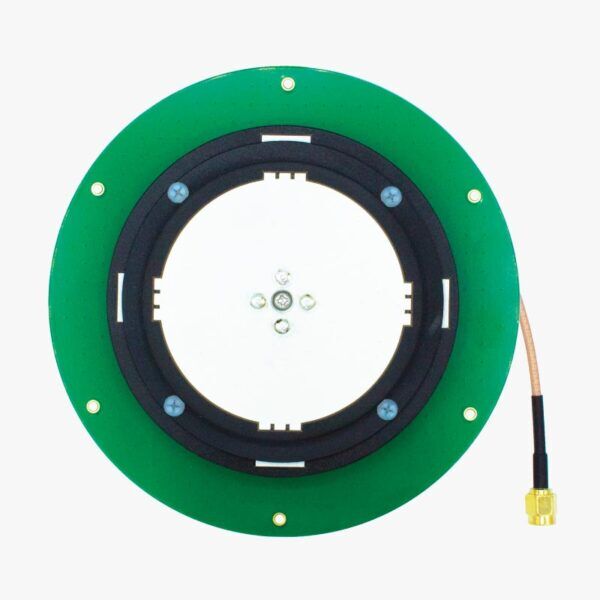

OEM Survey tripleband GNSS antenna receiving L1/L2/L5 in OEM format for integrators, with 20cm cable terminated in SMA male connector.

Good to know:
– Compatible with all simpleRTK2B and simpleRTK3B boards as well as any other multiband GNSS receiver in the market.
– Bulk pricing starting 50 units

Includes:
– RTK tripleband GNSS antenna with 20cm cable with SMA male connector

Specifications

OEM Survey antenna
Antenna element

Supported positioning signal bands:
- GPS: L1, L2, L5
- GLONASS: G1, G2, G3
- BeiDou: B1, B2, B3
- Galileo: E1, E5, E6
- QZSS: L1, L2
- Navic: L5
- SBAS: WAAS, EGNOS, MSAS, GAGAN and SouthPAN
Polarization: RHCP
Peak gain: 5dBi
Axial Ratio @ zenith: <3dB
Azimuth Coverage: 360 degrees
Impedance: 50 ohm
Phase center error: ±3mm

Electrical

Supply voltage: 3-5.5V
Typical supply current @ 3V: 50mA
Average LNA gain: 40dB
Maximum Noise Figure: 1.5dB
Maximum VSWR: 2

Mechanical

Maximum length: 130mm
Weight: 250g
Mounting style: 6x3.2mm holes
Connector: SMA Male
Cable length: 20cm

Environmental

Operating Temperature: -40 to +85°C
Storage Temperature: -40 to +85°C
IP Rating: N/A
RoHS: Yes
