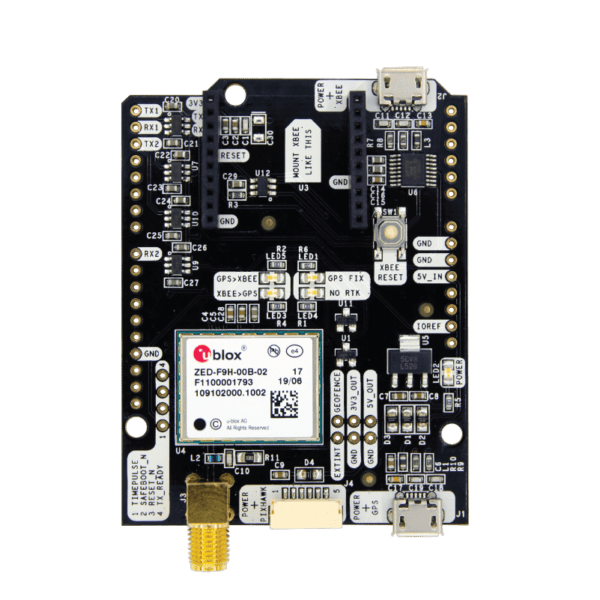

simpleRTK2B-F9H

165$

In stock

Includes:

– 1 simpleRTK2B-F9H board.
This board doesn’t work standalone, you need to connect it to another simpleRTK2B or simpleRTK2Blite configured as moving base.

SKU: RTK003 Category:

Description

simpleRTK2B-F9H is an evaluation board that when connected to a simpleRTK2B or simpleRTK2Blite, allows you to easily test RTK Heading functionality. It’s based on u-blox ZED-F9H module and is fully compatible with Arduino and STM32 Nucleo platforms, as a shield.

Check out simpleRTK2B-F9H page to learn more.

Good to know:
– This module only outputs heading and the normalized relative position vector in UBX format. This module doesn’t output position, and also not absolute relative position to the base.
– This module doesn’t work standalone. You need another simpleRTK2B or simpleRTK2Blite configured as moving base to make it work.
– This product is compatible but doesn’t include multiband GNSS antenna, which is necessary to use the product.
– The module will not give good performance with a standard GNSS antenna, requires a multiband one.
– This board is recommended if you want to test u-blox ZED-F9H performance.

Additional information

Weight 0.1 kg
Dimensions 10 × 10 × 5 cm
Arduino header options:

Without headers, Headers soldered (+26€)
