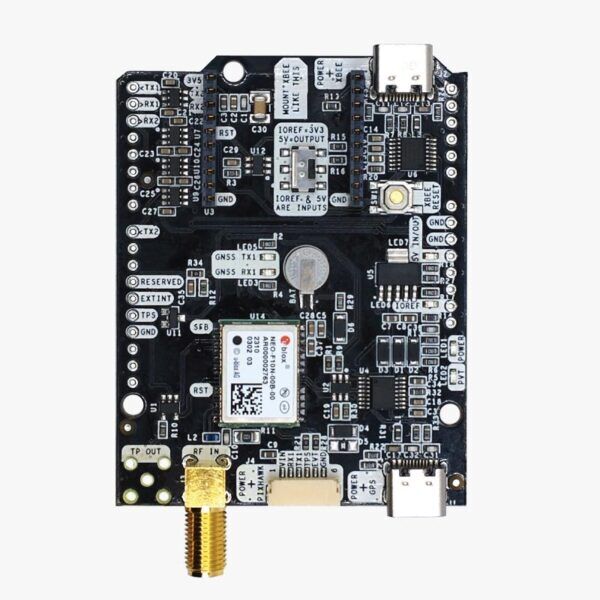

NEO-F10N simpleGNSS Pro top
simpleGNSS_Pro_scale
NEO-F10N simpleGNSS Pro bottom
pinout-simpleGNSS_Pro-R00
NEO-F10N simpleGNSS Pro top
simpleGNSS_Pro200x200
simpleGNSS_Pro_scale
NEO-F10N simpleGNSS Pro bottom
pinout-simpleGNSS_Pro-R00

simpleGNSS Pro

SKU: AS-GNSS-F10N-L1L5

From 58,00 From 49,00

This product comes with 2 years worldwide warranty

This product has quantity discounts available:
Units Price per unit
<50
49,00
>=50 Contact us for special pricing
>500 Contact us for special pricing

Includes:
– 1 simpleGNSS Pro board (NEO-F10N)

simpleGNSS Pro allows you to evaluate sub-meter dual band (L1/L5) GNSS positioning technology. It’s based on u-blox NEO-F10N and can be used standalone. Or connected with Arduino, Ardupilot / Pixhawk (JST connector), Raspberry Pi, Nvidia, STM32 and ESP32 platforms, as a shield. It can provide up to 10 positions every second.

This board is ideal for vehicle and object tracking, especially if you need to improve the GPS accuracy from the traditional 2-3 meters to sub 1 meter.

More details available in the Specification and Documentation tabs.

Good to know:
– This product doesn’t do RTK.
– This product is compatible but doesn’t include multiband GNSS antenna, which is necessary to use the product.
– The module will not give best performance with any GNSS antenna, for optimum performance we recommend our Budget Survey Tripleband or ANN-MB1 antenna.
– This board is recommended if you want to test u-blox NEO-F10N performance.
– The onboard XBee socket can be used to expand functionality with Plugin accessories (MR/LR/XLR radios, Bluetooth, Ethernet, WiFi, RS232, Canbus, L-Band, 4G/3G/2G).
– Compatible with Ardusimple plastic case
– Ardupilot compatible via JST-GH standard connector
Timepulse output and Event input
– This product is a cheaper alternative including better accuracy to boards with NEO-M9N

AS-GNSS-F10N-L1L5-NH-00 AS-GNSS-F10N-L1L5-HS-00

Specification

NEO-F10N features
  • Sub meter level precision
    • <1.5m in standalone mode
    • <0.9m standalone with SBAS coverage
  • Update rate
    • Default: 1Hz
    • With maximum performance: up to 8Hz
    • With reduced performance: up to 10Hz
  • Multi band: L1, L5 support
  • Multifrequency and Multiconstellation:
    • GPS: L1C/A L5
    • Galileo: E1-B/C E5a
    • BeiDou: B1C B2I
    • NavIC: SPS-L5
    • QZSS:  L1Sb
    • SBAS: WAAS, EGNOS, MSAS, GAGAN and SouthPan
  • Start-up times:
    • First position fix: 27 seconds (cold), 2 seconds (hot)
  • Operating temperature Range: -40 to +85deg
  • Documentation: RED, RoHS, UKCA
