Radio module eXtra Long Range (XLR)

SKU: AS-XBEE-XLR

LR radio options

161,00€

Availability:

In stock

This interactive table will help you choose the right LR/XLR radio options, depending on the frequencies available in your country.
You can also check this map.

Choose your country/region:

Country/Region	Free frequencies	LR radio options	XLR radio options
- - -	-	-	-

After checking the frequencies in the interactive table don't forget to pick manually the preferred LR/XLR radio options in the above select box!

*We have created this table on a best effort basis but we are not responsible of possible mistakes or changes in spectrum legislation.
You can contact us if you find any error.

	2 years worldwide warranty
	Expected delivery to : September 15 - September 17
	This product has quantity discounts available:
	<50 units	161,00€
	>=50 units	Contact us for special pricing
	>500 units	Contact us for special pricing
	Got any questions or requests? Contact us! - a real human (not AI) will answer within 24 hours!

Description

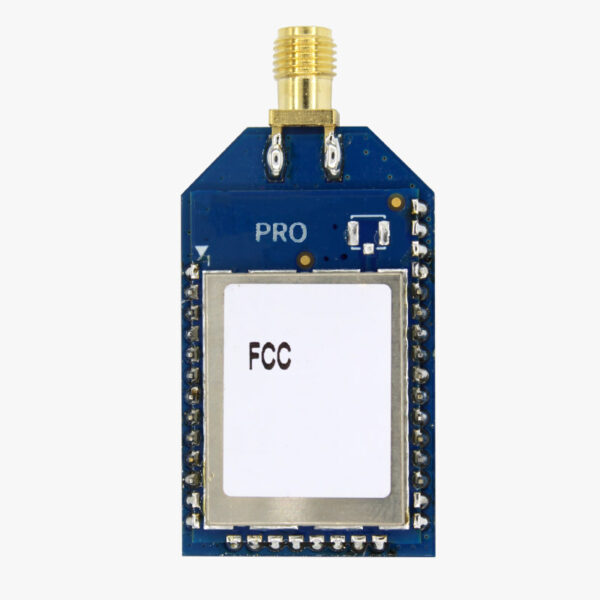

The eXtra Long Range version of our Radio Module. Based on Digi XBee PRO SX series, but on through hole format and with SMA connector. With a configuration optimized for sending RTK corrections over the air.

With this radio module you will be able to send RTK corrections between 50 and 60 km in both point-to-point and point-to-multipoint configurations. This distance will depend on the region of use, subject to local regulations.

Good to know:
– Compatible with all ArduSimple products, except simpleRTK2B Budget and simpleRTK2B Lite.
– The radio is sent pre-configured at 115’200bps and will connect automatically to other XLR/LR radios from the same region.
– If you have an LR kit already, just remove the LR radios, plug the XLR radios, and you are good to go!
– The radio is sent pre-configured at 100mW output power. Can be increased by user to 500mW, and up to 1W if mounted on a suitable XBee socket. Contact us if you have questions.
– The radio comes without antenna, remember to add our dipole antenna or vehicle mount antenna to the cart.

Includes:
– 1 eXtra Long Range radio module
This product comes without antenna, remember to add our dipole antenna or vehicle mount antenna to the cart.

Specifications

Interfaces

UART
RS232 (requires accessory)

LR radio features

Communications: Bi-directional Point-to-Point or Unidirectional Point-to-Multipoint (unlimited rovers)
Antenna type: external passive
Antenna connector (radio side): SMA female
Frequency:
- Europe: 863-870 MHz
- North America: 902-907 + 915-927 MHz (configurable)
- Australia: 915-927 MHz
- New Zealand: 917-927 MHz
Output power: 20 mW (13 dBm)
Range in line of sight:
- Urban: 2.5 km
- Rural: 5 km
- Rural with complete RF line of sight: 10 km
Operating temperature Range: -40 to +85degC
Documentation: RED, RoHS, FCC, IC, ACMA, RSM
