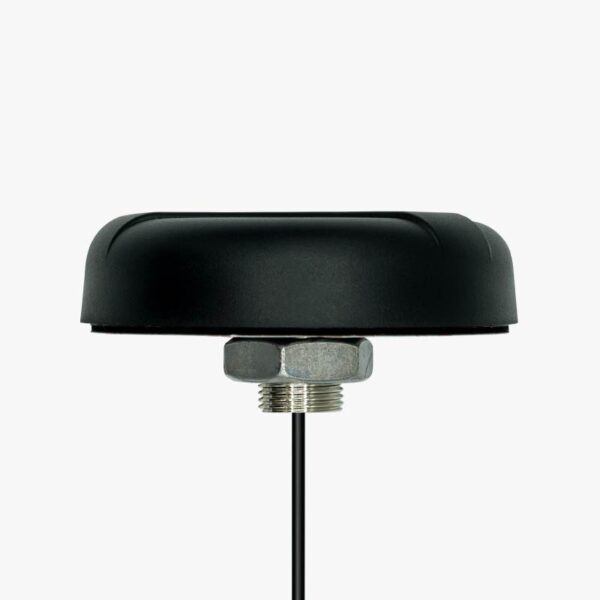

Bolt Mount Dual Band GNSS Antenna

SKU: AS-ANT2B-BOLT-L1L2-10SMA-00
106,00

Availability: In stock

payment methods
2 years worldwide warranty
We ship from Spain. Expected delivery to : November 3 - November 5
This product has quantity discounts available:
<50 units 106,00
>=50 units Contact us for special pricing
>500 units Contact us for special pricing
Got any questions? Contact us! - a real human (not AI) will answer in <24 hours!
Cable extender 5m
SMA antenna RF cable extender - 5 meter
In case you need a longer cable than the one included with the antenna
25,00
Description

Bolt mount Dual Band (L1, L2/E5b) active GPS/GNSS antenna with TNC connector and 1m cable terminated with SMA male. Supports GPS, GLONASS, Galileo, and BeiDou. Perfect match for ZED-F9P boards.

Good to know:
– Compatible with all ArduSimple GNSS and RTK boards as well as any other multiband GNSS receiver in the market.

AS-ANT2B-BOLT-L1L2-10SMA-00 ASB-ANT2B-BOLT-L1L2-10SMA-00

Includes:
– Bolt Mount Dual Band GNSS Antenna

Specifications
Bolt Mount Dual Band GNSS Antenna
Antenna element
  • Supported positioning signal bands:
    • GPS: L1, L2
    • GLONASS: G1, G2
    • BeiDou: B1, B2b, B3
    • Galileo: E1, E5b
    • QZSS: L1, L2
    • SBAS: WAAS, EGNOS, MSAS, GAGAN and SouthPAN
  • Polarization: RHCP
  • Peak gain: 1.2dBi (without ground plane)
  • Axial Ratio @ zenith: <3dB
  • Azimuth Coverage: 360 degrees
  • Impedance: 50 ohm
Electrical
  • Supply voltage: 1.8-5V
  • Typical supply current @ 3V: 20mA
  • Average LNA gain: 25dB
  • Maximum Noise Figure: 4.2dB
  • Maximum VSWR: 2
Mechanical
  • Maximum length: 95mm
  • Weight: 250g
  • Mounting style: M20 thread with nut (included)
  • Cable length: 1 meter
  • Connector: SMA male
Environmental
  • Operating Temperature: -20 to +65°C
  • Storage Temperature: -30 to +75°C
  • IP Rating: IP67
  • RoHS: Yes
Documentation
Start here:
User Guide Datasheet Request CAD model
