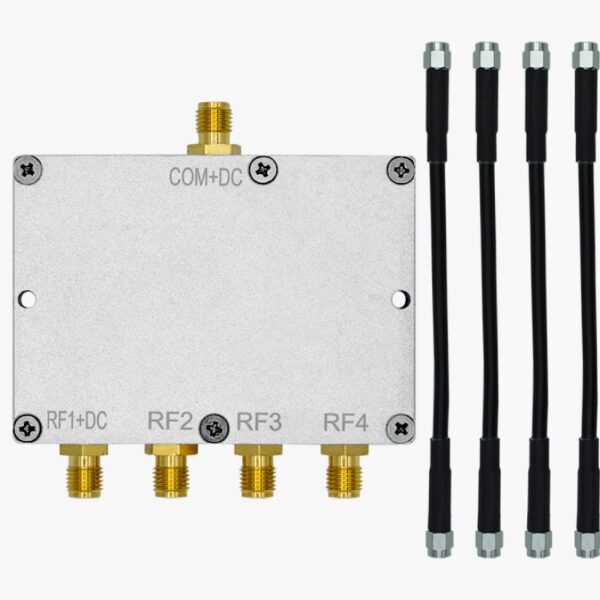

1-to-4 GPS/GNSS Antenna Signal Splitter

The GPS/GNSS Antenna Signal Splitter is a 1-antenna-to-4-receivers GPS/GNSS signal splitter. It is passive so it doesn’t require any additional power supply. Ideal for sharing a GPS antenna between two SMA receivers to compare them or to have redundancy. The Splitter has 5 ports:

• COM (Common): Provides connection for the antenna.
• RF1: Connection for the receiver 1, that should always be connected. This receiver will receive the signal from the antenna, and will also be providing power to the antenna.
• RF2: Connection for the receiver 2. This receiver will not provide power to the antenna, but will receive the signal from the antenna.
• RF3: Connection for the receiver 3. This receiver will not provide power to the antenna, but will receive the signal from the antenna.
• RF4: Connection for the receiver 4. This receiver will not provide power to the antenna, but will receive the signal from the antenna.

Includes:
– 1x RF Splitter
– 4x SMA-male to SMA-male 15cm pigtail
