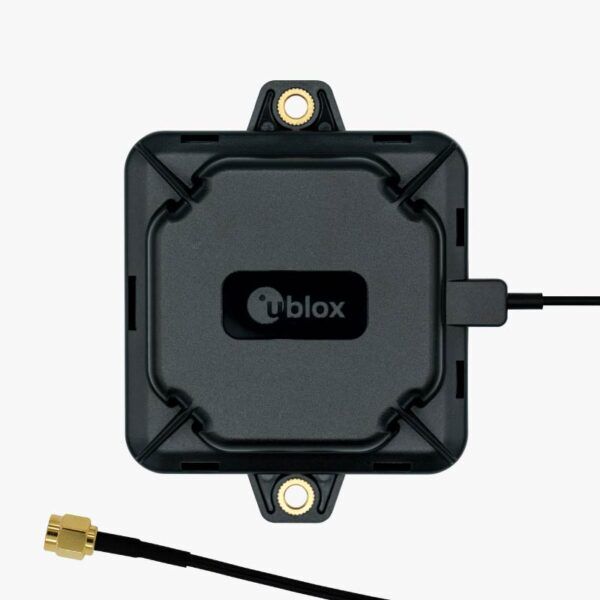

u-blox GNSS Tripleband + L-band antenna ANN-MB2-00

SKU: AS-ANT3B-ANNMB2-L1256-50SMA-00
61,00

Availability: In stock

payment methods
2 years worldwide warranty
Expected delivery to : September 22 - September 24
This product has quantity discounts available:
<50 units 61,00
>=50 units 55,50 Click here for bulk orders
>500 units Contact us for special pricing
Got any questions? Contact us! - a real human (not AI) will answer in <24 hours!
ground plate for GNSS antenna
Ground Plate for GNSS antenna
Improve performance, directivity, noise immunity of your GPS antenna
8,20
Description

u-blox ANN-MB2-00 full band (L1, L2, L5, Lband) active GNSS antenna with excellent price performance ratio and IP67 protection. Supports GPS, GLONASS, Galileo, and BeiDou. Perfect match for u-blox X20, Septentrio Mosaic-X5 and Unicore UM980 boards.

Good to know:
– Compatible with all ArduSimple boards as well as any other multiband GNSS receiver in the market.
– Available with custom cable length or different connector (Fakra, uFL, etc)
– Bulk pricing starting 50 units

AS-ANT3B-ANNMB2-L1256-50SMA-00 ASB-ANT3B-ANNMB2-L1256-50SMA-00

Includes:
– RTK external GNSS antenna with 5m cable with SMA connector

Specifications
ANN-MB2
Antenna element
  • Supported positioning signal bands:
    • GPS: L1, L2, L5
    • GLONASS: G1, G2, G3
    • BeiDou: B1, B2, B3
    • Galileo: E1, E5, E6
    • QZSS: L1, L2
    • Navic: L5
    • L-Band: L6
    • SBAS: WAAS, EGNOS, MSAS and GAGAN
  • Frequency range:
    • 1535-1602 MHz
    • 1166-1285 MHz
  • Polarization: RHCP
  • Peak gain: 4.5dBi (without ground plane)
  • Axial Ratio @ zenith: <3dB
  • Azimuth Coverage: 360 degrees
  • Impedance: 50 ohm
Electrical
  • Supply voltage: 3-5V
  • Typical supply current @ 3V: 15mA
  • Average LNA gain: 31dB
  • Maximum Noise Figure: 3dB
  • Maximum VSWR: 2
Mechanical
  • Maximum length: 109mm
  • Weight: 260g
  • Mounting style: magnetic base or 2x5.5mm holes
  • Cable length: 5 meters
  • Connector: SMA male
Environmental
  • Operating Temperature: -40 to +85°C
  • Storage Temperature: -40 to +85°C
  • IP Rating: IP67
  • RoHS: Yes
Documentation
Start here:
User Guide Datasheet Download CAD model
