Budget Survey Tripleband GNSS Antenna

SKU: AS-ANT3B-BUDSUR-L1L2L5-25SMA-00

Perfect starting point for your RTK project. Survey grade performance for projects with limited budget.

98,00€

Availability: In stock

	2 years worldwide warranty
	We ship from Spain. Expected delivery to :

	This product has quantity discounts available:
	<50 units	98,00€
	>=50 units	83,60€ Click here for bulk orders
	>500 units	Contact us for special pricing
	Got any questions? Contact us! - a real human (not AI) will answer in <24 hours!

Description

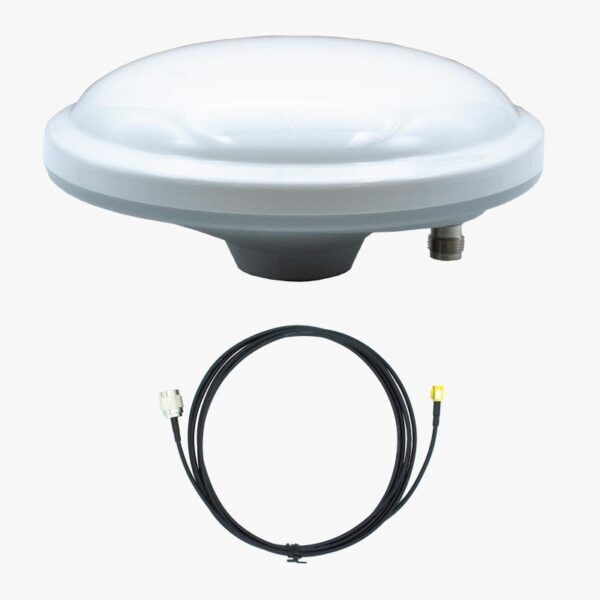

Survey grade and low cost Triple band (L1, L2, L5) active GNSS antenna with TNC connector and 2.5m cable terminated with SMA male. Supports GPS, GLONASS, Galileo, and BeiDou. Perfect match for Septentrio Mosaic-X5, Unicorecomm UM980 and u-blox X20P boards.

Good to know:
– Compatible with all ArduSimple GNSS and RTK boards as well as any other multiband GNSS receiver in the market.

Includes:
– Budget Survey GNSS Tripleband antenna (IP66)
– 2.5m pigtail cable with TNC to SMA connector

Specifications

3B Survey Budget antenna
Antenna element

Supported positioning signal bands:
- GPS: L1, L2, L5
- GLONASS: G1, G2, G3
- BeiDou: B1, B2, B3
- Galileo: E1, E5
- QZSS: L1, L2
- Navic: L5
- SBAS: WAAS, EGNOS, MSAS, GAGAN and SouthPAN
Polarization: RHCP
Peak gain: 5dBi
Axial Ratio @ zenith: <3dB
Azimuth Coverage: 360 degrees
Impedance: 50 ohm
Phase center error: ±3mm

Electrical

Supply voltage: 3-5.5V
Typical supply current @ 3V: 50mA
Average LNA gain: 40dB
Maximum Noise Figure: 1.5dB
Maximum VSWR: 2

Mechanical

Maximum length: 147mm
Weight: 390g
Mounting style: Magnetic base (requires accessory) or 5/8” x 11TPI thread
Connector: TNC female
Cable length: Includes 2.5 meter cable terminated in SMA male

Environmental

Operating Temperature: -40 to +85°C
Storage Temperature: -40 to +85°C
IP Rating: IP66 (excluding air vent in screw hole, which can be sealed when installed)
RoHS: Yes
