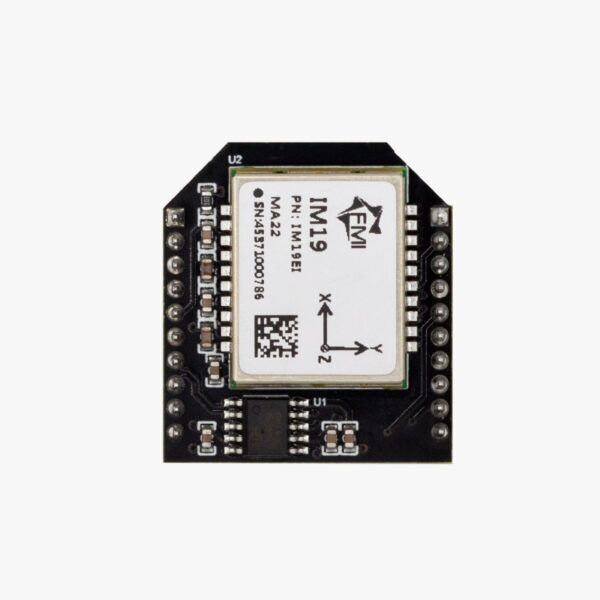

Tilt Compensation plugin for RTK Smart Antenna
SKU: AS-IMU-IM19-00
Add tilt compensation to your RTK Smart Antenna or to your custom project to maximize your surveying efficiency.
 | 2 years worldwide warranty | |
| We ship from Spain. Expected delivery to : | |
| This product has quantity discounts available: | |
| <50 units | 276€ | |
| >=50 units | Contact us for special pricing | |
| >500 units | Contact us for special pricing | |
| Got any questions? Contact us! - a real human (not AI) will answer in <24 hours! | |
Description
With the Tilt Compensation plugin you can take measurements with the surveying pole tilted up to 60 degrees.
By not needing to level the pole at each measurement, you can speed up point collection to another level.
This plugin is based on the popular Feymani IM19 module.
Good to know:
- Integrates seamlessly into the RTK Smart Antenna, just plug and play requiring no configuration
- Old RTK Smart Antenna units can be retrofitted with this plugin
- Accuracy of 1cm for up to 30deg tilt angle, 2cm up to 60deg tilt angle
- Extreme fast initialization
- Self-calibration by simply moving the unit back and forth for 5 seconds
- Long term heading stability
Includes:
- 1 Tilt Compensation plugin
Specifications
Interfaces:
- UARTx2
- Timepulse
- Acceleration Range: ±8g
- Gyroscope Range: ±1000deg/s
- Dynamic Attitude Accuracy: ±0.025deg (1σ)
- Dynamic Heading Accuracy: ±0.25deg (1σ)
- Accelerometer Bias Accuracy: ±5mg
- Gyroscope Bias Accuracy: ±0.2deg/s
- Accuracy: RTK + 0.3mm/°tilt(0~180°,1σ）, with 200cm straight pole
- Tilt Initialization Time: 1 second (95%)
