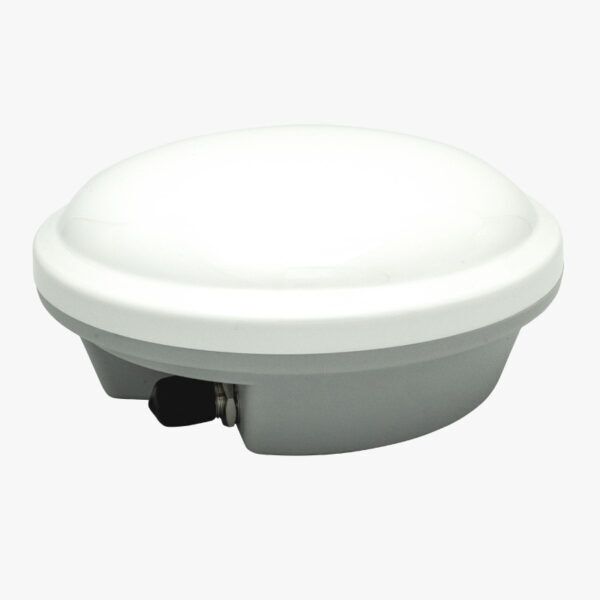

Magnet Mount Survey Tripleband GNSS Antenna
SKU: AS-ANT3B-MAGSUR-L1L2L5-25SMA-00
99,00€
Availability: Subcomponents in stock, assembly time 10 days
This product comes with 2 years worldwide warranty
This product has quantity discounts available:
| Units | Price per unit |
|---|---|
| <50 | 99,00€ |
| >=50 | Contact us for special pricing |
| >500 | Contact us for special pricing |
Includes:
– Magnet Mount Survey GNSS Tripleband antenna
Survey grade and low cost Triple band (L1, L2, L5) active GNSS antenna with TNC connector. Both with thread mount and magnetic mount for rugged installation and easy alignment. Supports GPS, GLONASS, Galileo, and BeiDou.
Good to know:
– Compatible with all ArduSimple GNSS and RTK boards as well as any other multiband GNSS receiver in the market.
– Drop in replacement for Trimble AG25 antenna
– This antenna comes without cable
Specifications
Magnet Mount Tripleband antennaAntenna element
- Supported positioning signal bands:
- GPS: L1, L2, L5
- GLONASS: L1, L2, L5
- BeiDou: B1, B2, B3
- Galileo: E1, E5a, E5b, E6
- QZSS: L1, L2, L5, LEX
- SBAS: WAAS, EGNOS, GAGAN and MSAS
- MSS: OmniSTAR, Trimble RTX
- Frequency range:
- 1559-1606 MHz
- 1197-1249 MHz
- Supply voltage: 3.4-12 V
- Typical supply current @ 3V: 20mA
- Average LNA gain: 48dB
- Maximum length: 162mm
- Weight: 570g
- Mounting style: Magnetic mounts (3) or 5/8” x 11TPI thread
- Connector: TNC Female
- Operating Temperature: -40 to +85°C
- Storage Temperature: -40 to +85°C
- IP Rating: IP67
- RoHS: Yes
Documentation
Start here:- Get started with the User Guide
Datasheet- We didn't find time to create this 3D CAD model, contact us to request it
