M.2 u-blox ZED-X20P

SKU: AS-RTK-M2-X20P-L1256-00
249,00
Availability: In stock
payment methods
2 years worldwide warranty
We ship from Spain. Expected delivery to
This product has quantity discounts available:
<50 units 249,00
>=50 units Contact us for special pricing
>500 units Contact us for special pricing
Got any questions? Contact us! - a real human (not AI) will answer in <24 hours!
SMA uFL 0.1m pigtail
uFL to SMA antenna cable
Use this cable to connect your SMA antenna
13,00
Description

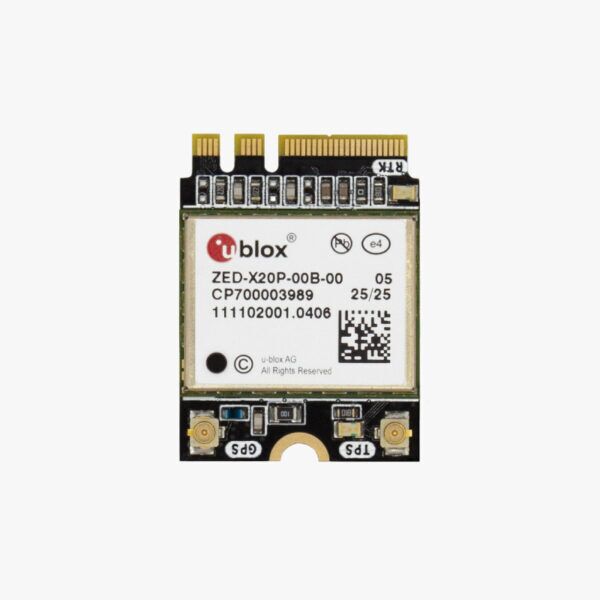

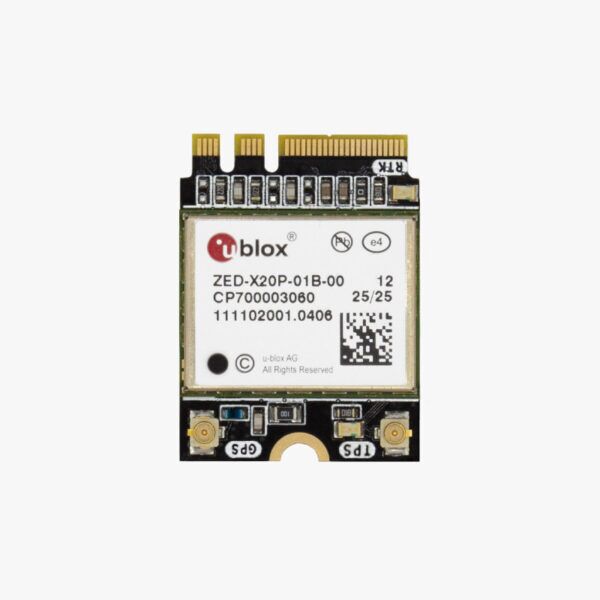

Compact pluggable M.2 card based on u-blox ZED-X20P.

Bring low cost high precision RTK GNSS positioning to your M.2 socket platforms thanks to ZED-X20P and this board fully compatible with M.2 2230 Key A and Key E sockets (Part of NGFF, Next Generation Form Factor). For example, you can easily add RTK to your Asus Tinkerboard or the NVIDIA Jetson Xavier NX.

Good to know:
– You will need a uFL to SMA pigtail to connect it to our Multiband GPS/GNSS antennas.
– Both GPS antenna input and Timepulse output have a uFL connector.
– Bulk pricing starting 50 units

AS-RTK-M2-X20P-L1256-00 ASB-RTK-M2-X20P-L1256-00

Includes:
– 1 M.2 board with u-blox ZED-X20P module

Specifications
ZED-X20P features
  • Centimeter level precision:
    • <1cm with a base station up to 35km
    • <1cm with NTRIP up to 35km
    • <4cm with SSR corrections
    • <1.5m in standalone mode
    • <0.9m standalone with SBAS coverage
  • Update rate
    • Default: 1Hz
    • With maximum performance: up to 25Hz
  • Multi band: L1, L2, L5 and L6 support
  • Multifrequency and Multiconstellation:
    • GPS: L1C/A L2C L5
    • Galileo: E1-B/C E5a E6
    • BeiDou: B1I B1C B2a B3I
    • QZSS: L1C/A L2C/B L2C L5 L6
    • Navic: SPS-L5
    • SBAS: WAAS, EGNOS, MSAS, GAGAN and SouthPAN
  • Start-up times:
    • First position fix: 25 seconds (cold), 2 seconds (hot)
    • Warm start: <10s
    • First RTK fix: 35 seconds (cold)
  • RAW data output in UBX format
  • Base and Rover functionality
  • Operating temperature Range: -40 to +85degC
  • Certification: CE
  • Documentation: RED, RoHS
