AgOpenGPS All-in-One (AIO) Board – RTK Items Set (Unicore UM982)

SKU: AS-STARTKIT-AOGPS-AIOUM982-SMA-00
324,00€
Availability: In stock
In stock!
payment methods
2 years worldwide warranty
We ship from Spain. Expected delivery to
:
This product has quantity discounts available:
<50 units 324,00€
>=50 units Contact us for special pricing
>500 units Contact us for special pricing
Got any questions? Contact us! - a real human (not AI) will answer in <24 hours!
Description

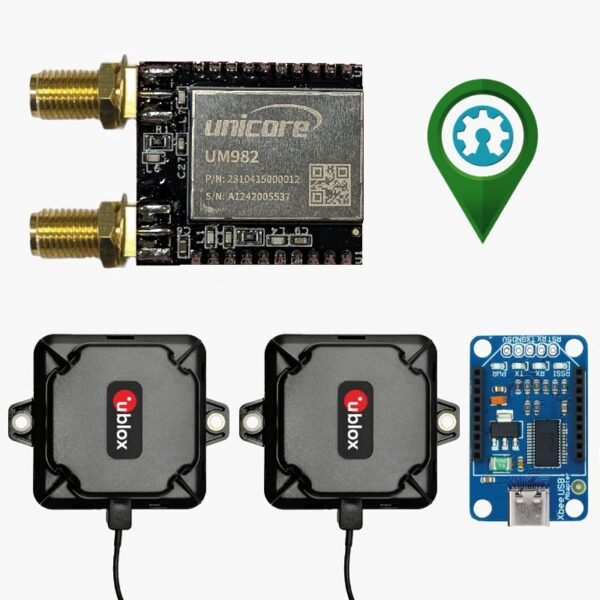

GPS/RTK items for AgopenGPS board AIO v4.5 Micro. it includes Unicore UM982 receiver, ANN-MB2 antenna and carrier board for easy configuration.

This is not the PCB Board, it’s the set of items related with the GPS position: RTK module with dual antenna input and RTK antennas.

Includes:
– 1 simpleRTK3B Micro board with assembled Unicore UM982 and dual SMA
– 2 u-blox GNSS Tripleband + L-band antenna ANN-MB2-00
– 1 USB-C Carrier Board for XBee Plugins for easy configuration from PC

AS-STARTKIT-AOGPS-AIOUM982-SMA-00 ASB-STARTKIT-AOGPS-AIOUM982-SMA-00
Specifications
UM982 features
  • Millimeter level precision:
    • <1cm with a base station up to 35km
    • <1cm with NTRIP up to 35km
    • <1.2m in standalone mode
    • <0.6m standalone with SBAS coverage
  • Update rate
    • Default: 1Hz
    • With maximum performance: up to 20Hz
  • Dual antenna
    • Heading accuracy: 0.14deg with 1 meter baseline
    • With maximum performance: up to 50Hz
  • Multi band: L1, L2 and L5 support, 1408 hardware channels
  • Multifrequency and Multiconstellation:
    • GPS: L1C/A L1PY L2C L2PY L5
    • GLONASS: L1CA L2CA L2P L3 CDMA
    • Galileo: E1 E5a E5b E5 E6 HAS
    • BeiDou: B1I B2I B3I
    • QZSS: L1C/A L2C L5
    • Navic: L5
    • SBAS: WAAS, EGNOS, MSAS, GAGAN, SDCM (L1)
  • Start-up times:
    • Cold start: <35s
    • Warm start: <10s
    • Re-acquisition: 1s
  • Protocols
    • Unicore Format
    • NMEA 0183
    • RTCM v3
  • Base and Rover functionality
  • Operating temperature Range: -40 to +85deg
  • Certification: CE
  • Documentation: RED, RoHS
ANN-MB2
Antenna element
  • Supported positioning signal bands:
    • GPS: L1, L2, L5
    • GLONASS: G1, G2, G3
    • BeiDou: B1, B2, B3
    • Galileo: E1, E5, E6
    • QZSS: L1, L2
    • Navic: L5
    • L-Band: L6
    • SBAS: WAAS, EGNOS, MSAS and GAGAN
  • Frequency range:
    • 1535-1602 MHz
    • 1166-1285 MHz
  • Polarization: RHCP
  • Peak gain: 4.5dBi (without ground plane)
  • Axial Ratio @ zenith: <3dB
  • Azimuth Coverage: 360 degrees
  • Impedance: 50 ohm
Electrical
  • Supply voltage: 3-5V
  • Typical supply current @ 3V: 15mA
  • Average LNA gain: 31dB
  • Maximum Noise Figure: 3dB
  • Maximum VSWR: 2
Mechanical
  • Maximum length: 109mm
  • Weight: 260g
  • Mounting style: magnetic base or 2x5.5mm holes
  • Cable length: 5 meters
  • Connector: SMA male
Environmental
  • Operating Temperature: -40 to +85°C
  • Storage Temperature: -40 to +85°C
  • IP Rating: IP67
  • RoHS: Yes
Documentation
Start here:
Datasheet Request CAD model
