Ultralight Dipole Tripleband GNSS Antenna

SKU: AS-ANT3B-ULIGHT-L1L2L5-01SMA-00
199,00

Availability: In stock

payment methods
2 years worldwide warranty
We ship from Spain. Expected delivery to : November 3 - November 5
This product has quantity discounts available:
<50 units 199,00
>=50 units 173,00 Click here for bulk orders
>500 units Contact us for special pricing
Got any questions? Contact us! - a real human (not AI) will answer in <24 hours!

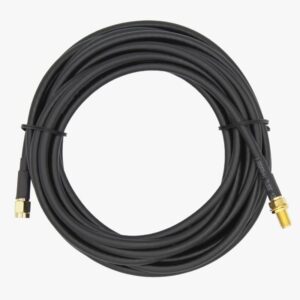

Cable extender 5m
SMA antenna RF cable extender - 5 meter
In case you need a longer cable than the one included with the antenna
25,00
Description

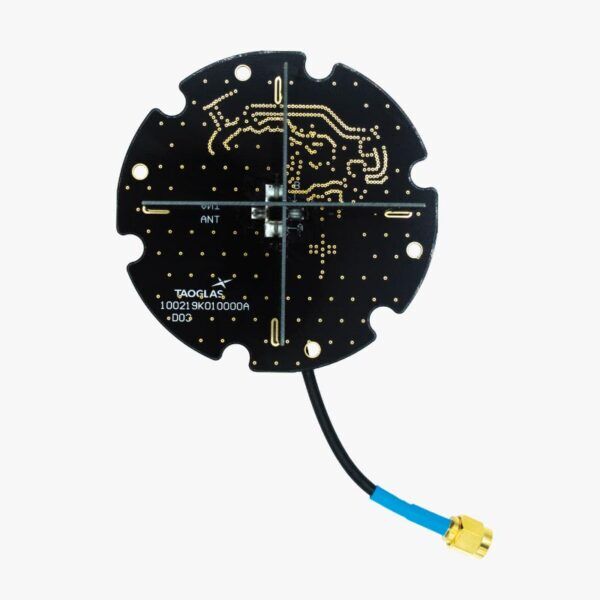

PCB printed all band L1/L2/L5/L6 active dipole GNSS antenna, with a weight below 7 grams, ideal for lightweight applications.

Good to know:
– Compatible with all simpleRTK boards as well as any other multiband GNSS receivers in the market
– Integrates a SMA-male termination, no cable is needed although you can use our cable extenders
– Bulk pricing starting 50 units

Includes:
– RTK multiband GNSS antenna with 10cm cable with SMA male connector

Specifications
  • Supported positioning signal bands:
    • GPS/QZSS (L1/L2)
    • GPS/QZSS/IRNSS (L5)
    • QZSS (L6)
    • Galileo (E1/E5a/E5b/E6)
    • GLONASS (G1/G2/G3)
    • BeiDou (B1/B2a/B2b/B3)
  • Excellent out-of-band rejection
  • Cable: 100mm RG-174
  • Connector: SMA(M) Straight
  • CE Certified
  • Dimensions: Ø75 x 42mm
  • RoHS & Reach Compliant
Documentation
Start here:
User Guide Datasheet Request CAD model

    Certifications:
