Mini Survey Tripleband GNSS Antenna (IP66)

SKU: AS-ANT3B-MINISUR-L1L2L5-25SMA-00
In stock!

106,00€

Availability: In stock

This product comes with 2 years worldwide warranty

This product has quantity discounts available:
Units Price per unit
<50
106,00€
>=50 Contact us for special pricing
>500 Contact us for special pricing

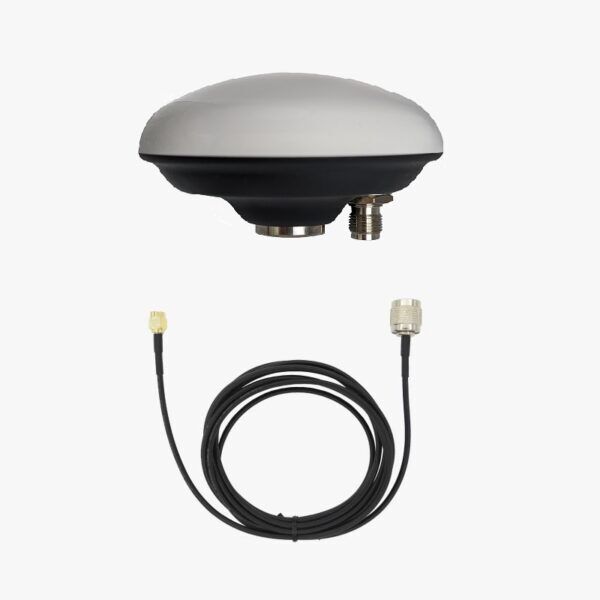

Includes:
– Mini Survey GNSS Tripleband antenna (IP66)
– 2.5m pigtail cable with TNC to SMA connector

Compact Survey tripleband GNSS antenna receiving L1/L2/L5, with TNC connector and 2.5m cable terminated with SMA male. Supports GPS, GLONASS, Galileo, and BeiDou. Perfect match for u-blox X20, Septentrio Mosaic-X5 and Unicorecomm UM980 boards.

Good to know:
– Compatible with all simpleRTK2B and simpleRTK3B boards as well as any other multiband GNSS receiver in the market.

AS-ANT3B-MINISUR-L1L2L5-25SMA-00 ASB-ANT3B-MINISUR-L1L2L5-25SMA-00

Specifications

Mini Survey Tripleband GNSS Antenna
Antenna element
  • Supported positioning signal bands:
    • GPS: L1, L2, L5
    • GLONASS: G1, G2, G3
    • BeiDou: B1, B2, B3
    • Galileo: E1, E5
    • QZSS: L1, L2
    • Navic: L5
    • SBAS: WAAS, EGNOS, MSAS, GAGAN and SouthPAN
  • Polarization: RHCP
  • Peak gain: 4dBi
  • Axial Ratio @ zenith: <3dB
  • Azimuth Coverage: 360 degrees
  • Empedance: 50 ohm
  • Phase center error: ±3mm
Electrical
  • Supply voltage: 3-5.5V
  • Typical supply current @ 3V: 55mA
  • Average LNA gain: 40dB
  • Maximum Noise Figure: 2.0dB
  • Maximum VSWR: 2
Mechanical
  • Maximum length: 101mm
  • Weight: 340g
  • Mounting style: Magnetic base (requires accessory) or 5/8” x 11TPI thread
  • Connector: TNC female
  • Cable length: Includes 2.5 meter cable terminated in SMA male
Environmental
  • Operating Temperature: -40 to +85°C
  • Storage Temperature: -40 to +85°C
  • IP Rating: IP66 (excluding air vent in screw hole, which can be sealed when installed)
  • RoHS: Yes

Documentation

Start here:Certifications:
