Compact Helical Tripleband GNSS Antenna
Compact and light all band helical antenna. Ideal for RTK rovers where weight is critical.
 |
2 years worldwide warranty | |
 |
We ship from Spain. Expected delivery to
:
| |
 |
This product has quantity discounts available: | |
| <50 units | 128,00€ | |
| >=50 units | Contact us for special pricing | |
| >500 units | Contact us for special pricing | |
 |
Got any questions? Contact us! - a real human (not AI) will answer in <24 hours! | |

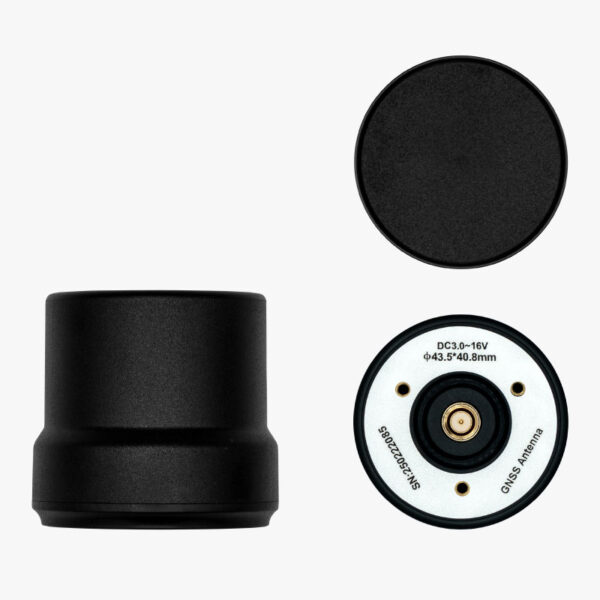

Waterproof and compact tripleband L1/L2/L5 + L-band helical GNSS antenna, with a weight of only 21 grams, ideal for lightweight applications like drones or portable devices.
Good to know:
– Compatible with all simpleRTK3B boards as well as any other multiband GNSS receiver in the market.
– Helical antennas are ideal for GNSS reception in strange attitudes (not always facing the sky).
– Integrates a SMA-male termination, no cable is needed although you can use our cable extenders
– Be aware that if you plan to use the Pixhawk connector in the simpleRTK3B board, the helical antenna will block it, so you will need a cable extender.
– This product is an alternative to Holybro HANT-X623A antenna
Includes:
– RTK tripleband + L-band external helical GNSS antenna with SMA connector
Antenna element
- Supported positioning signal bands:
- GPS: L1, L2, L5
- GLONASS: G1, G2, G3
- BeiDou: B1, B2, B3
- Galileo: E1, E5, E6
- QZSS: L1, L2, L5, L6
- Navic: L5
- L-band: L6
- SBAS: WAAS, EGNOS, MSAS and GAGAN
- Polarization: RHCP
- Peak gain: 1.5dBi
- Axial Ratio @ zenith: <3dB
- Azimuth Coverage: 360 degrees
- Impedance: 50 ohm
- Supply voltage: 3-16V
- Typical supply current @ 3V: 45mA
- Average LNA gain: 33dB
- Maximum Noise Figure: 1.5dB
- Maximum VSWR: 2
- Maximum length: 43.5mm
- Weight: 26g
- Mounting style: direct on SMA connector + 3x M2.5*6
- Connector: SMA male
- Operating Temperature: -40 to +85°C
- Storage Temperature: -40 to +85°C
- IP Rating: IP67
- RoHS: Yes
